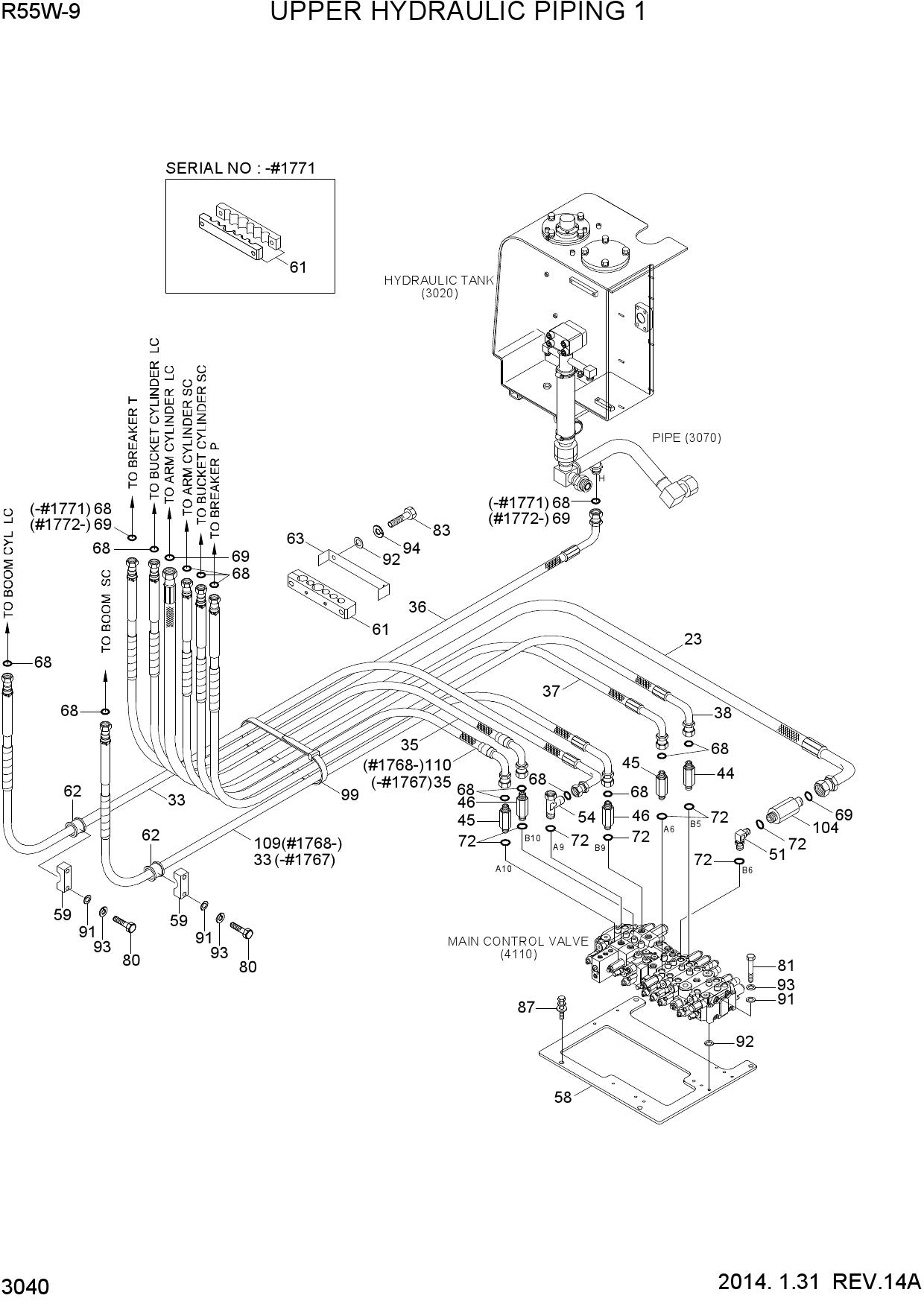

Запчасти для колесных экскаваторов Hyundai R55W-9 UPPER HYDRAULIC PIPING 1
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 23 | 31M9-11760 | HOSE ASSY-ORFS 0X90 | |
| 33 | 31M9-11810 | HOSE ASSY-ORFS 0X90 | |
| 33 | 32M9-11810 | HOSE ASSY-ORFS 0X90 | |
| 35 | 31M9-11830 | HOSE ASSY-ORFS 0X90 | |
| 35 | 32M9-11850 | HOSE ASSY-ORFS 0X90 | |
| 36 | 31M9-11840 | HOSE ASSY-ORFS 0X90 | |
| 36 | 31M9-12840 | HOSE ASSY-ORFS 0X90 | |
| 37 | 31M9-11870 | HOSE ASSY-ORFS 0X90 | |
| 37 | 31M9-12870 | HOSE ASSY-ORFS 0X90 | |
| 37 | 32M9-12810 | HOSE ASSY-ORFS 0X90 | |
| 38 | 31M9-11880 | HOSE ASSY-ORFS 0X90 | |
| 38 | 31M9-12880 | HOSE ASSY-ORFS 0X90 | |
| 38 | 32M9-12840 | HOSE ASSY-ORFS 0X90 | |
| 44 | X511-108533 | CONNECTOR-ORFS | |
| 45 | X511-108535 | CONNECTOR-LONG,ORFS | |
| 46 | X511-108534 | CONNECTOR-LONG,ORFS | |
| 51 | 31M8-10440 | ELBOW-90 | |
| 54 | X820-085353 | TEE-R/TYPE,ORFS | |
| 58 | 31M8-10522GG | BRACKET-MCV | |
| 59 | 31M9-10460 | CLAMP-HOSE | |
| 61 | 31M9-10380 | CLAMP-RUBBER | |
| 61 | 31M9-10381 | CLAMP-RUBBER | |
| 62 | 31M9-10470 | GROMMET | |
| 63 | 31M9-10410 | PLATE | |
| 68 | S621-014001 | O-RING | |
| 68 | S621-014001 | O-RING | |
| 69 | S621-018001 | O-RING | |
| 69 | S621-018001 | O-RING | |
| 72 | S631-018004 | O-RING | |
| 80 | S015-080456 | BOLT-HEX | |
| 81 | S015-080856 | BOLT-HEX | |
| 83 | S017-100656 | BOLT-HEX | |
| 87 | S037-123526 | BOLT-W/WASHER | |
| 91 | S403-08200B | WASHER-PLAIN | |
| 92 | S403-10200B | WASHER-PLAIN | |
| 93 | S411-080006 | WASHER-SPRING | |
| 94 | S411-100006 | WASHER-SPRING | |
| 99 | S551-050203 | CLAMP-BAND | |
| 104 | X511-108547 | CONNECTOR-LONG,ORFS | |
| 109 | 32M9-11820 | HOSE ASSY-ORFS 0X90 | |
| 110 | 32M9-11860 | HOSE ASSY-ORFS 0X90 |
