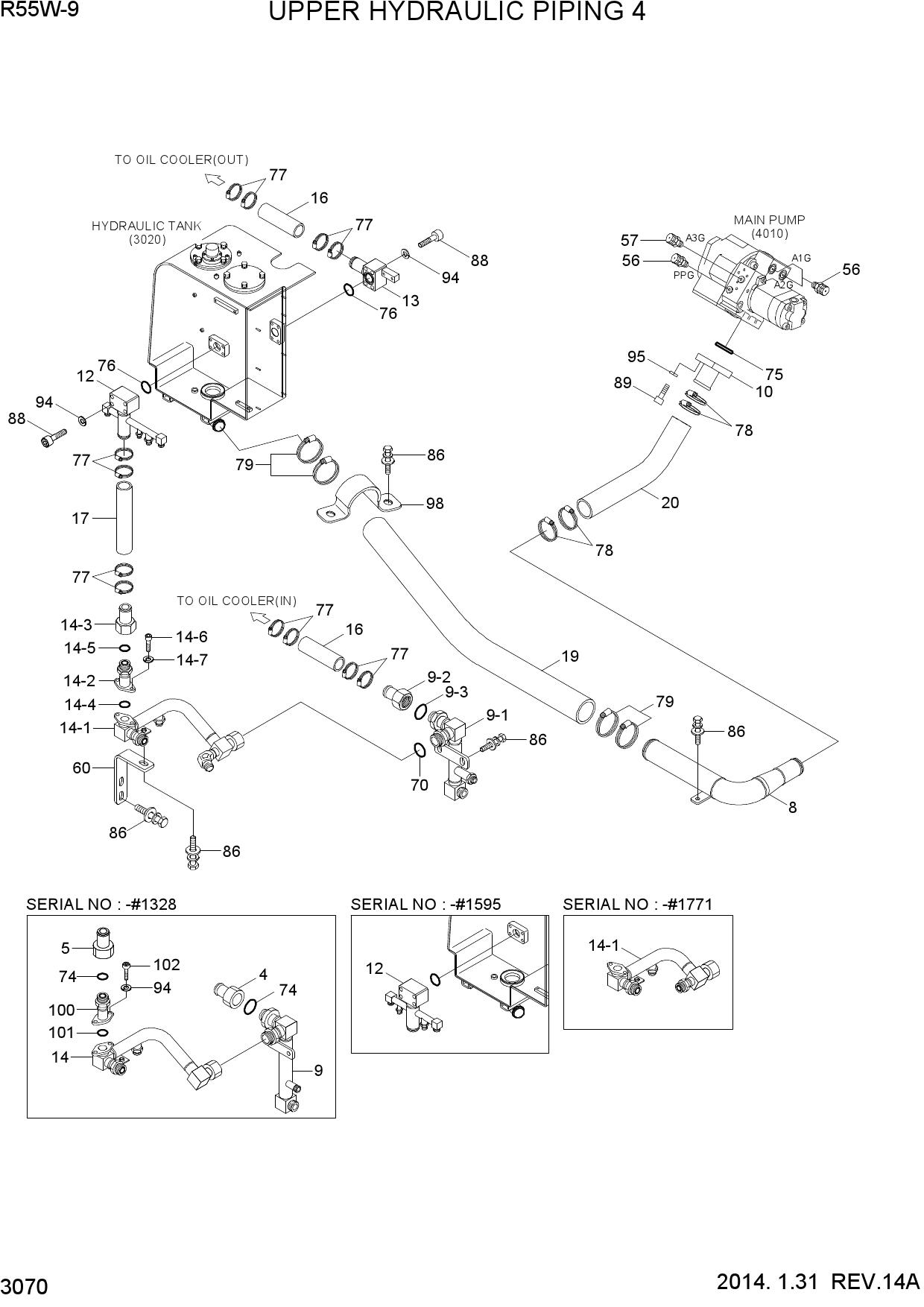

Запчасти для колесных экскаваторов Hyundai R55W-9 UPPER HYDRAULIC PIPING 4
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31M5-52111 | VALVE-CHECK | |
| 5 | 31EE-10510 | CHECK VLV-4.5K | |
| 8 | 31M8-10240GY | PIPE WA-SUCTION | |
| 8 | 31M9-10241 | PIPE-SUCTION | |
| 9 | 31M9-10261 | PIPE ASSY | |
| 9 | 31M9-12240 | RETURN PIPE SUB ASSY | |
| 9 | 31M9-12241 | RETURN PIPE SUB ASSY | |
| 9-1 | 31M9-10261 | PIPE ASSY | |
| 9-1 | 31M9-10262 | PIPE ASSY | |
| 9-2 | 31M5-52111 | VALVE-CHECK | |
| 9-3 | S631-029004 | O-RING | |
| 10 | 31M8-10760GY | PIPE ASSY | |
| 10 | 31M9-10760 | PIPE ASSY | |
| 12 | 31M8-15271GY | PIPE ASSY | |
| 12 | 31M9-15270 | PIPE ASSY | |
| 13 | 31M8-10460GY | PIPE ASSY | |
| 13 | 31M8-10460YL | PIPE ASSY | |
| 13 | 31M9-02340 | PIPE ASSY | |
| 14 | 31M9-15281 | PIPE ASSY | |
| 14 | 31M9-12220 | RETURN PIPE SUB ASSY | |
| 14 | 31M9-12221 | RETURN PIPE SUB ASSY | |
| 14 | 32M9-12220 | RETURN PIPE SUB ASSY | |
| 14-1 | 31M9-15281 | PIPE ASSY | |
| 14-1 | 31M9-15282 | PIPE ASSY | |
| 14-1 | 32M9-15280 | PIPE ASSY | |
| 14-2 | 31M8-10780GY | FLANGE WA | |
| 14-2 | 31M9-10780 | FLANGE ASSY | |
| 14-3 | 31EE-10510 | CHECK VLV-4.5K | |
| 14-4 | S631-029004 | O-RING | |
| 14-5 | Y171-024004 | O-RING | |
| 14-6 | S109-100406 | BOLT-SOCKET | |
| 14-7 | S411-100006 | WASHER-SPRING | |
| 16 | P760-052015 | HOSE-RUBBER | |
| 17 | P760-052016 | HOSE-RUBBER | |
| 19 | 31M9-10230 | HOSE-SUCTION | |
| 20 | 31M8-10310 | HOSE-SUCTION | |
| 56 | 31EK-11130 | COUPLING-SCREW | |
| 57 | 31M6-50860 | COUPLING-SCREW | |
| 60 | 31M8-10661GY | BRACKET-PIPE | |
| 70 | S621-021001 | O-RING | |
| 74 | S631-029004 | O-RING | |
| 75 | S631-045001 | O-RING | |
| 76 | S632-035001 | O-RING | |
| 77 | S572-460006 | CLAMP-HOSE,WIRE TYPE | |
| 78 | S572-630006 | CLAMP-HOSE,WIRE TYPE | |
| 79 | S572-750006 | CLAMP-HOSE WIRE TYPE | |
| 86 | S037-102526 | BOLT-W/WASHER | |
| 88 | S109-100606 | BOLT-SOCKET | |
| 89 | S109-120356 | BOLT-SOCKET | |
| 94 | S411-100006 | WASHER-SPRING | |
| 94 | S411-100006 | WASHER-SPRING | |
| 95 | S411-120006 | WASHER-SPRING | |
| 98 | 31M9-10910 | CLAMP-HOSE | |
| 100 | 31M8-10780GY | FLANGE WA | |
| 101 | Y171-024004 | O-RING | |
| 102 | S109-100406 | BOLT-SOCKET |
