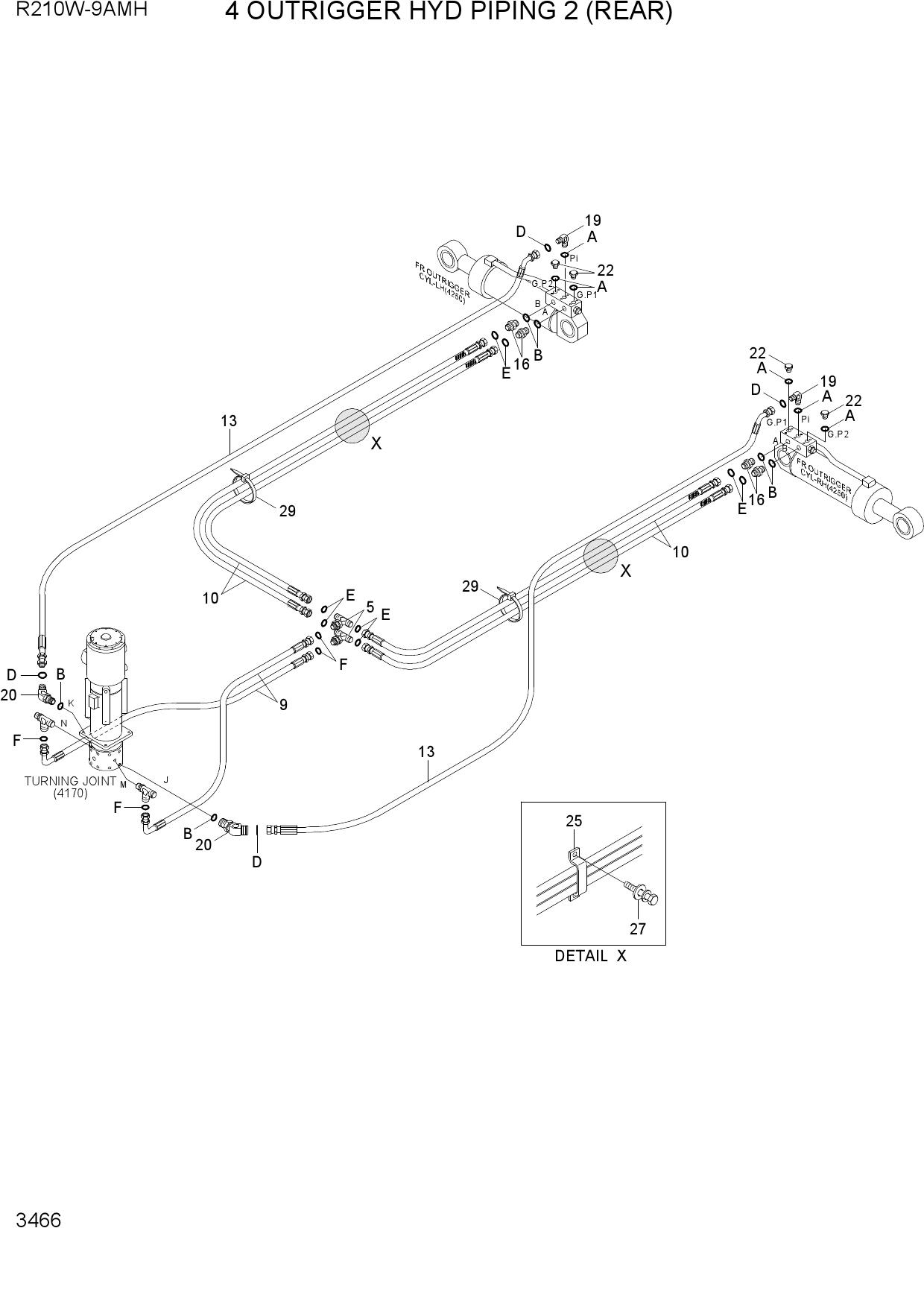

Запчасти для колесных экскаваторов Hyundai R210W9AMH 4 OUTRIGGER HYD PIPING 2 (REAR)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31Q4-43180 | TEE | |
| 9 | P933-087017 | HOSE ASSY-ORFS 0X90 | |
| 10 | P913-067029 | HOSE ASSY-ORFS 0X0 | |
| 13 | P923-043046 | HOSE ASSY-ORFS 0X45 | |
| 16 | X500-110002 | CONNECTOR-ORFS | |
| 19 | X520-110001 | ELBOW-90,ORFS | |
| 20 | X530-110012 | ELBOW-45,ORFS | |
| 22 | P220-110102 | PLUG-HEX | |
| 25 | 31EM-45320 | CLAMP-HOSE | |
| 27 | S037-102026 | BOLT-W/WASHER | |
| 29 | S552-102370 | CLAMP-BAND | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| D | S621-011001 | O-RING | |
| E | S621-012001 | O-RING | |
| F | S621-014001 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R210W9AMH в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
