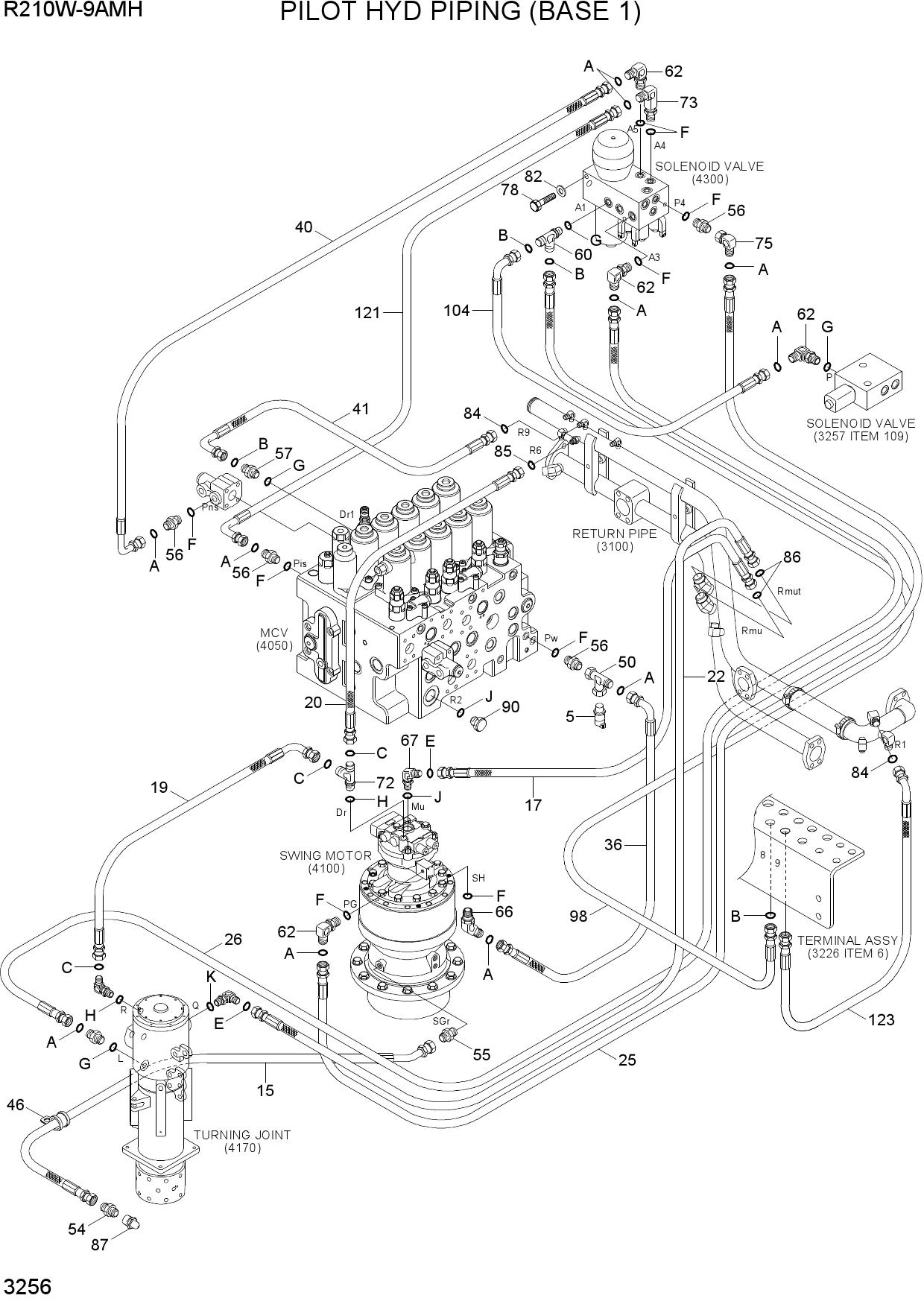

Запчасти для колесных экскаваторов Hyundai R210W9AMH PILOT HYD PIPING (BASE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31Q4-40830 | SENSOR-PRESSURE | |
| 15 | P850-042022 | HOSE ASSY-SYN 0X45 | |
| 17 | P910-162018 | HOSE ASSY-ORFS 0X0 | |
| 19 | P930-082013 | HOSE ASSY-ORFS 0X90 | |
| 20 | P910-082018 | HOSE ASSY-ORFS 0X0 | |
| 22 | P910-162031 | HOSE ASSY-ORFS 0X0 | |
| 25 | X400-042048 | HOSE ASSY-SYNF ORFS | |
| 26 | X400-042058 | HOSE ASSY-SYNFLEX,ORFS | |
| 36 | X420-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 40 | X420-042043 | HOSE ASSY-ORFS 0X90 | |
| 41 | X420-062006 | HOSE ASSY-ORFS 0X90 | |
| 46 | 31L7-10190 | CLAMP-TUBE | |
| 50 | 31N6-66080 | TEE-BRENCH TEST | |
| 54 | 31W5-70060 | CONNECTOR | |
| 55 | P010-430002 | CONNECTOR | |
| 56 | X500-110001 | CONNECTOR-ORFS | |
| 57 | X500-110002 | CONNECTOR-ORFS | |
| 62 | X520-110001 | ELBOW-90,ORFS | |
| 66 | X530-110001 | ELBOW-45,ORFS | |
| 67 | X530-110005 | ELBOW-45,ORFS | |
| 67 | X530-110020 | ELBOW-45 | |
| 72 | X820-085353 | TEE-R/TYPE,ORFS | |
| 73 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 75 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 78 | S017-101156 | BOLT-HEX | |
| 82 | S441-10000B | WASHER-HARDENED | |
| 84 | S621-012001 | O-RING | |
| 85 | S621-014001 | O-RING | |
| 86 | S621-021001 | O-RING | |
| 87 | S653-810002 | NIPPLE-GREASE | |
| 90 | P220-110106 | PLUG-HEX,HEAD | |
| 98 | P910-062080 | HOSE ASSY-ORFS 0X0 | |
| 104 | P930-042024 | HOSE ASSY-ORFS 0X90 | |
| 121 | X420-042047 | HOSE ASSY-SYNFLEX,ORFS | |
| 123 | P930-082050 | HOSE ASSY-ORFS 0X90 | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S621-014001 | O-RING | |
| E | S621-021001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING | |
| H | S631-018004 | O-RING | |
| J | S631-029004 | O-RING | |
| K | S631-038004 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R210W9AMH в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
