- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING (BASE)
- UPPER HYD PIPING (ATTACH)
- UPPER HYD PIPING (TRAVEL)
- PILOT HYD PIPING (CONTROL 1)
- PILOT HYD PIPING (CONTROL 2)
- PILOT HYD PIPING (CONTROL 3)
- ELEVATED CABIN HYD PIPING 1
- ELEVATED CABIN HYD PIPING 2
- ELEVATED CABIN HYD PIPING 3
- PILOT HYD PIPING (BASE 1)
- PILOT HYD PIPING (BASE 2)
- PILOT HYD PIPING (BASE 3)
- PILOT HYD PIPING (4 OUTRIGGER)
- POWER TRAIN HYD PIPING 1
- POWER TRAIN HYD PIPING 2
- POWER TRAIN HYD PIPING 3
- POWER TRAIN HYD PIPING (1-WAY PEDAL)
- LOWER HYD PIPING 1
- LOWER HYD PIPING 2
- LOWER HYD PIPING 3
- FRONT OUTRIGGER HYD PIPING
- REAR DOZER BLADE HYD PIPING
- 4 OUTRIGGER HYD PIPING 1 (FRONT)
- 4 OUTRIGGER HYD PIPING 2 (REAR)
- LOWER HYD PIPING 1 (F/BLD, R/OUT)
- LOWER HYD PIPING 2 (F/BLD, R/OUT)
- LOWER HYD PIPING 1 (F/BLD, R/BLD)
- LOWER HYD PIPING 2 (F/BLD, R/BLD)
- BOOM HYD PIPING (6.5M)
- BOOM GREASE LUB SYSTEM (6.5M)
- BOOM SAFETY LOCK SYSTEM
- ARM HYD PIPING (4.5M)
- ARM GREASE LUB SYSTEM (4.5M)
- ARM SAFETY LOCK SYSTEM

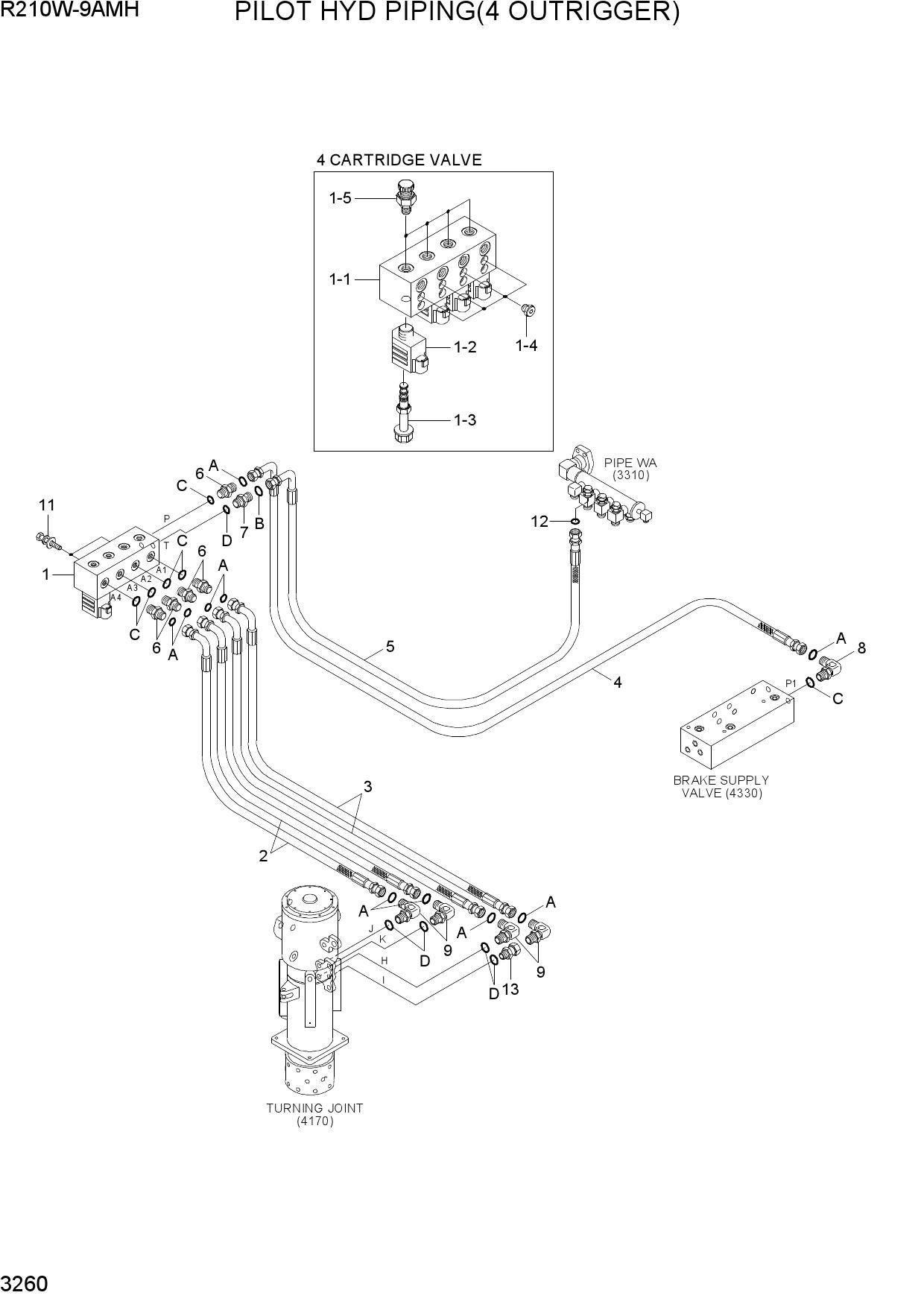

Запчасти для колесных экскаваторов Hyundai R210W9AMH PILOT HYD PIPING (4 OUTRIGGER)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q4-20051 | 4 CARTR VLV-OUTRIGGER | |
| 1-1 | 2-A1054-07-1 | BODY | |
| 1-2 | XKBL-00003 | VALVE-SOLENOID | |
| 1-3 | XKBL-00004 | COIL | |
| 1-4 | XKBL-00057 | PLUG-WRENCH | |
| 1-5 | XKBL-00006 | OVERLOAD-MANUAL | |
| 2 | P930-043013 | HOSE ASSY-ORFS 0X90 | |
| 3 | P930-043012 | HOSE ASSY-ORFS 0X90 | |
| 4 | P930-043064 | HOSE ASSY-ORFS 0X90 | |
| 5 | P930-062042 | HOSE ASSY-ORFS 0X90 | |
| 6 | X500-110001 | CONNECTOR-ORFS | |
| 7 | X500-110002 | CONNECTOR-ORFS | |
| 8 | X520-110001 | ELBOW-90,ORFS | |
| 9 | X520-110012 | ELBOW-90,ORFS | |
| 11 | S037-102526 | BOLT-W/WASHER | |
| 12 | S621-012001 | O-RING | |
| 13 | 31EK-30130 | CONNECTOR-LONG | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S631-011004 | O-RING | |
| D | S631-014004 | O-RING |
