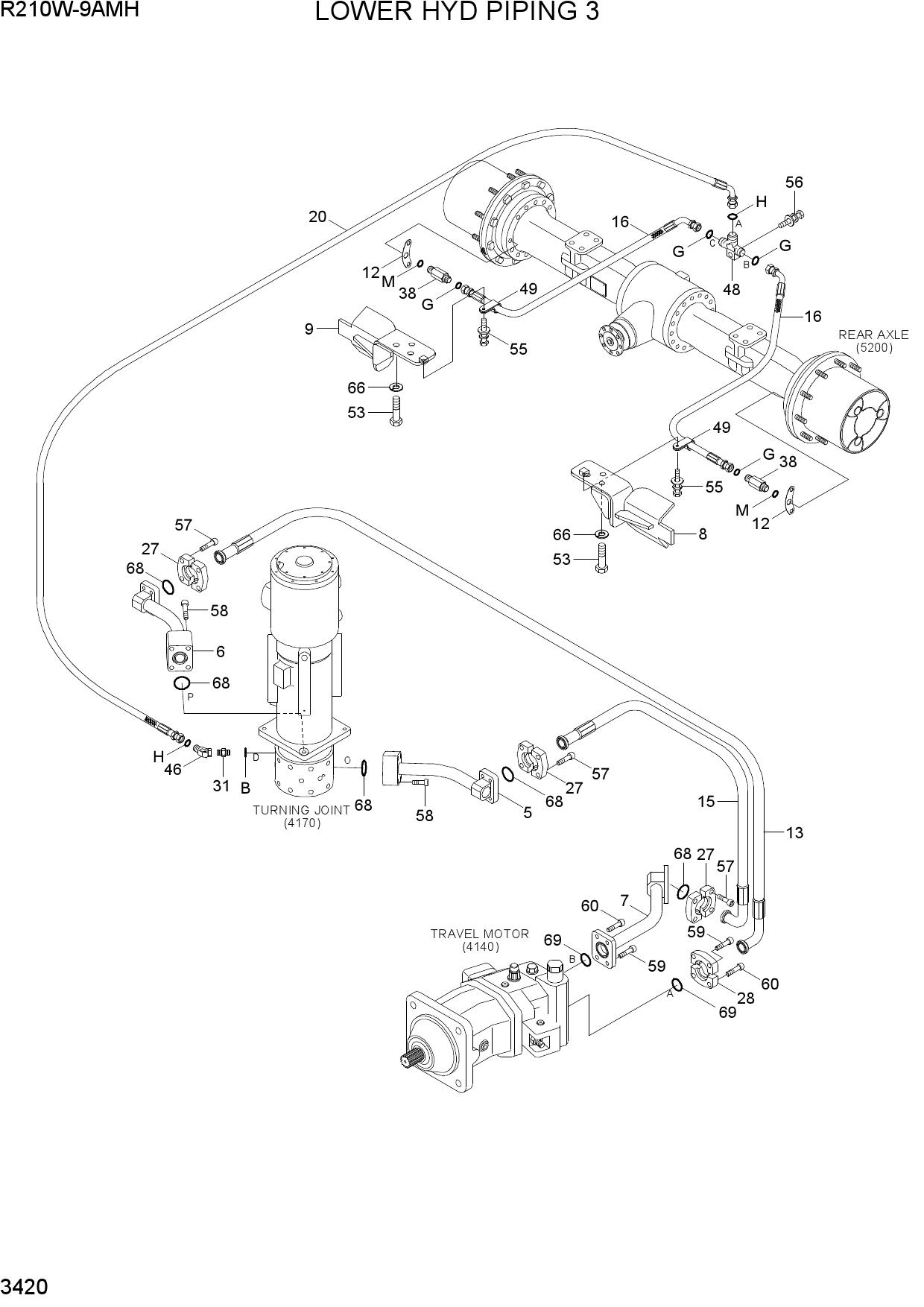

Запчасти для колесных экскаваторов Hyundai R210W9AMH LOWER HYD PIPING 3
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31Q6-41021 | PIPE WA | |
| 6 | 31Q6-41031 | PIPE WA | |
| 7 | 31Q6-41160 | PIPE WA | |
| 8 | 31Q6-41201 | COVER-LH | |
| 9 | 31Q6-41301 | COVER-RH | |
| 12 | 31Q6-41270 | PROTECTOR | |
| 13 | 31Q6-41151 | HOSE ASSY-FLG 0X90 | |
| 15 | P703-168317 | HOSE ASSY-FLG 0X90 | |
| 16 | P923-043020 | HOSE ASSY-ORFS 0X45 | |
| 20 | P923-063038 | HOSE ASSY-ORFS 0X45 | |
| 27 | P173-160104 | FLANGE-HYD,SPLIT | |
| 28 | 31NA-12070 | FLANGE-HYD,SPLIT | |
| 31 | X500-110002 | CONNECTOR-ORFS | |
| 38 | 31N6-41170 | CONNECTOR-LONG,ORFS | |
| 46 | X860-525200 | ELBOW-45,SWIVEL,ORFS | |
| 48 | 31N5-41030 | TEE-MTG | |
| 49 | 31L7-10190 | CLAMP-TUBE | |
| 53 | S017-16055D | BOLT-HEX | |
| 55 | S037-102026 | BOLT-W/WASHER | |
| 56 | S037-103526 | BOLT-W/WASHER | |
| 57 | S109-100306 | BOLT-SOCKET | |
| 58 | S109-100406 | BOLT-SOCKET | |
| 59 | S109-140456 | BOLT-SOCKET | |
| 60 | S109-141306 | BOLT-SOCKET | |
| 66 | S411-160006 | WASHER-SPRING | |
| 68 | Y171-024004 | O-RING | |
| 69 | Y171-027004 | O-RING | |
| B | S631-014004 | O-RING | |
| G | S621-011001 | O-RING | |
| H | S621-012001 | O-RING | |
| M | Y161-014001 | O-RING |
