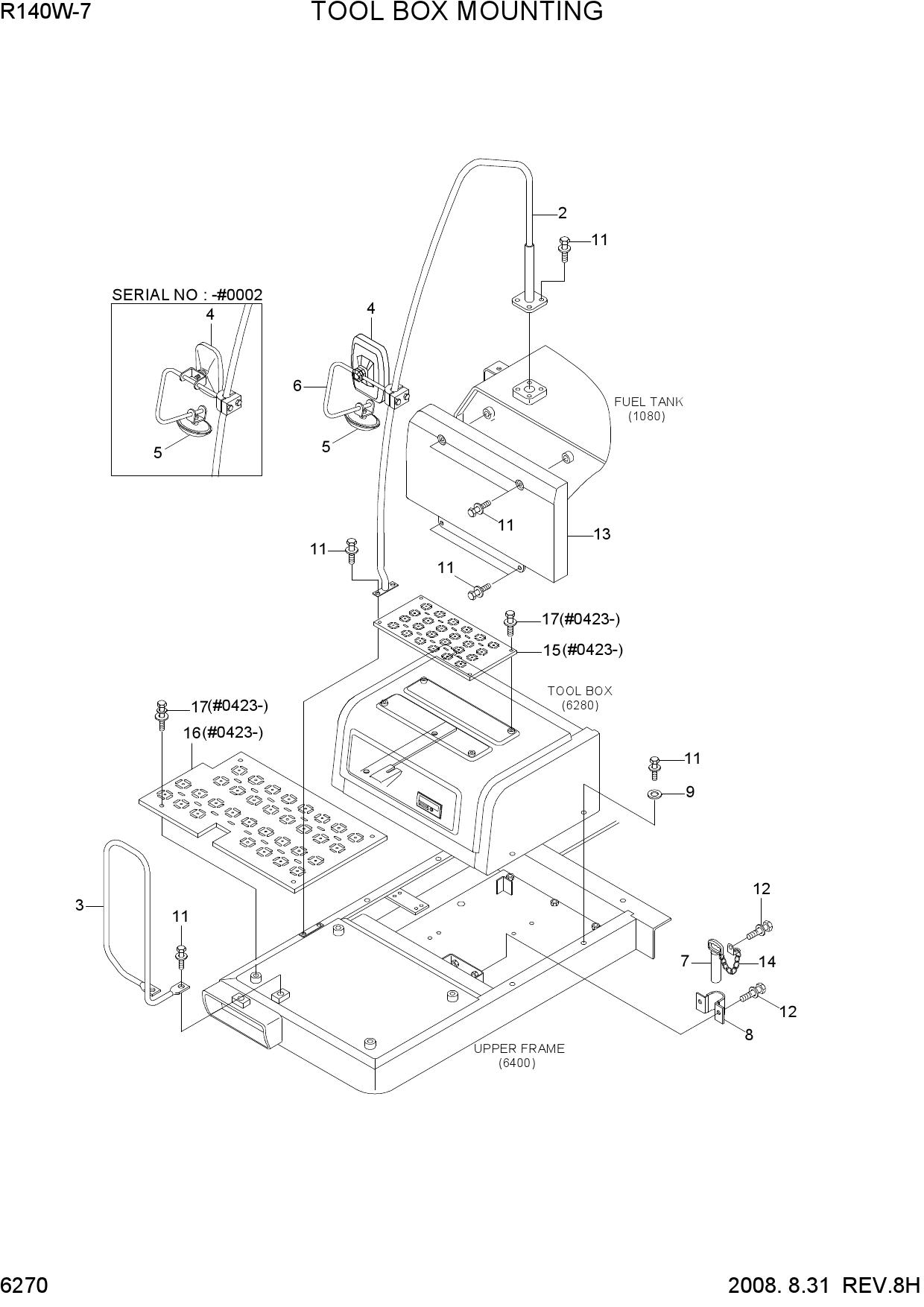

Запчасти для колесных экскаваторов Hyundai R140W-7 TOOL BOX MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 71N4-42400 | PIPE WA | |
| 2 | 71N4-42400BG | PIPE WA | |
| 3 | 71N4-42500 | PIPE WA | |
| 3 | 71N4-42500BG | PIPE WA | |
| 4 | 71N8-46000 | MIRROR | |
| 4 | 71N8-47100 | MIRROR | |
| 4 | 71N8-47101 | MIRROR | |
| 5 | 71E4-3004 | MIRROR | |
| 5 | 71N4-46100 | MIRROR | |
| 6 | 71N4-42601 | STAY-MIRROR | |
| 6 | 71N4-42900 | STAY WA-MIRROR | |
| 6 | 71N4-42900BG | STAY WA-MIRROR | |
| 7 | 71N4-42700 | PIN-SWING LOCK | |
| 8 | 71N4-42800 | CLAMP ASSY-SW LOCK PIN | |
| 9 | S390-015040 | SHIM(0.5T)-ROUND | |
| 11 | S037-122552 | BOLT-W/WASHER | |
| 12 | S037-102552 | BOLT-W/WASHER | |
| 13 | 71N4-44100 | COVER-F/TANK | |
| 14 | 71W1-54020 | CHAIN ASSY | |
| 15 | 74N4-47100 | FOOT BOARD WA(A) | |
| 16 | 74N4-47200 | FOOT BOARD WA(C) | |
| 16 | 74N4-47200BG | FOOT BOARD WA(C) | |
| 17 | S037-121552 | BOLT-W/WASHER | |
| 3 | 71N8-46000 | MIRROR | |
| 3 | 71N6-47000 | MIRROR & STAY ASSY-LH | |
| 3 | 71N6-47000BG | MIRROR & STAY ASSY-LH | |
| 3 | 71N6-47001BG | MIRROR & STAY ASSY-LH | |
| 3 | 71N6-47000BG | MIRROR & STAY ASSY-LH | |
| 3 | 71N6-47001BG | MIRROR & STAY ASSY-LH | |
| 4 | 71E1-60340 | HAMMER-SAFETY | |
| 5 | S141-040166 | SCREW-FLAT HD | |
| 6 | S017-120706 | BOLT-HEX | |
| 7 | S037-122526 | BOLT-W/WASHER | |
| 8 | S403-122006 | WASHER-PLAIN | |
| 9 | S411-120006 | WASHER-SPRING | |
| 10 | S411-100006 | WASHER-SPRING | |
| 11 | S403-102006 | WASHER-PLAIN | |
| 12 | S017-100256 | BOLT-HEX | |
| 13 | 71N6-03560 | RAIL-HAND | |
| N14 | 71N6-10270 | PLATE | |
| 15 | S131-051546 | SCREW-W/WASHER | |
| 16 | 71N6-03632 | SUN VISOR ASSY | |
| 16-1 | S132-060856 | SCREW-W/WASHER |
