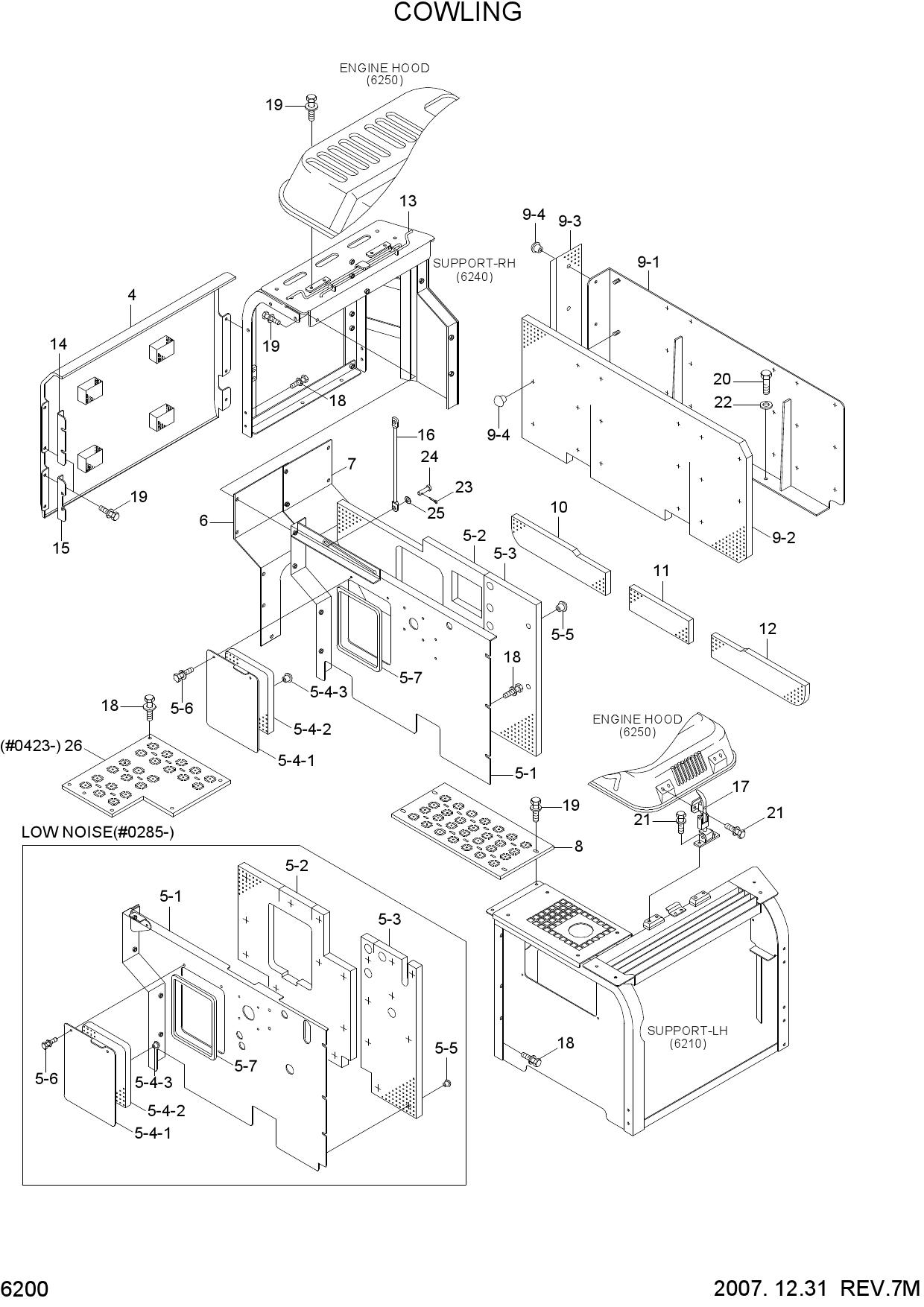

Запчасти для колесных экскаваторов Hyundai R140W-7 COWLING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 71N4-53160 | COVER ASSY-TANK | |
| 5 | 72N4-54101 | SCREEN ASSY-MAIN | |
| 5-1 | 72N4-54111 | SCREEN WA | |
| 5-2 | 72N4-54121 | SPONGE | |
| 5-3 | 72N4-54140 | SPONGE | |
| 5-4 | 71N4-54131 | COVER ASSY-SCREEN | |
| 5-4-1 | 71N4-54140 | COVER WA-SCREEN | |
| 5-4-2 | 71N4-54150 | SPONGE-S/COVER | |
| 5-4-3 | 71EM-51580 | CAP-STUD BOLT | |
| 5-5 | 71EM-51580 | CAP-STUD BOLT | |
| 5-6 | S037-122052 | BOLT-W/WASHER | |
| 5-7 | S791-016014 | GROMMET-PLATE | |
| 6 | 72N4-54200 | SCREEN-PUMP(FR) | |
| 7 | 72N4-54301 | SCREEN-PUMP(RR) | |
| 8 | 72N4-55200 | HOOD WA-MCV | |
| 8 | 72N4-55300 | HOOD WA-MCV | |
| 8 | 72N4-55301 | HOOD WA-MCV | |
| 9 | 71N4-56102 | SCREEN ASSY-CWT | |
| 9-1 | 71N4-56112 | SCREEN WA-CWT | |
| 9-2 | 71N4-56162 | SPONGE-CWT | |
| 9-3 | 71N4-56171 | SPONGE-PUMP | |
| 9-4 | 71EM-51580 | CAP-STUD BOLT | |
| 10 | 71N4-56200 | SPONGE-UPPER(RH) | |
| 11 | 71N4-56300 | SPONGE-UPPER(CENTER) | |
| 12 | 72N4-56400 | SPONGE-UPPER(LH) | |
| 13 | 72N4-56500 | TORSION BAR | |
| 13 | 72N4-56500BG | BAR-TORSION | |
| 14 | 71N8-57101 | SUPPORT-T/COVER | |
| 15 | 71N8-57200 | SUPPORT-T/COVER | |
| 16 | 71EG-54960 | STAY-ENG HOOD | |
| 16 | 71EG-54960BG | STAY-ENG HOOD | |
| 17 | 71N6-56400 | CATCH ASSY | |
| 17 | 71N6-56400BG | CATCH ASSY | |
| 18 | S037-122052 | BOLT-W/WASHER | |
| 18 | S037-122052 | BOLT-W/WASHER | |
| 19 | S037-122552 | BOLT-W/WASHER | |
| 20 | S017-160252 | BOLT-HEX | |
| 21 | S035-082522 | BOLT-W/WASHER | |
| 22 | S403-162002 | WASHER-PLAIN | |
| 23 | S491-100252 | PIN-CLEVIS | |
| 24 | S501-100002 | PIN-SELF LOCKING | |
| 25 | S441-120002 | WASHER-HARDENED | |
| 26 | 74N4-59100 | FOOT BOARD WA(B) | |
| 5 | 72N4-59100 | SCREEN ASSY | |
| 5-1 | 72N4-59110 | SCREEN WA | |
| 5-2 | 72N4-59120 | SPONGE | |
| 5-2 | 72N4-59121 | SPONGE | |
| 5-3 | 72N4-54140 | SPONGE | |
| 5-3 | 72N4-54141 | SPONGE | |
| 5-4 | 72N4-59130 | COVER ASSY | |
| 5-4-1 | 72N4-59140 | COVER WA | |
| 5-4-2 | 72N4-59150 | SPONGE | |
| 5-4-3 | 71EM-51580 | CAP-STUD BOLT | |
| 5-5 | 71EM-51580 | CAP-STUD BOLT | |
| 5-6 | S037-122052 | BOLT-W/WASHER | |
| 5-7 | S791-016014 | GROMMET-PLATE |
