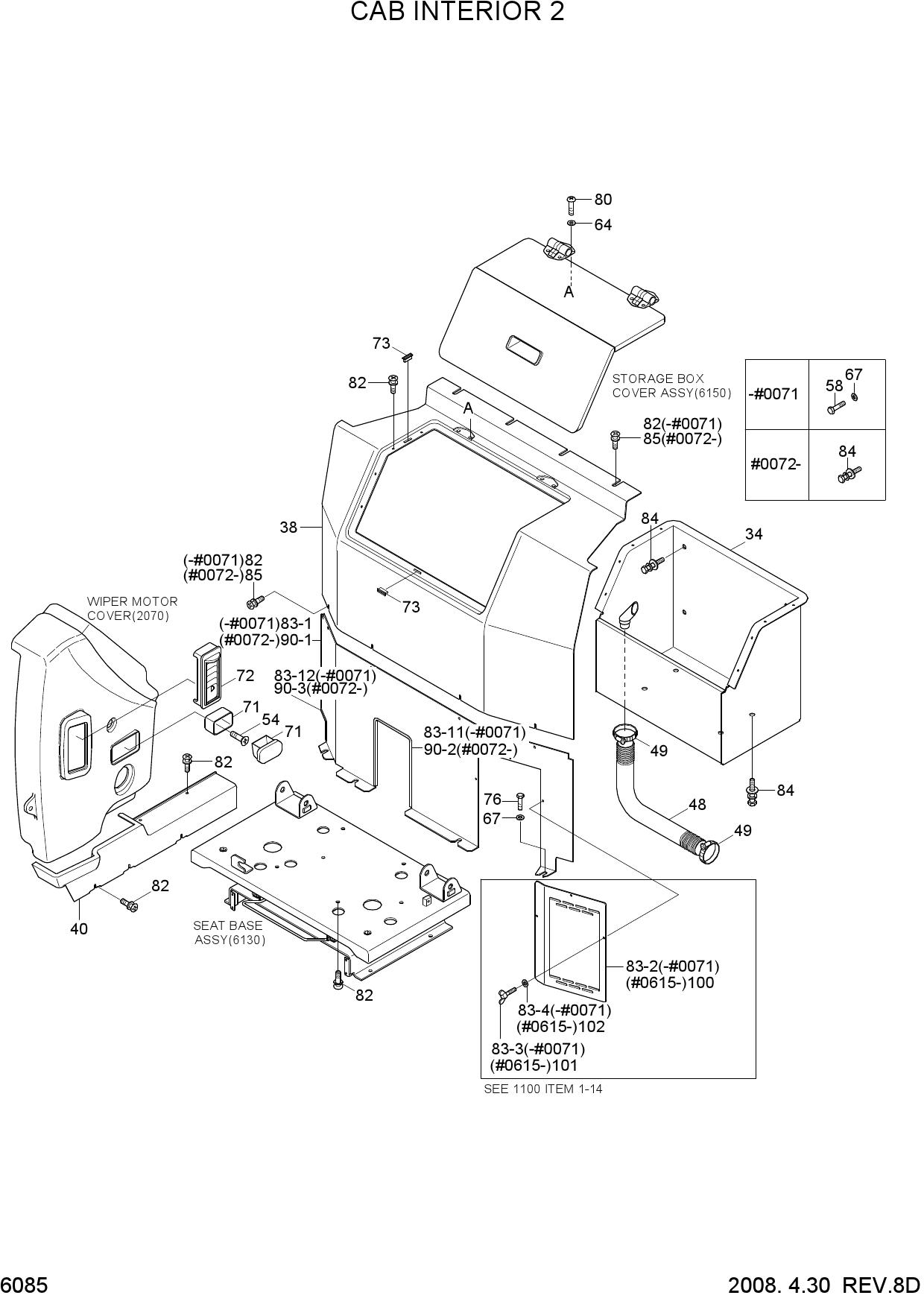

Запчасти для колесных экскаваторов Hyundai R140W-7 CAB INTERIOR 2
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 34 | 71N6-20271 | STORAGE BOX WA | |
| 34 | 71N6-20470 | STORAGE BOX ASSY | |
| 38 | 71N6-20311 | AIRCON COVER-UP | |
| 40 | 71N6-20331 | COVER-DEF,HOSE | |
| 48 | 71N6-20360 | HOSE-STORAGE BOX | |
| 49 | 71N6-20370 | CLIP-HOSE | |
| 54 | S141-040166 | SCREW-FLAT HD | |
| 58 | S037-102516 | BOLT-W/WASHER | |
| 64 | S403-052006 | WASHER-PLAIN | |
| 67 | S403-102006 | WASHER-PLAIN | |
| 71 | E171-1176 | ASHTRAY | |
| 72 | 71N6-20380 | AIR NOZZLE | |
| 73 | 71N6-20390 | MAGNETIC | |
| 76 | S017-100156 | BOLT-HEX | |
| 80 | S161-050206 | SCREW-CROSS R/ROUND | |
| 82 | S132-061676 | SCREW-W/WASHER | |
| 83 | 71N6-20460 | A/CON COVER-LOW ASSY | |
| 83 | 71N6-20461 | A/CON COVER-LOW ASSY | |
| 83-1 | 71N6-20291 | AIRCON COVER-LOW | |
| 83-1 | 71N6-20292 | AIRCON COVER-LOW | |
| 83-11 | S791-016054 | GROMMET-PLATE | |
| N83-12 | S791-016010 | GROMMET-PLATE | |
| 83-2 | 71N6-20301 | COVER-FILTER | |
| 83-3 | S091-060166 | BOLT-WING | |
| 83-3 | S091-060156 | BOLT-WING | |
| 83-4 | S403-062006 | WASHER-PLAIN | |
| 84 | S037-102026 | BOLT-W/WASHER | |
| 85 | S132-062546 | SCREW-W/WASHER | |
| 85 | S132-062076 | SCREW-W/WASHER | |
| 90 | 71N6-20292 | AIRCON COVER-LOW | |
| 90-1 | 71N6-21760 | PLATE | |
| 90-2 | S791-016054 | GROMMET-PLATE | |
| N90-3 | S791-016010 | GROMMET-PLATE | |
| 100 | 11N6-90340 | FILTER-REC | |
| 101 | S091-060156 | BOLT-WING | |
| 102 | S403-06200B | WASHER-PLAIN |
