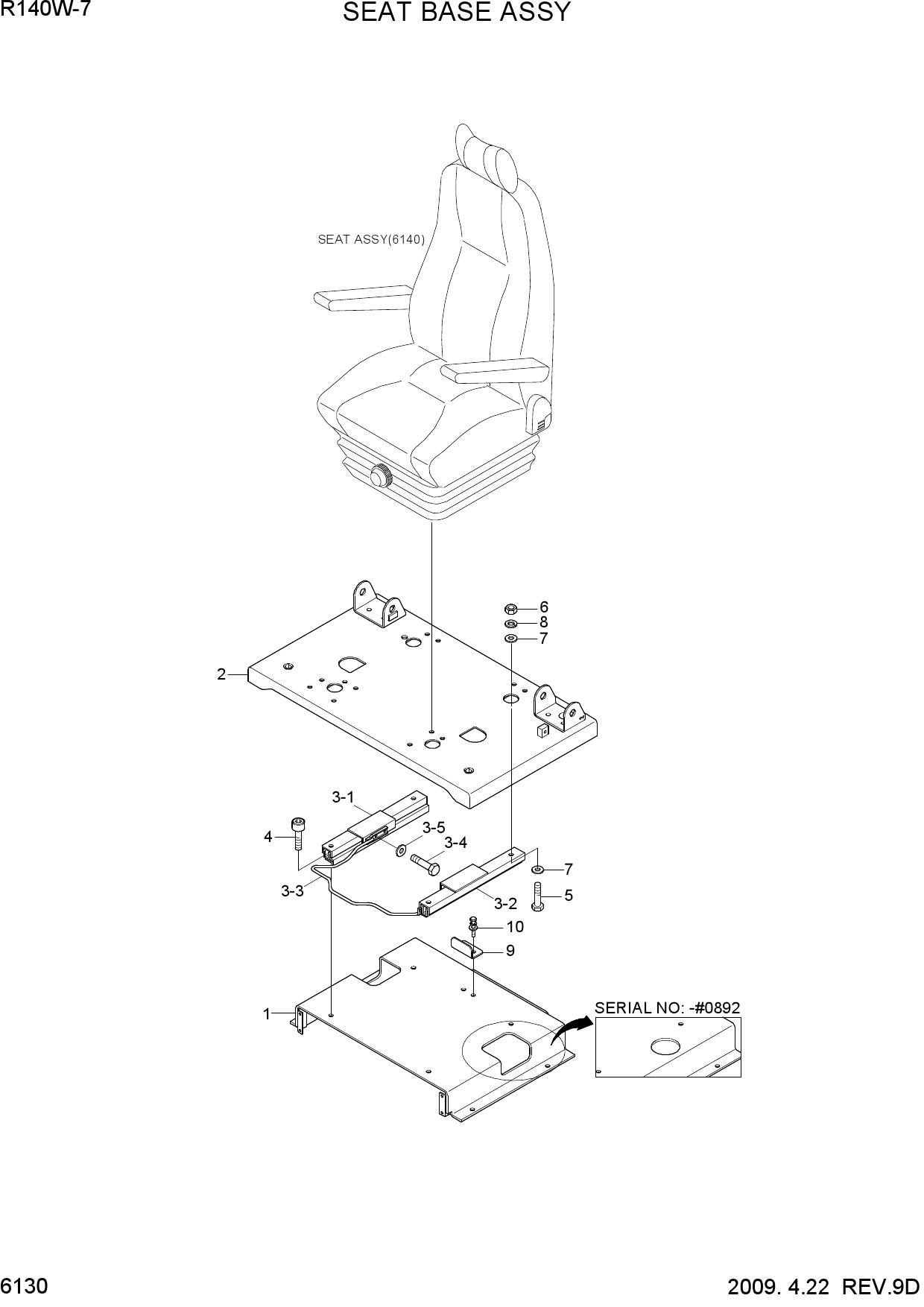

Запчасти для колесных экскаваторов Hyundai R140W-7 SEAT BASE ASSY
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71N4-20011 | SEAT BASE ASSY | |
| * | 71N4-20012 | SEAT BASE ASSY | |
| * | 71N4-20140 | SEAT BASE ASSY | |
| 1 | 71N6-21011 | SEAT BASE-LOW | |
| 1 | 71N4-20150 | SEAT BASE-LOW | |
| 2 | 71N6-21072 | SEAT BASE-UP | |
| 2 | 71N6-21073 | SEAT BASE-UP | |
| 2 | 71N6-21074 | SEAT BASE-UP | |
| 3 | 71N4-21720 | SLIDING RAIL ASSY | |
| N3-1 | 71N6-21670 | SLIDE ASSY-RH | |
| N3-2 | 71N6-21680 | SLIDE ASSY-LH | |
| N3-3 | 71N4-21690 | LEVER ASSY | |
| 3-4 | S015-060126 | BOLT-HEX | |
| 3-5 | S403-062006 | WASHER-PLAIN | |
| 4 | S109-080306 | BOLT-SOCKET | |
| 5 | S017-080256 | BOLT-HEX | |
| 6 | S205-081006 | NUT-HEX | |
| 7 | S403-082006 | WASHER-PLAIN | |
| 8 | S411-080006 | WASHER-SPRING | |
| 9 | 71N4-20160 | BRACKET | |
| 10 | S035-082526 | BOLT-W/WASHER |
