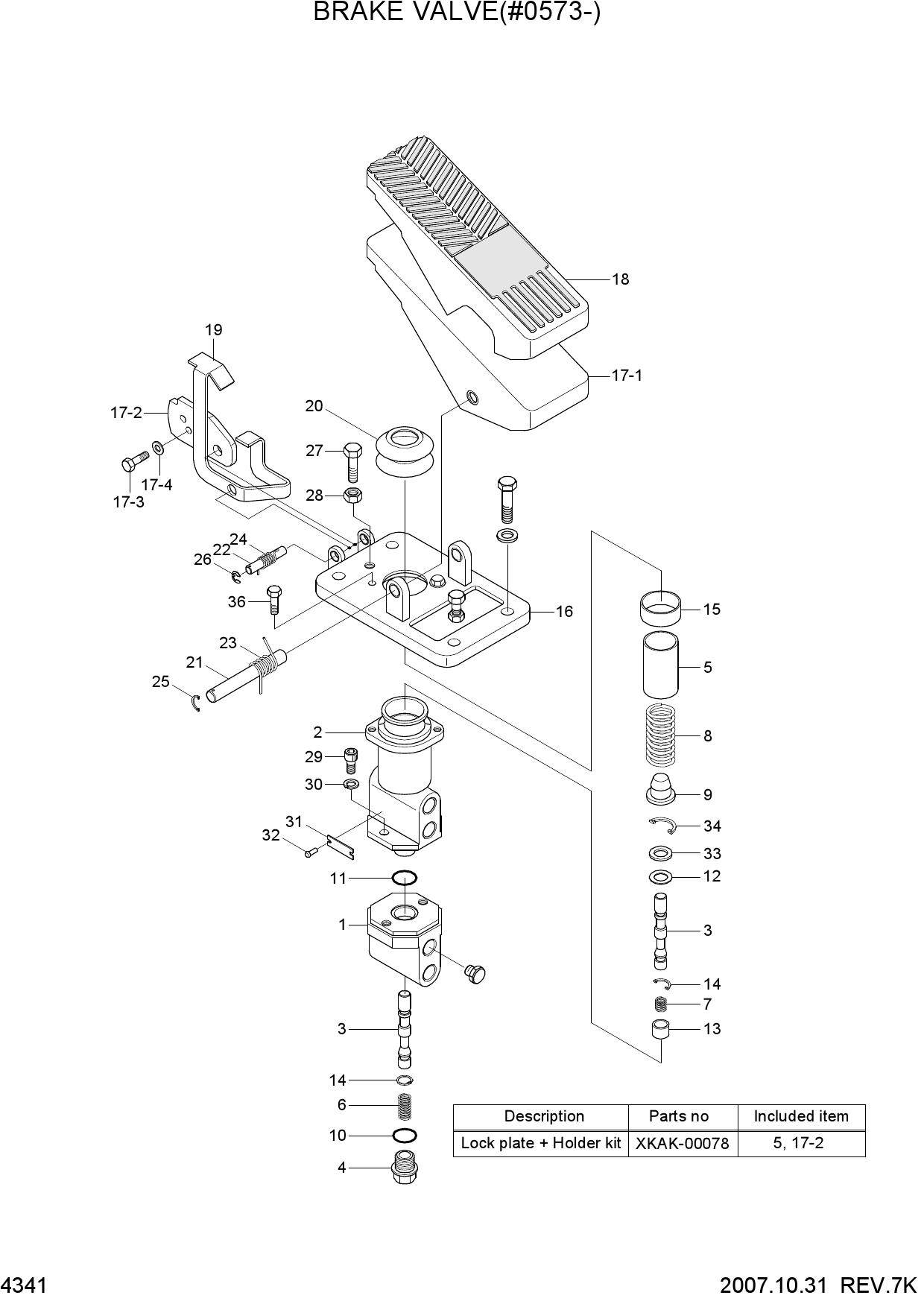

Запчасти для колесных экскаваторов Hyundai R140W-7 BRAKE VALVE(#0573-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N3-30110 | BRAKE VALVE ASSY | |
| 1 | XKAK-00001 | BODY-LOWER | |
| 2 | XKAK-00002 | BODY-UPPER | |
| 3 | XKAK-00021 | SPOOL | |
| 4 | XKAK-00004 | PLUG | |
| K5 | XKAK-00053 | HOLDER | |
| 6 | XKAK-00006 | SPRING-LOWER | |
| 7 | XKAK-00007 | SPRING-UPPER | |
| 8 | XKAK-00081 | SPRING-MAIN | |
| 9 | XKAK-00080 | RETAINER-SPRING | |
| 13 | XKAK-00010 | GUIDE | |
| 14 | XKAK-00059 | RING-SNAP | |
| 16 | XKAK-00079 | PLATE-PEDAL | |
| 17 | XKAK-00012 | PEDAL ASSY | |
| 17-1 | XKAK-00013 | PEDAL | |
| K17-2 | XKAK-00014 | PLATE-LOCK | |
| 17-3 | S017-080206 | BOLT-HEX | |
| 18 | XKAK-00015 | COVER-PEDAL | |
| 19 | XKAK-00025 | LATCH | |
| 20 | XKAK-00048 | COVER-RUBBER | |
| 21 | XKAK-00017 | PIN 1-LOCK | |
| 22 | XKAK-00026 | PIN 2-LOCK | |
| 23 | XKAK-00018 | SPRING 1 | |
| 24 | XKAK-00082 | SPRING 2 | |
| 27 | S017-080306 | BOLT-HEX | |
| 28 | S205-08100B | NUT-HEX | |
| 29 | S107-080256 | BOLT-SOCKET | |
| 30 | S411-080006 | WASHER-SPRING | |
| 31 | XKAK-00051 | NAME PLATE |
