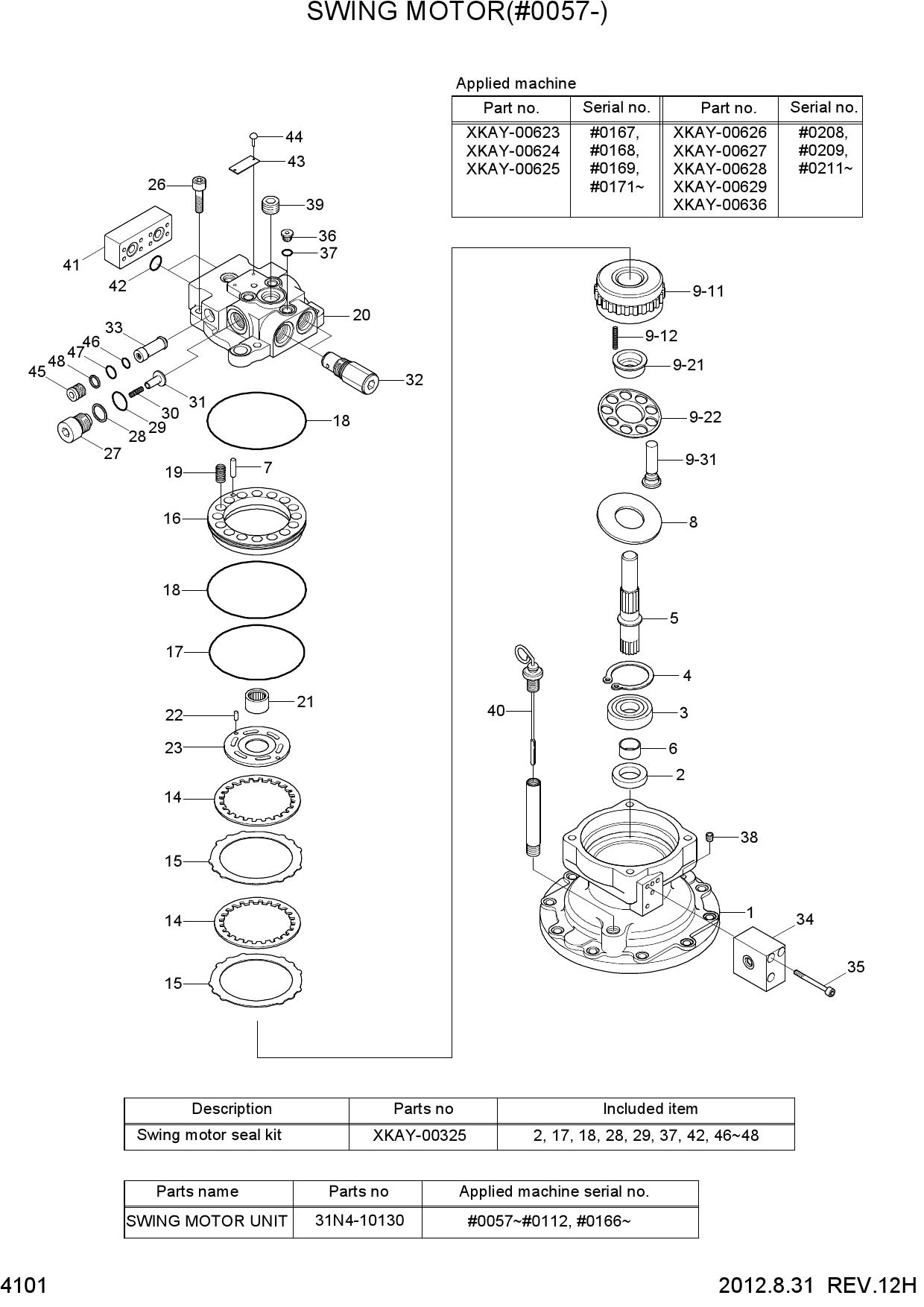

Запчасти для колесных экскаваторов Hyundai R140W-7 SWING MOTOR(#0057-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N4-10152 | SWING MOTOR ASSY | |
| *-1 | 31N4-10130 | SWING MOTOR UNIT | |
| 1 | XKAY-00280 | BODY | |
| 1 | XKAY-00636 | BODY | |
| K2 | XKAY-00281 | SEAL-OIL | |
| 3 | XKAY-00282 | BEARING-ROLLER | |
| 4 | XKAY-00283 | RING-SNAP | |
| 5 | XKAY-00284 | SHAFT | |
| 5 | XKAY-02042 | SHAFT | |
| 6 | XKAY-00285 | BUSHING | |
| 7 | XKAY-00286 | PIN | |
| 7 | XKAY-00625 | PIN | |
| 8 | XKAY-00287 | PLATE-SHOE | |
| 9 | XKAY-00288 | ROTARY KIT | |
| 9 | XKAY-00629 | ROTARY KIT | |
| 9 | XKAY-02043 | ROTARY KIT | |
| 9-1 | XKAY-00289 | BLOCK KIT-CYLINDER | |
| 9-1 | XKAY-00628 | BLOCK KIT-CYLINDER | |
| 9-1 | XKAY-02044 | BLOCK KIT-CYLINDER | |
| 9-11 | XKAY-00290 | BLOCK-CYLINDER | |
| 9-11 | XKAY-00627 | BLOCK-CYLINDER | |
| 9-11 | XKAY-02045 | BLOCK-CYLINDER | |
| 9-12 | XKAY-00291 | SPRING | |
| 9-2 | XKAY-00292 | RETAINER KIT | |
| N9-21 | XKAY-00293 | GUIDE-BALL | |
| N9-22 | XKAY-00294 | PLATE-SET | |
| 9-3 | XKAY-00295 | PISTON KIT | |
| N9-31 | XKAY-00296 | PISTON ASSY | |
| 14 | XKAY-00297 | PLATE-FRICTION | |
| 15 | XKAY-00298 | PLATE | |
| 16 | XKAY-00299 | PISTON-BRAKE | |
| 16 | XKAY-00624 | PISTON-BRAKE | |
| 16 | XKAY-00626 | PISTON-BRAKE | |
| K17 | XKAY-00300 | O-RING | |
| K18 | XKAY-00301 | O-RING | |
| 19 | XKAY-00302 | SPRING | |
| 20 | XKAY-00303 | COVER-REAR | |
| 20 | XKAY-00623 | COVER-REAR | |
| 21 | XKAY-00304 | BEARING-NEEDLE | |
| 22 | XKAY-00562 | PIN | |
| 23 | XKAY-00306 | PLATE-VALVE | |
| 26 | XKAY-00308 | BOLT-WRENCH | |
| 27 | XKAY-00309 | PLUG | |
| K28 | XKAY-00141 | RING-BACK UP | |
| K29 | XKAY-00310 | O-RING | |
| 30 | XKAY-00311 | SPRING | |
| 31 | XKAY-00312 | CHECK | |
| 32 | XKAY-00313 | RELIEF VALVE ASSY | |
| 33 | XKAY-00314 | VLV ASSY-REACTIONLESS | |
| 34 | XKAY-00315 | TIME DELAY VALVE ASSY | |
| 35 | XKAY-00149 | BOLT-WRENCH | |
| 36 | XKAY-00150 | PLUG | |
| K37 | XKAY-00256 | O-RING | |
| 38 | XKAY-00140 | PLUG | |
| 39 | XKAY-00317 | PLUG | |
| 40 | XKAY-01983 | GAUGE-LEVEL | |
| 40-1 | XKAY-01985 | PLUG | |
| 41 | XKAY-00319 | FLANGE | |
| K42 | XKAY-00320 | O-RING | |
| 43 | XKAY-00321 | NAME PLATE | |
| 44 | XKAY-00277 | RIVET | |
| 45 | XKAY-00322 | PLUG | |
| K46 | XKAY-00324 | O-RING | |
| K47 | XKAY-00247 | O-RING | |
| K48 | XKAY-00605 | RING-BACK UP | |
| K | XKAY-00325 | SEAL KIT |
