- MAIN PUMP
- REGULATOR
- GEAR PUMP
- GEAR PUMP(#0390-)
- MAIN CONTROL VALVE(1/4, -#0198)
- MAIN CONTROL VALVE(2/4, -#0198)
- MAIN CONTROL VALVE(3/4, -#0198)
- MAIN CONTROL VALVE(4/4, -#0198)
- MAIN CONTROL VALVE(1/4, #0199-)
- MAIN CONTROL VALVE(2/4, #0199-)
- MAIN CONTROL VALVE(3/4, #0199-)
- MAIN CONTROL VALVE(4/4, #0199-)
- SWING MOTOR(-#0056)
- SWING MOTOR(#0057-)
- SWING REDUCTION GEAR(-#0056)
- SWING REDUCTION GEAR(#0057-)
- REMOTE CONTROL LEVER(LH/RH)
- REMOTE CONTROL VALVE(OPT,#0487-)
- REMOTE CONTROL PEDAL
- TRAVEL MOTOR(1/2, -#0130)
- TRAVEL MOTOR(1/2, #0131-)
- TRAVEL MOTOR(2/2, -#0130)
- TRAVEL MOTOR(2/2, #0131-)
- COUNTER BALANCE VALVE(-#0130)
- COUNTER BALANCE VALVE(#0131-)
- TURNING JOINT
- BOOM CYLINDER
- ARM CYLINDER
- BUCKET CYLINDER
- DOZER BLADE CYLINDER-REAR
- DOZER BLADE CYLINDER-FRONT
- OUTRIGGER CYLINDER
- BOOM CYLINDER(ADJUST BOOM)
- ADJUST CYLINDER
- SOLENOID VALVE
- STEERING VALVE
- TRANSMISSION CONTROL VALVE(-#0559)
- TRAVEL CONTROL VALVE(#0560-)
- BRAKE SUPPLY VALVE
- BRAKE VALVE(-#0572)
- BRAKE VALVE(#0573-)
- SINGLE PEDAL(DOUBLE ACTING)
- QUICK CLAMP ASSY
- QUICK CLAMP ASSY(#0345-)
- QUICK CLAMP ASSY 3(#0429-)
- QUICK CLAMP ASSY 4(#0429-)
- QUICK CLAMP CYLINDER(#0429-)

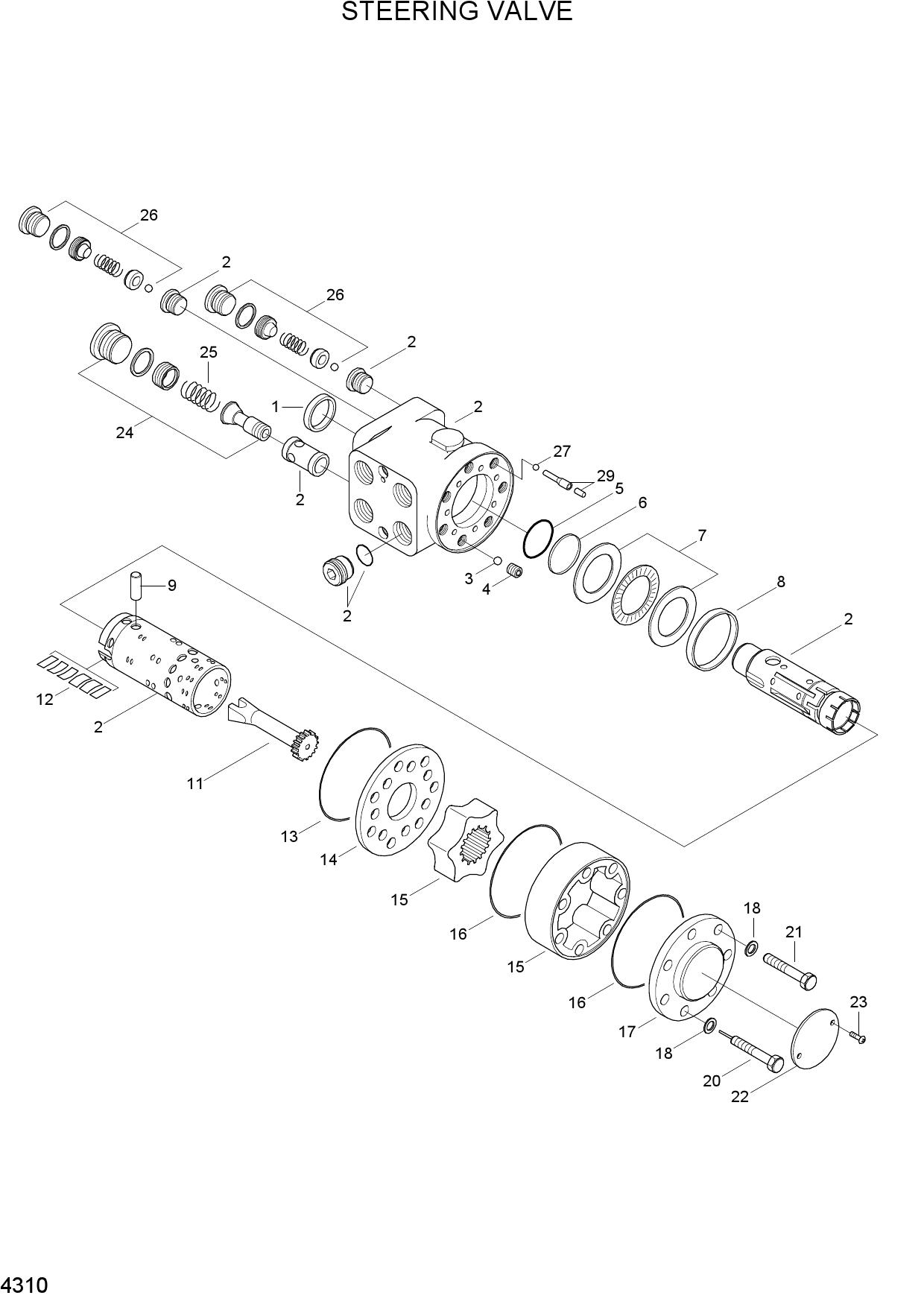

Запчасти для колесных экскаваторов Hyundai R140W-7 STEERING VALVE
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 81EK-00010 | STEERING VALVE | |
| K1 | YUBS-00001 | SEAL-DUST | |
| 3 | YUBS-00002 | BALL | |
| 4 | YUBS-00003 | BUSHING-THREAD | |
| K5 | YUBS-00056 | O-RING | |
| K6 | YUBS-00057 | RING-KING | |
| 7 | YUBS-00005 | BEARING ASSY | |
| 8 | YUBS-00006 | RING | |
| 9 | YUBS-00007 | PIN-CROSS | |
| 11 | YUBS-00008 | SHAFT-CARDAN | |
| 12 | YUBS-00058 | SPRING SET | |
| K13 | YUBS-00010 | O-RING | |
| 14 | YUBS-00011 | PLATE-DISTRIBUTOR | |
| 15 | YUBS-00059 | SET-GEAR WHEEL | |
| K16 | YUBS-00013 | O-RING | |
| 17 | YUBS-00014 | COVER-END | |
| K18 | YUBS-00015 | WASHER | |
| 20 | YUBS-00060 | SCREW-PIN | |
| 21 | YUBS-00061 | SCREW | |
| 22 | YUBS-00062 | PLATE-NAME | |
| 23 | YUBS-00037 | SCREW-DRIVE | |
| 24 | YUBS-00063 | RELIEF VALVE ASSY | |
| 25 | YUBS-00064 | SPRING-WIRE | |
| 26 | YUBS-00065 | VLV-SHOCK,COMPLETE | |
| 27 | YUBS-00066 | BALL | |
| 29 | YUBS-00067 | BUSHING-W/PIN | |
| K | YUBS-00068 | SEAL KIT |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R140W-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
