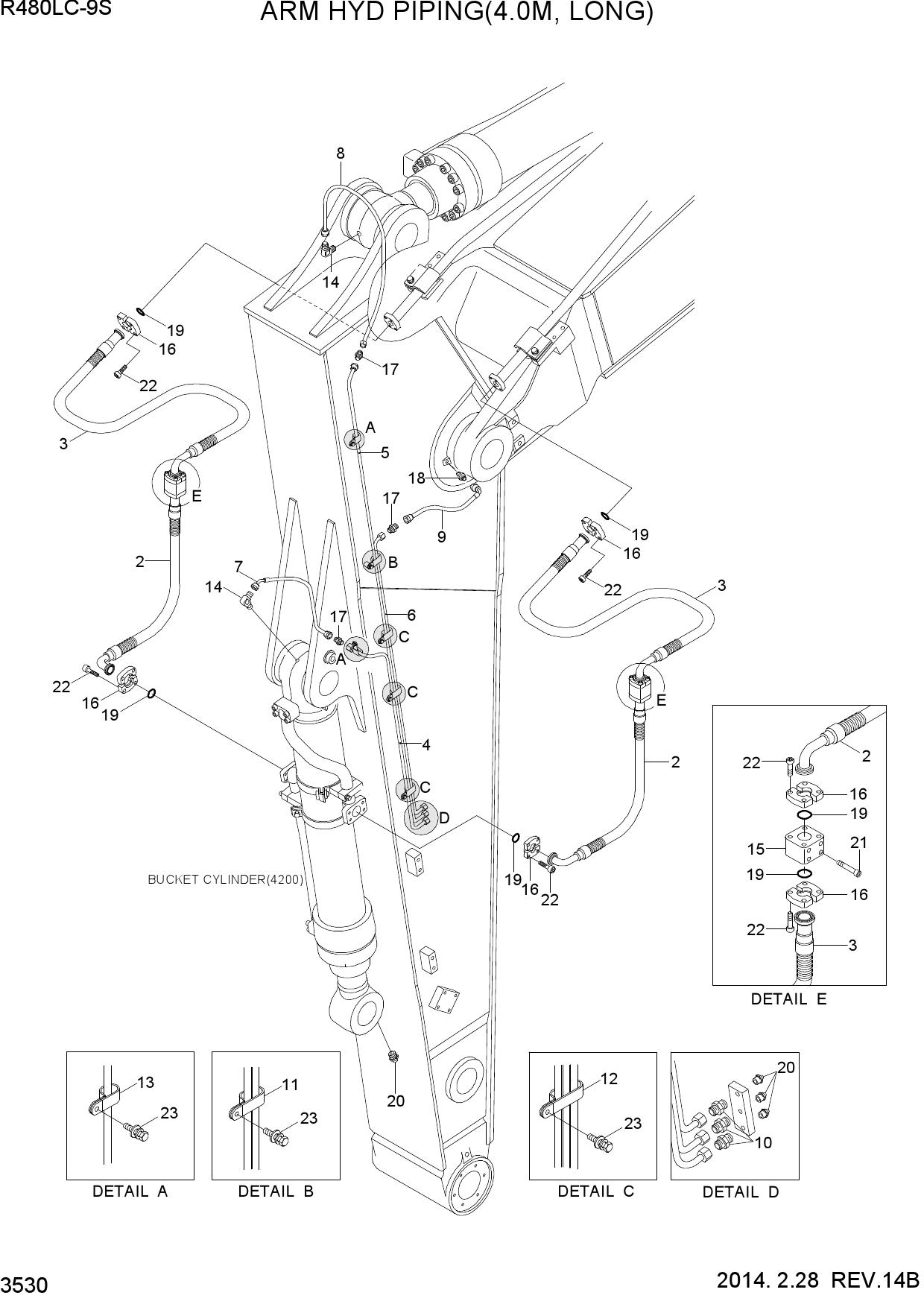

Запчасти для гусеничных экскаваторов Hyundai R480LC-9S ARM HYDRAULIC PIPING(4.0M, LONG)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31NB-61010 | HOSE ASSY-FLG 0X90 | |
| 3 | 31NB-61040 | HOSE ASSY-FLG 0X90 | |
| 3 | 31QB-61290 | HOSE ASSY(HI-GRADE) | |
| 4 | 31QB-64010 | PIPE WA | |
| 5 | 31QB-64020 | PIPE WA | |
| 6 | 31QB-64030 | PIPE WA | |
| 7 | P853-042012 | HOSE ASSY-SYN 0X45 | |
| 8 | P843-042018 | HOSE ASSY-SYN 0X0 | |
| 9 | P860-042007 | HOSE ASSY-SYN 0X90 | |
| 10 | 31Q8-60150 | CONNECTOR-TUBE | |
| 11 | 31Q8-60160 | CLAMP-TUBE | |
| 12 | 31Q8-60170 | CLAMP-TUBE | |
| 13 | 31Q8-60230 | CLAMP-TUBE | |
| 14 | 31NB-50280 | ELBOW-90 | |
| 15 | 31NA-61060 | BLOCK | |
| 16 | P174-200106 | FLANGE-SPLIT | |
| 17 | E131-0626 | CONNECTOR | |
| 18 | P010-430011 | CONNECTOR | |
| 19 | Y171-027004 | O-RING | |
| 20 | S651-810002 | NIPPLE-GREASE | |
| 21 | S109-120906 | BOLT-SOCKET | |
| 22 | S109-120506 | BOLT-SOCKET | |
| 23 | S035-082026 | BOLT-W/WASHER |
