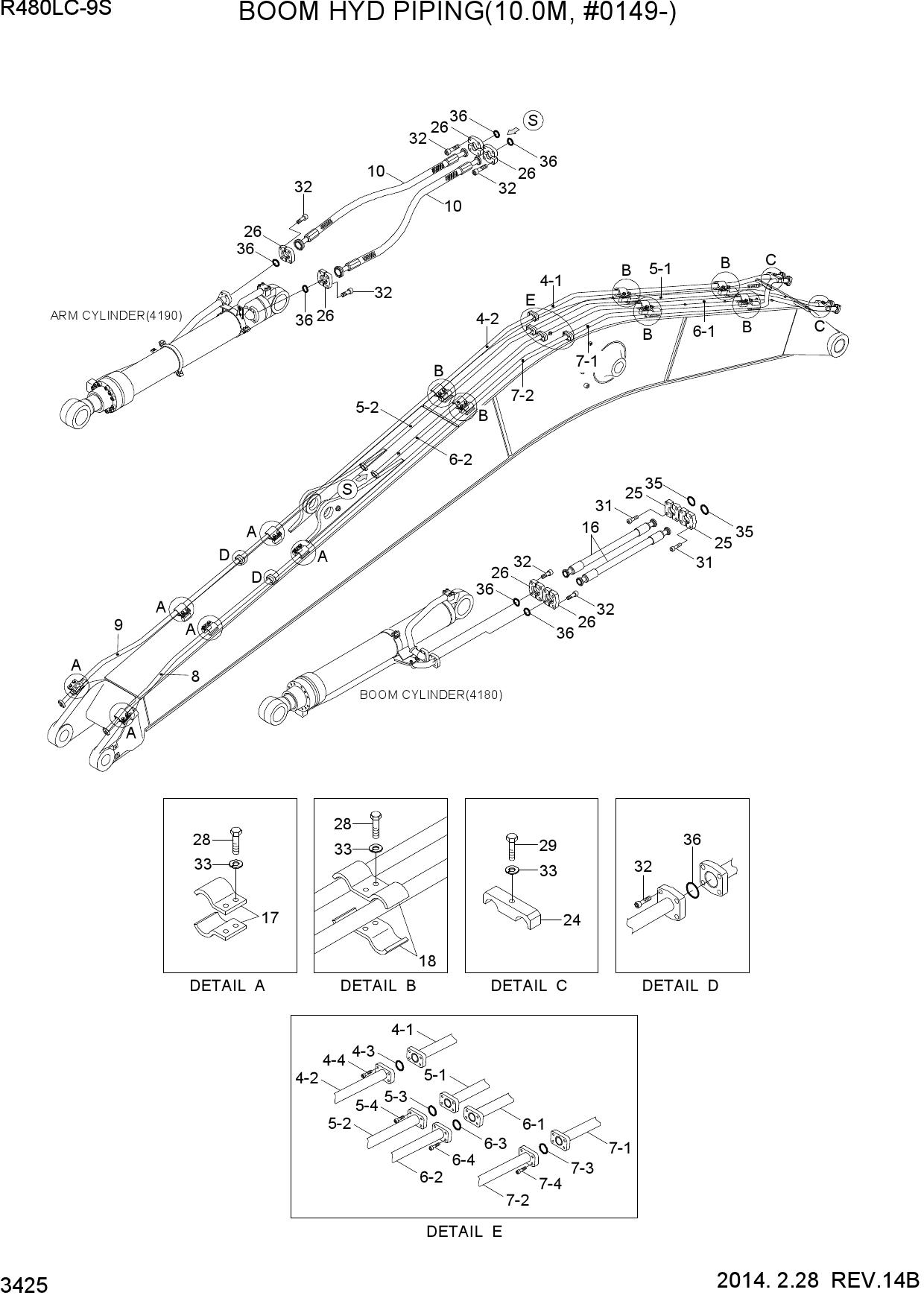

Запчасти для гусеничных экскаваторов Hyundai R480LC-9S BOOM HYD PIPING(10.0M, #0149-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31QB-50610 | PIPE ASSY | |
| 4-1 | 31QB-50620 | PIPE WA | |
| 4-2 | 31QB-50630 | PIPE WA | |
| 4-3 | Y171-027004 | O-RING | |
| 4-4 | S109-120506 | BOLT-SOCKET | |
| 5 | 31QB-50640 | PIPE ASSY | |
| 5-1 | 31QB-50350 | PIPE WA | |
| 5-2 | 31QB-50660 | PIPE WA | |
| 5-3 | Y171-027004 | O-RING | |
| 5-4 | S109-120506 | BOLT-SOCKET | |
| 6 | 31QB-50670 | PIPE ASSY | |
| 6-1 | 31QB-50380 | PIPE WA | |
| 6-2 | 31QB-50660 | PIPE WA | |
| 6-3 | Y171-027004 | O-RING | |
| 6-4 | S109-120506 | BOLT-SOCKET | |
| 7 | 31QB-50690 | PIPE ASSY | |
| 7-1 | 31QB-50700 | PIPE WA | |
| 7-2 | 31QB-50630 | PIPE WA | |
| 7-3 | Y171-027004 | O-RING | |
| 7-4 | S109-120506 | BOLT-SOCKET | |
| 8 | 31QB-50710 | PIPE WA | |
| 9 | 31QB-50720 | PIPE WA | |
| 10 | P680-207425 | HOSE ASSY-FLG | |
| 10 | 31QB-50460 | HOSE ASSY(HI-GRADE) | |
| 16 | 31NB-12433 | HOSE ASSY-FLG | |
| 16 | 31QB-50810 | HOSE ASSY | |
| 16 | 31QB-50820 | HOSE ASSY(HI-GRADE) | |
| 17 | 31ND-51001 | CLAMP ASSY | |
| 18 | 31ND-51011 | CLAMP ASSY | |
| 24 | 31NB-51310 | CLAMP ASSY | |
| 25 | P174-160105 | FLANGE-HYD,SPLIT | |
| 26 | P174-200106 | FLANGE-SPLIT | |
| 28 | S017-16050D | BOLT-HEX | |
| 29 | S017-16080D | BOLT-HEX | |
| 31 | S109-100356 | BOLT-SOCKET | |
| 32 | S109-120506 | BOLT-SOCKET | |
| 33 | S411-160006 | WASHER-SPRING | |
| 35 | Y171-024004 | O-RING | |
| 36 | Y171-024004 | O-RING |
