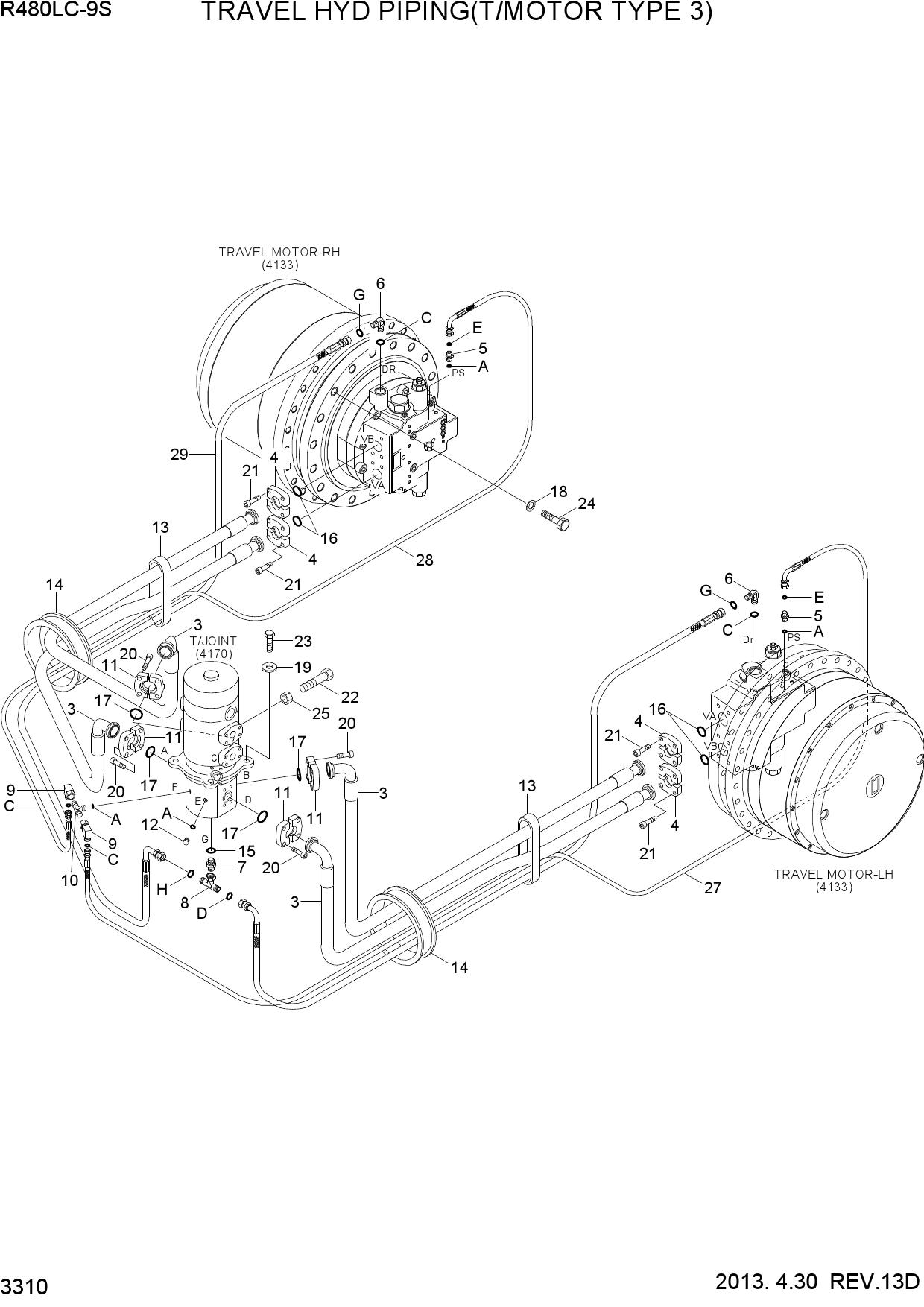

Запчасти для гусеничных экскаваторов Hyundai R480LC-9S TRAVEL HYD PIPING (T/MOTOR TYPE 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31KB-41010 | HOSE ASSY | |
| 4 | 31NA-12070 | FLANGE-HYD,SPLIT | |
| 5 | X500-110001 | CONNECTOR-ORFS | |
| 6 | X520-110003 | ELBOW-90,ORFS | |
| 7 | X500-210011 | CONNECTOR-ORFS | |
| 8 | X830-535353 | TEE-B/TYPE,SWIVEL,ORFS | |
| 9 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 10 | X810-045151 | TEE-B/TYPE,ORFS | |
| 11 | P173-160104 | FLANGE-HYD,SPLIT | |
| 12 | P220-110102 | PLUG-HEX | |
| 13 | 31E7-00801 | GROMMET | |
| 14 | 31E7-0079 | GROMMET | |
| 15 | 31E7-0181 | O-RING | |
| 16 | Y171-027004 | O-RING | |
| 17 | Y171-024004 | O-RING | |
| 18 | S441-200006 | WASHER-HARDENED | |
| 19 | S441-160006 | WASHER-HARDENED | |
| 20 | S109-100306 | BOLT-SOCKET | |
| 21 | S109-140456 | BOLT-SOCKET | |
| 22 | S017-20100D | BOLT-HEX | |
| 23 | S017-16035D | BOLT-HEX | |
| 24 | 31NB-40210 | BOLT-HEX | |
| 25 | S207-20100B | NUT-HEX | |
| 27 | P930-042072 | HOSE ASSY-ORFS 0X90 | |
| 28 | P930-042076 | HOSE ASSY-ORFS 0X90 | |
| 29 | P930-082057 | HOSE ASSY-ORFS 0X90 |
