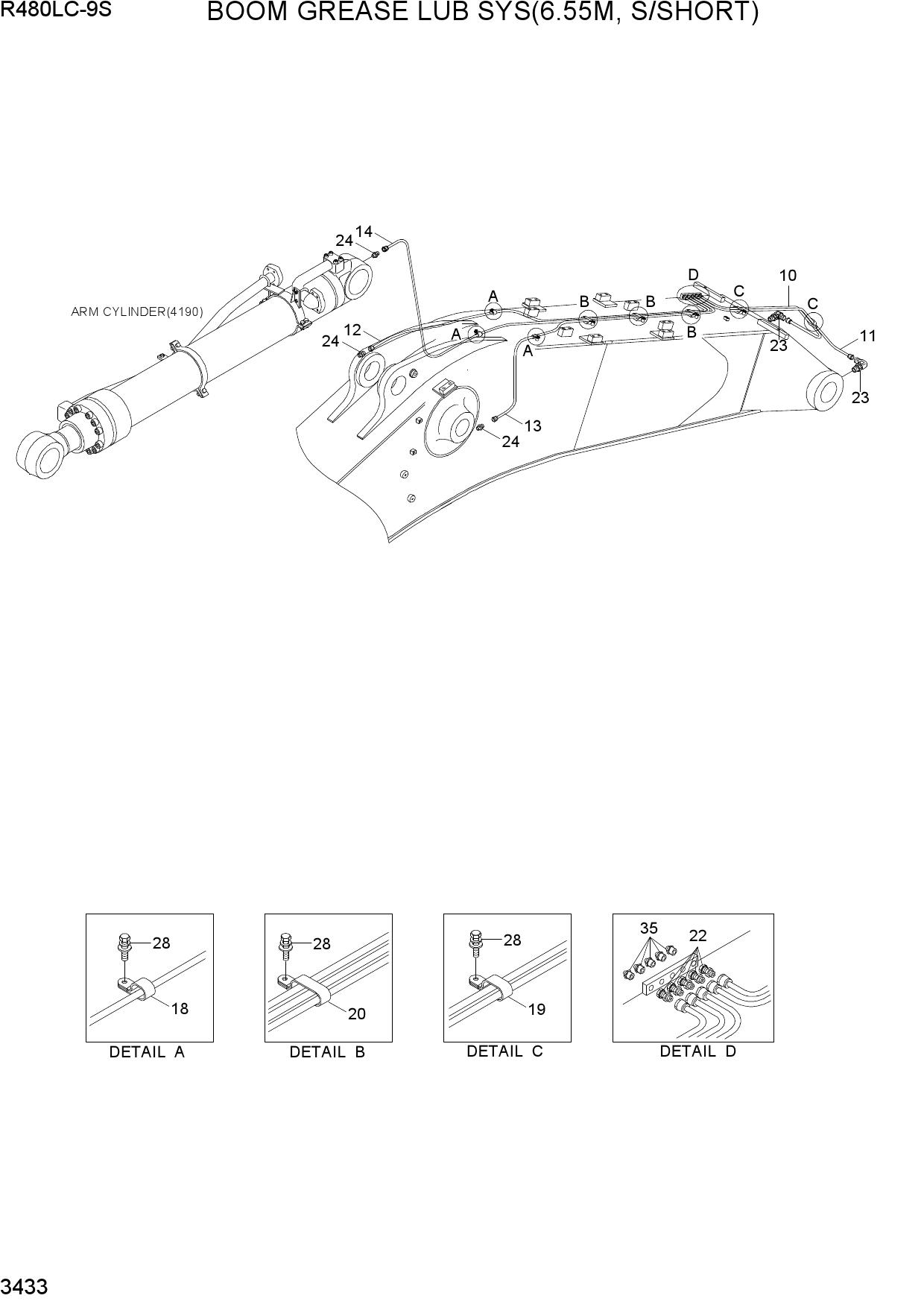

Запчасти для гусеничных экскаваторов Hyundai R480LC-9S BOOM GREASE LUB SYS(6.55M, S/SHORT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 10 | P840-042025 | HOSE ASSY-SYN THD | |
| 11 | P840-042026 | HOSE ASSY-SYN THD | |
| 12 | P840-042058 | HOSE ASSY-SYN THD | |
| 13 | P840-042060 | HOSE ASSY-SYN THD | |
| 14 | P840-042065 | HOSE ASSY-SYN THD | |
| 18 | 31Q6-50370 | CLAMP-HOSE | |
| 19 | 31Q6-50380 | CLAMP-HOSE | |
| 20 | 31Q6-50390 | CLAMP-HOSE | |
| 22 | 31QA-50200 | CONNECTOR | |
| 23 | 31NB-50280 | ELBOW-90 | |
| 24 | P010-430011 | CONNECTOR | |
| 28 | S035-082026 | BOLT-W/WASHER | |
| 35 | S651-810002 | NIPPLE-GREASE |
