- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYDRAULIC PIPING(TRAVEL)
- PILOT HYDRAULIC PIPING(CONTROL 1)
- PILOT HYDRAULIC PIPING(CONTROL 2)
- PILOT HYDRAULIC PIPING(CONTROL 3)
- PILOT HYDRAULIC PIPING(BASE 1)
- PILOT HYDRAULIC PIPING(BASE 2)
- PILOT HYDRAULIC PIPING(BASE 3)
- TRAVEL HYDRAULIC PIPING(STD)
- TRAVEL HYDRAULIC PIPING(OPT)
- BOOM HYDRAULIC PIPING(6.5M, STD, -#0100)
- BOOM HYDRAULIC PIPING(6.5M, STD, #0101-)
- BOOM GREASE LUB SYSTEM(6.5M, STD)
- BOOM HYDRAULIC PIPING(6.15M, #0004-0100)
- BOOM HYDRAULIC PIPING(6.15M, #0101-)
- BOOM GREASE LUB SYSTEM(6.15M, #0004-)
- BOOM SAFETY LOCK SYSTEM
- BOOM HYDRAULIC PIPING(8.6M, #0058-)
- BOOM GREASE LUB SYSTEM(8.6M, #0058-)
- ARM HYDRAULIC PIPING(3.2M, STD)
- ARM HYDRAULIC PIPING(2.5M)
- ARM HYDRAULIC PIPING(3.9M)
- ARM HYDRAULIC PIPING(4.3M)
- ARM SAFETY LOCK SYSTEM
- ARM HYDRAULIC PIPING(5.1M, #0058-)
- ARM HYDRAULIC PIPING(2.8M, #0930-)
- SINGLE ACTING MAIN PIPING KIT
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(CLOSE TYPE)

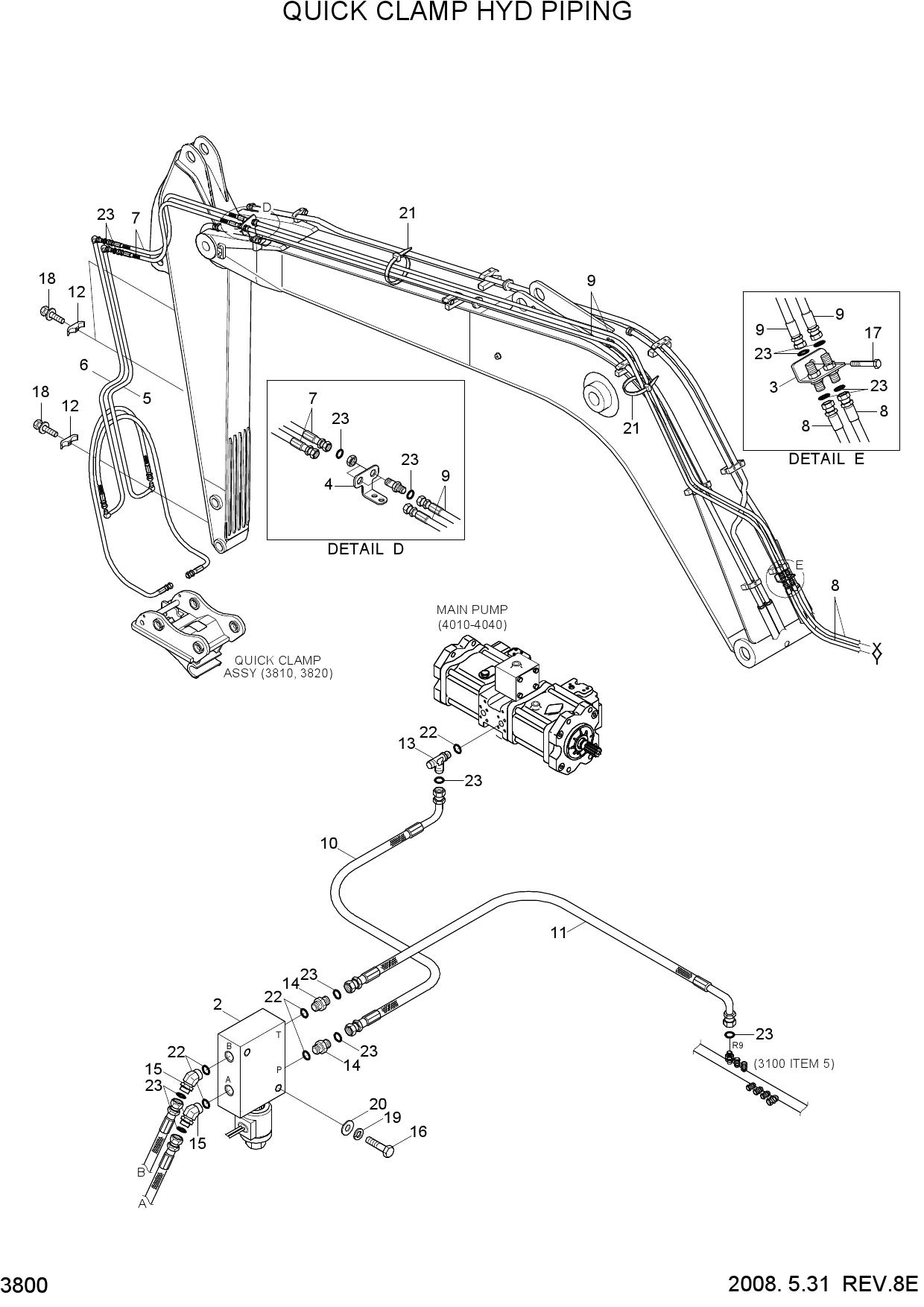

Запчасти для гусеничных экскаваторов Hyundai R360LC-7 QUICK CLAMP HYD PIPING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 34EA-91720 | SOLENOID VALVE | |
| 3 | 31N4-90680 | TERMAINAL-Q/CLAMP | |
| 4 | 31NB-95820 | TERMAINAL-Q/CLAMP | |
| 5 | 31NA-95721 | PIPE ASSY | |
| 5 | 31NA-95741 | PIPE ASSY | |
| 5 | 31NA-95781 | PIPE ASSY | |
| 6 | 31NA-95731 | PIPE ASSY | |
| 6 | 31NA-95751 | PIPE ASSY | |
| 6 | 31NA-95791 | PIPE ASSY | |
| 7 | P913-047038 | HOSE ASSY-ORFS 0X0 | |
| 7 | P913-047027 | HOSE ASSY-ORFS 0X0 | |
| 7 | P913-047058 | HOSE ASSY-ORFS 0X0 | |
| 7 | P913-047065 | HOSE ASSY-ORFS 0X0 | |
| 8 | P910-047042 | HOSE ASSY-ORFS 0X0 | |
| 9 | P910-047130 | HOSE ASSY-ORFS 0X0 | |
| 10 | 31NA-95820 | HOSE ASSY | |
| 11 | P920-042019 | HOSE ASSY-ORFS 0X45 | |
| 12 | 34EA-91811 | CLAMP-PIPE | |
| 13 | 31N4-22170 | TEE-RUN TYPE | |
| 14 | X500-110001 | CONNECTOR-ORFS | |
| 15 | X530-110001 | ELBOW-45,ORFS | |
| 16 | S017-100506 | BOLT-HEX | |
| 17 | S017-16085D | BOLT-HEX | |
| 18 | S037-103026 | BOLT-W/WASHER | |
| 19 | S411-100006 | WASHER-SPRING | |
| 20 | S403-101006 | WASHER-PLAIN | |
| 21 | S554-054300 | CLAMP-BAND | |
| 22 | S631-011004 | O-RING | |
| 23 | S621-011001 | O-RING |
