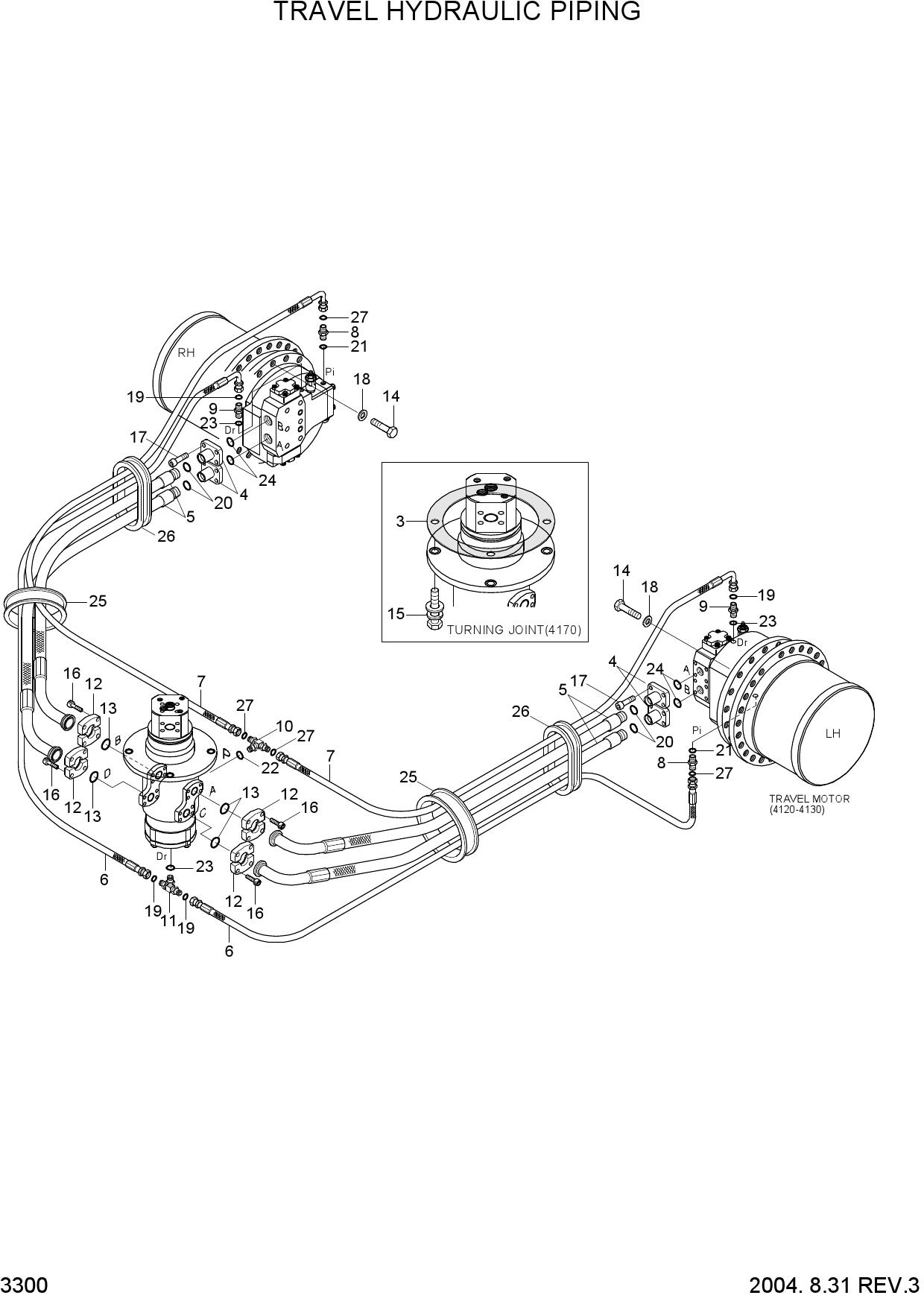

Запчасти для гусеничных экскаваторов Hyundai R360LC-7 TRAVEL HYDRAULIC PIPING(STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31N1-40970 | GASKET | |
| 4 | 32E9-00801 | FLANGE WA | |
| 5 | P980-167351 | HOSE ASSY-ORFSXFLG 0X90 | |
| 6 | P930-082054 | HOSE ASSY-ORFS 0X90 | |
| 7 | P410-042061 | HOSE ASSY-COMP 0X45 | |
| 7 | X410-042061 | HOSE ASSY-ORFS 0X45 | |
| 8 | P101-104045 | CONNECTOR-LONG | |
| 8 | X511-104515 | CONNECTOR-LONG,ORFS | |
| 9 | X511-108534 | CONNECTOR-LONG,ORFS | |
| 10 | P310-060404 | TEE-BRANCH TYPE | |
| 10 | X810-065151 | TEE-B/TYPE,ORFS | |
| 11 | X810-085353 | TEE-B/TYPE,ORFS | |
| 12 | P173-160104 | FLANGE-HYD,SPLIT | |
| 13 | Y171-024004 | O-RING | |
| 14 | S017-200752 | BOLT-HEX | |
| 15 | S037-123022 | BOLT-W/WASHER | |
| 16 | S109-100306 | BOLT-SOCKET | |
| 17 | S109-120356 | BOLT-SOCKET | |
| 18 | S441-200002 | WASHER-HARDENED | |
| 19 | S621-014001 | O-RING | |
| 20 | S621-021001 | O-RING | |
| 21 | S631-011004 | O-RING | |
| 22 | S631-014004 | O-RING | |
| 23 | S631-018004 | O-RING | |
| 24 | S631-029004 | O-RING | |
| 25 | S760-102200 | GROMMET | |
| 26 | S760-151224 | GROMMET | |
| 27 | S621-011001 | O-RING |
