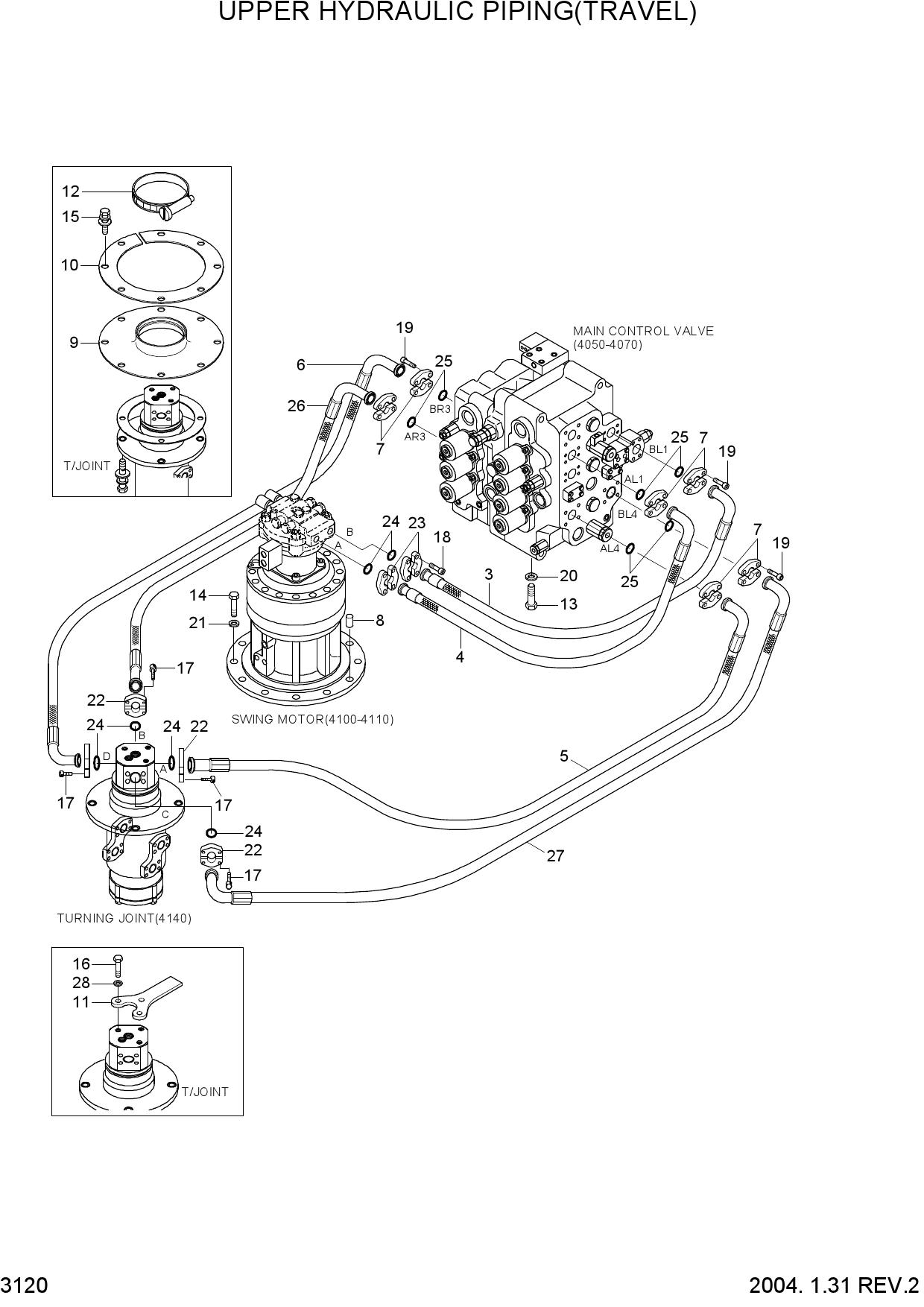

Запчасти для гусеничных экскаваторов Hyundai R360LC-7 UPPER HYDRAULIC PIPING(TRAVEL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31NA-12010 | HOSE ASSY | |
| 4 | 31NA-12020 | HOSE ASSY | |
| 5 | 31NA-12030 | HOSE ASSY | |
| 6 | 31NA-12040 | HOSE ASSY | |
| 7 | 31NA-12070 | FLANGE-HYD,SPLIT | |
| 8 | 31EH-30390 | PIN-DOWEL | |
| 8 | 31EH-30391 | PIN-DOWEL | |
| 9 | 31N1-40941 | RUBBER-T/JOINT | |
| 10 | 31N1-40951 | COVER-T/JOINT | |
| 11 | 31N1-40961 | BRACKET-T/JOINT | |
| 12 | S520-130000 | CLAMP-HOSE | |
| 13 | S017-160452 | BOLT-HEX | |
| 14 | S017-240852 | BOLT-HEX | |
| 15 | S037-102022 | BOLT-W/WASHER | |
| 16 | S017-140302 | BOLT-HEX | |
| 17 | S109-100306 | BOLT-SOCKET | |
| 18 | S109-120406 | BOLT-SOCKET | |
| 19 | S109-140406 | BOLT-SOCKET | |
| 20 | S411-160002 | WASHER-SPRING | |
| 21 | S411-240002 | WASHER-SPRING | |
| 22 | P173-160104 | FLANGE-HYD,SPLIT | |
| 23 | P174-160115 | FLANGE-SPLIT | |
| 24 | Y171-024004 | O-RING | |
| 25 | Y171-027004 | O-RING | |
| 26 | 31NA-12090 | HOSE ASSY | |
| 27 | 31NA-12100 | HOSE ASSY | |
| 28 | S411-140002 | WASHER-SPRING |
