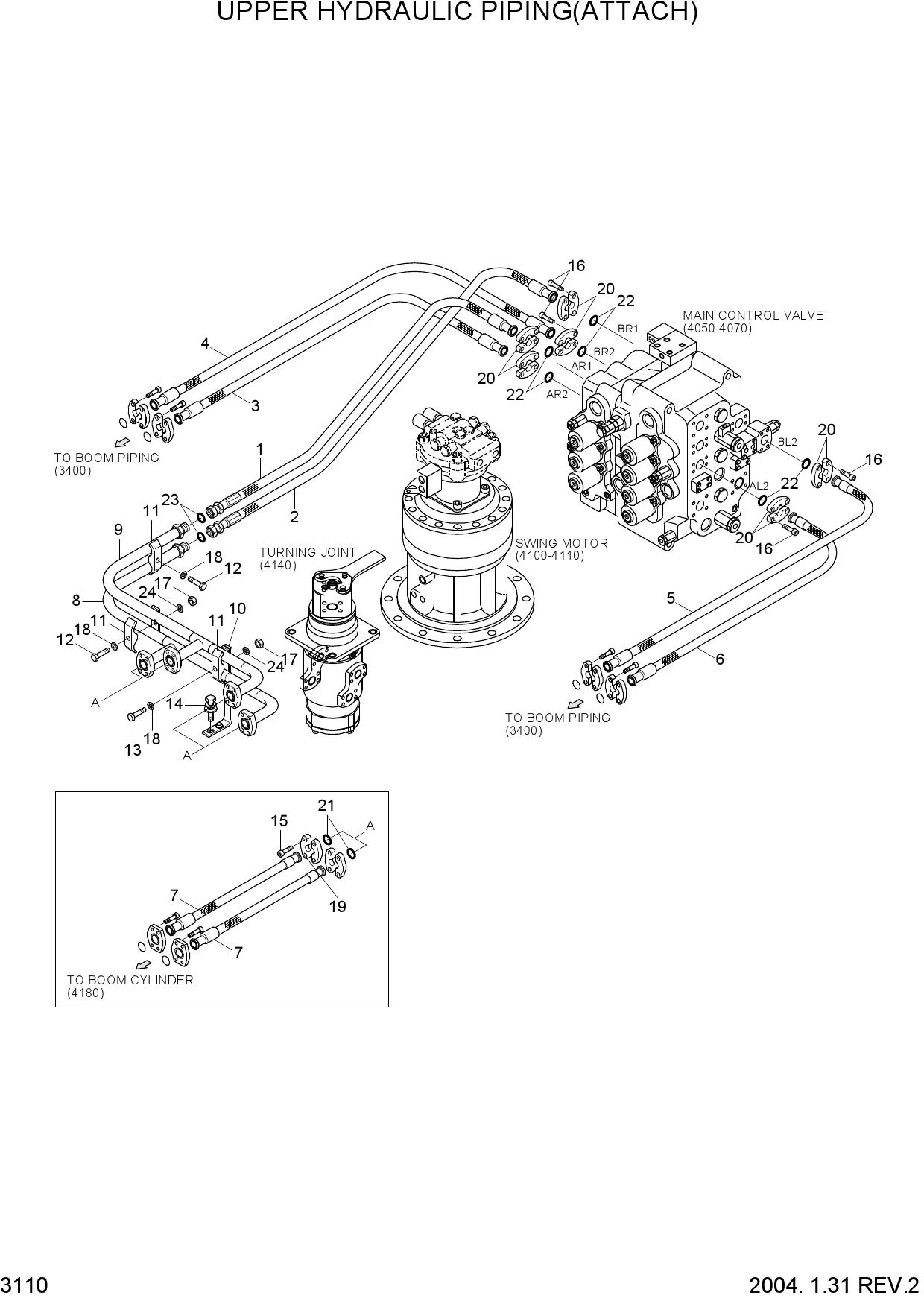

Запчасти для гусеничных экскаваторов Hyundai R360LC-7 UPPER HYDRAULIC PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31NA-13010 | HOSE ASSY | |
| 2 | 31NA-13020 | HOSE ASSY | |
| 3 | 31NA-13030 | HOSE ASSY | |
| 3 | 31NA-13031 | HOSE ASSY | |
| 4 | 31NA-13040 | HOSE ASSY | |
| 4 | 31NA-13041 | HOSE ASSY | |
| 5 | 31NA-13050 | HOSE ASSY | |
| 5 | 31NA-13051 | HOSE ASSY | |
| 6 | 31NA-13060 | HOSE ASSY | |
| 6 | 31NA-13061 | HOSE ASSY | |
| 7 | P683-167318 | HOSE ASSY-FLG 0X0 | |
| 7 | 31NA-13101 | HOSE ASSY | |
| 8 | 31NA-13070 | PIPE WA-BOOM "LC" | |
| 9 | 31NA-13080 | PIPE WA-BOOM "SC" | |
| 10 | 31NA-13090 | BRACKET-BOOM PIPE | |
| 11 | 31EM-12170 | CLAMP-PIPE | |
| 12 | S017-100702 | BOLT-HEX | |
| 13 | S017-100852 | BOLT-HEX | |
| 14 | S037-103022 | BOLT-W/WASHER | |
| 15 | S109-100306 | BOLT-SOCKET | |
| 16 | S109-140406 | BOLT-SOCKET | |
| 17 | S205-101002 | NUT-HEX | |
| 18 | S411-100002 | WASHER-SPRING | |
| 19 | P173-160104 | FLANGE-HYD,SPLIT | |
| 20 | 31NA-12070 | FLANGE-HYD,SPLIT | |
| 21 | Y171-024004 | O-RING | |
| 22 | Y171-027004 | O-RING | |
| 23 | S621-021001 | O-RING | |
| 24 | S403-101002 | WASHER-PLAIN |
