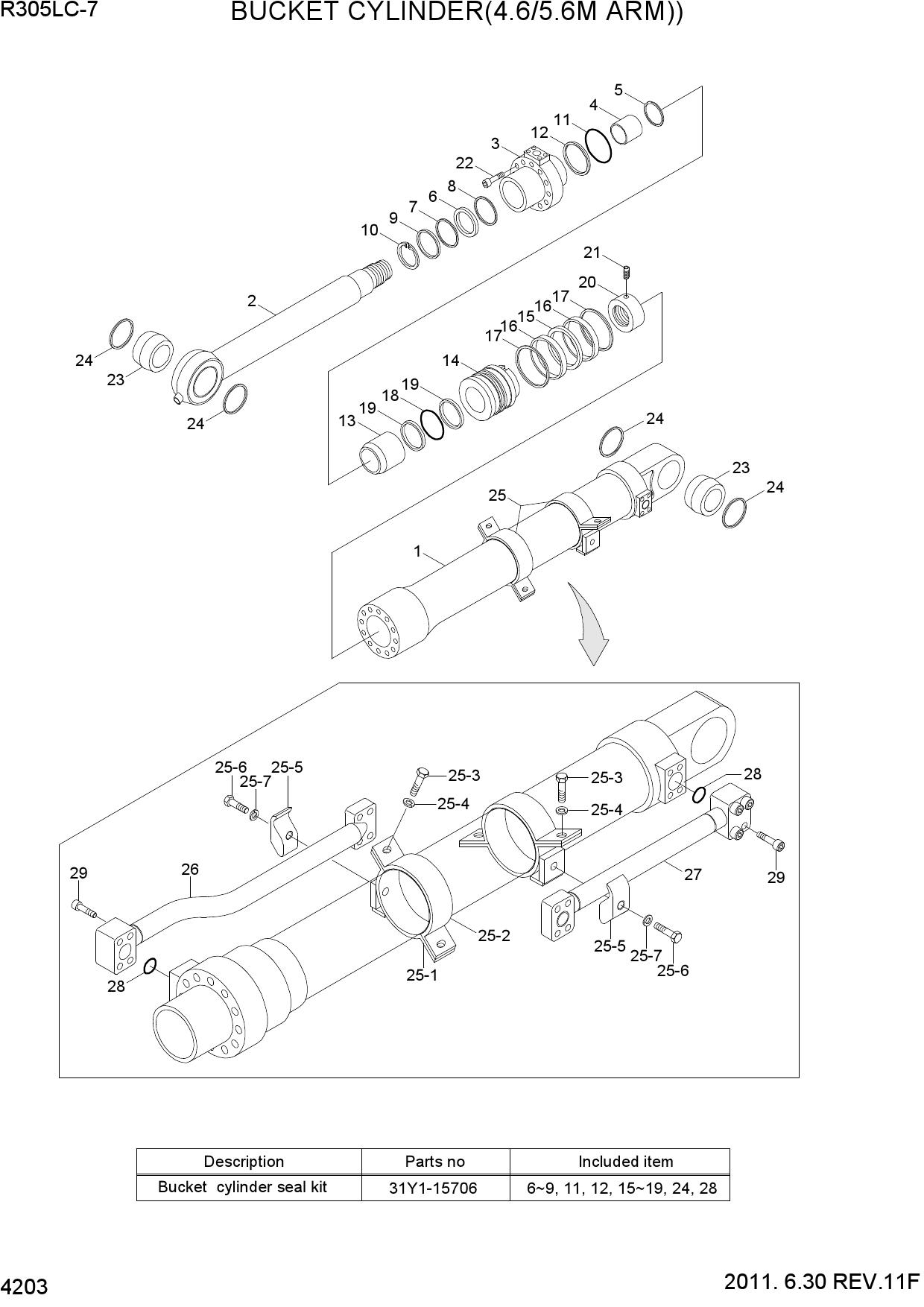

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 BUCKET CYLINDER(4.6/5.6M ARM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N6-60115 | BUCKET CYLINDER ASSY | |
| * | 31N6-60116 | BUCKET CYLINDER ASSY | |
| *-1 | 31Y1-15555 | BUCKET CYL SUB ASSY | |
| 1 | 31Y1-15565 | TUBE ASSY | |
| 2 | 31Y1-15615 | ROD ASSY | |
| 2 | 31Y1-15616 | ROD ASSY | |
| 3 | 31Y1-15645 | GLAND | |
| 4 | S732-085030 | BUSHING-DU | |
| 5 | Y191-092000 | RING-SNAP | |
| K6 | Y220-085011 | SEAL-ROD | |
| K7 | Y180-085020 | RING-BACK UP | |
| K8 | Y240-085013 | RING-BUFFER | |
| K9 | Y110-085011 | WIPER-DUST | |
| 10 | Y190-099000 | RING-SNAP | |
| K11 | S631-115004 | O-RING | |
| K12 | 31YC-BP115 | RING-BACK UP | |
| 13 | 31YC-26060 | RING-CUSHION | |
| 14 | 31Y1-15655 | PISTON | |
| 14 | 31Y1-15656 | PISTON | |
| K15 | Y420-125000 | SEAL-PISTON | |
| K16 | Y310-125000 | RING-WEAR | |
| K17 | Y440-125000 | RING-DUST | |
| K18 | S632-060004 | O-RING | |
| K18 | S632-065004 | O-RING | |
| K19 | S642-060003 | RING-BACK UP | |
| K19 | S642-065003 | RING-BACK UP | |
| 20 | 31YC-64030 | NUT-LOCK | |
| 20 | 31YC-64155 | NUT-LOCK | |
| 21 | S114-080144 | SCREW-SET | |
| 22 | S109-160804 | BOLT-SOCKET | |
| 23 | 31YC-11240 | BUSHING-PIN | |
| 24 | Y000-080200 | SEAL-DUST | |
| 25 | 31Y1-15665 | BAND ASSY | |
| 25-1 | 31Y1-15675 | BAND SUB ASSY | |
| 25-2 | 31YC-31500 | BAND | |
| 25-3 | S011-100352 | BOLT-HEX | |
| 25-4 | S411-100002 | WASHER-SPRING | |
| 25-5 | 31YC-36010 | CLAMP-PIPE | |
| 25-6 | S015-120502 | BOLT-HEX | |
| 25-7 | S411-120002 | WASHER-SPRING | |
| 26 | 31Y1-15685 | PIPE ASSY-R | |
| 27 | 31Y1-15695 | PIPE ASSY-B | |
| K28 | Y171-019004 | O-RING | |
| 29 | S107-100454 | BOLT-SOCKET | |
| K | 31Y1-15705 | SEAL KIT | |
| K | 31Y1-15706 | SEAL KIT |
