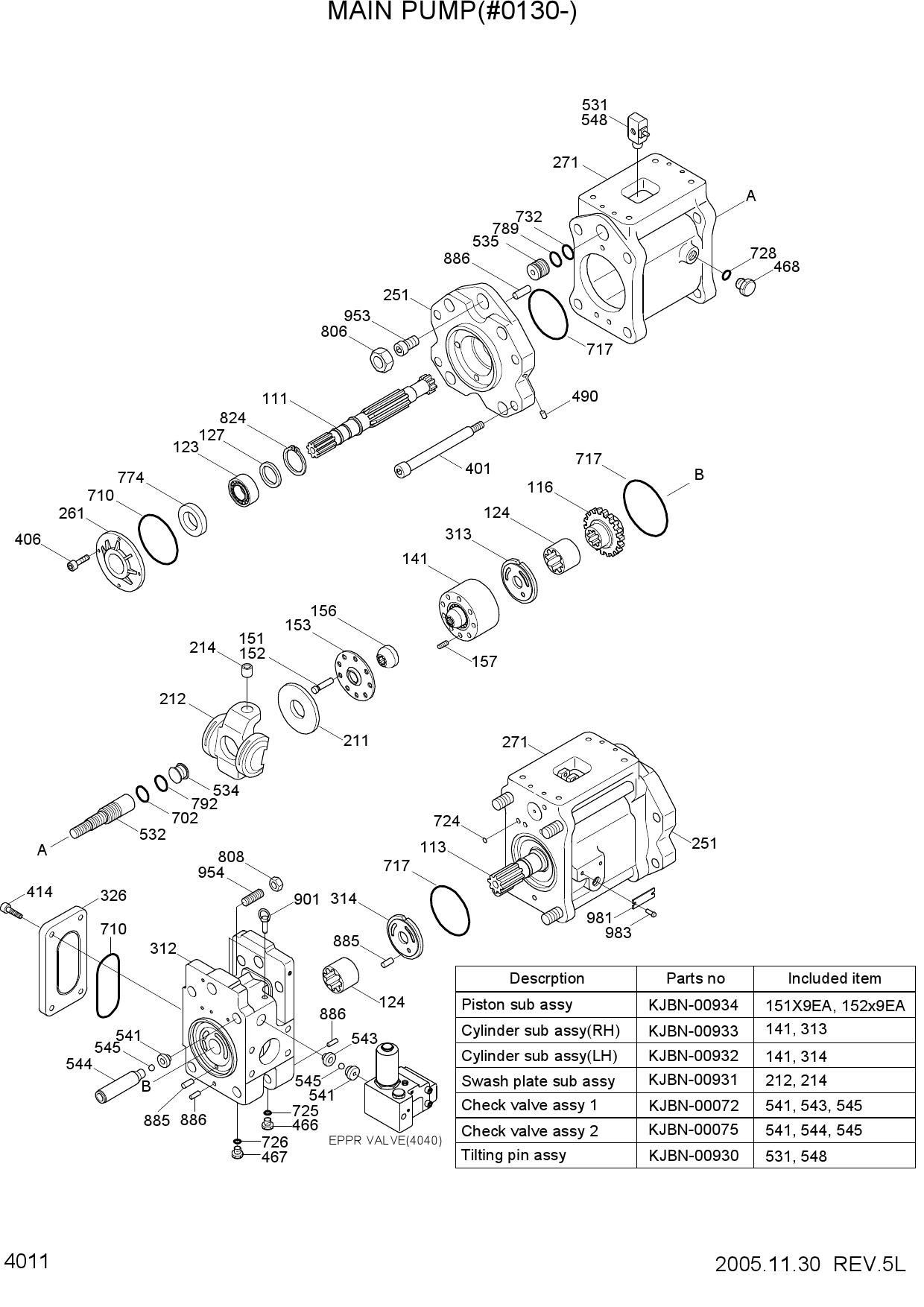

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 MAIN PUMP(#0130-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N8-10070 | MAIN PUMP | |
| *-1 | XJBN-00997 | MAIN PUMP UNIT | |
| 111 | XJBN-00953 | SHAFT(F)-DRIVE | |
| 113 | XJBN-00952 | SHAFT(R)-DRIVE | |
| 116 | XJBN-00951 | GEAR-1ST | |
| 123 | XJBN-00950 | BEARING-ROLLER | |
| 124 | XJBN-00949 | BEARING-NEEDLE | |
| 127 | XJBN-00081 | SPACER-BEARING | |
| NS141 | XJBN-00948 | BLOCK-CYLINDER | |
| NS151 | XJBN-00947 | PISTON | |
| NS152 | XJBN-00946 | SHOE | |
| 153 | XJBN-00945 | PLATE-SET | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | |
| 157 | XJBN-00944 | SPRING-CYLINDER | |
| 211 | XJBN-00085 | PLATE-SHOE | |
| NS212 | XJBN-00943 | PLATE-SWASH | |
| S214 | XJBN-00071 | BUSHING-TILTING | |
| 251 | XJBN-00942 | SUPPORT-SP | |
| 261 | XJBN-00941 | COVER(F)-SEAL | |
| 271 | XJBN-00088 | CASING-PUMP | |
| 312 | XJBN-00940 | BLOCK-VALVE | |
| NS313 | XJBN-00939 | PLATE(R)-VALVE | |
| NS314 | XJBN-00938 | PLATE(L)-VALVE | |
| S326 | XJBN-00937 | COVER | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | |
| 406 | XJBN-00355 | SCREW | |
| 414 | XJBN-00160 | SCREW-SOCKET | |
| 466 | XJBN-00356 | PLUG | |
| 467 | XJBN-00936 | PLUG | |
| 468 | XJBN-00357 | PLUG | |
| 490 | XJBN-00032 | PLUG | |
| NS531 | XJBN-00956 | PIN-TILTING | |
| 532 | XJBN-00955 | PISTON-SERVO | |
| 534 | XJBN-00092 | STOPPER(L) | |
| 535 | XJBN-00093 | STOPPER(S) | |
| NS541 | XJBN-00859 | SEAT | |
| NS543 | XJBN-00860 | STOPPER | |
| NS544 | XJBN-00861 | STOPPER | |
| S545 | XJBN-00359 | BALL-STEEL | |
| NS548 | XJBN-00360 | PIN-FEED BACK | |
| 702 | XJBN-00862 | O-RING | |
| 710 | XJBN-00878 | O-RING | |
| 717 | XJBN-00096 | O-RING | |
| 724 | XJBN-00361 | O-RING | |
| 725 | XJBN-00362 | O-RING | |
| 726 | XJBN-00233 | O-RING | |
| 728 | XJBN-00363 | O-RING | |
| 732 | XJBN-00863 | O-RING | |
| 774 | XJBN-00906 | SEAL-OIL | |
| 789 | XJBN-00864 | RING-BACK UP | |
| 792 | XJBN-00865 | RING-BACK UP | |
| 806 | XJBN-00396 | NUT | |
| 808 | XJBN-00364 | NUT | |
| 824 | XJBN-00866 | RING-SNAP | |
| 885 | XJBN-00103 | PIN-VALVE PLATE | |
| 886 | XJBN-00365 | PIN-SPRING | |
| 901 | XJBN-00393 | BOLT-EYE | |
| 953 | XJBN-00954 | SCREW-SET | |
| 954 | XJBN-00106 | SCREW-SET | |
| 981 | XJBN-00156 | NAME PLATE | |
| 683 | XJBN-00341 | PIN | |
| *-2 | XJBN-00964 | REGULATOR ASSY | |
| *-3 | XJBN-00935 | PUMP-GEAR | |
| *-4 | XJBN-00014 | EPPR VALVE ASSY | |
| 011 | XJBN-00934 | PISTON ASSY | |
| 013 | XJBN-00933 | CYLINDER(R) ASSY | |
| 014 | XJBN-00932 | CYLINDER(L) ASSY | |
| 030 | XJBN-00931 | SWASH PLATE ASSY | |
| 041 | XJBN-00072 | CHECK VALVE ASSY 1 | |
| 042 | XJBN-00075 | CHECK VALVE ASSY 2 | |
| 080 | XJBN-00014 | EPPR VALVE ASSY | |
| 530 | XJBN-00930 | TILTING PIN ASSY |
