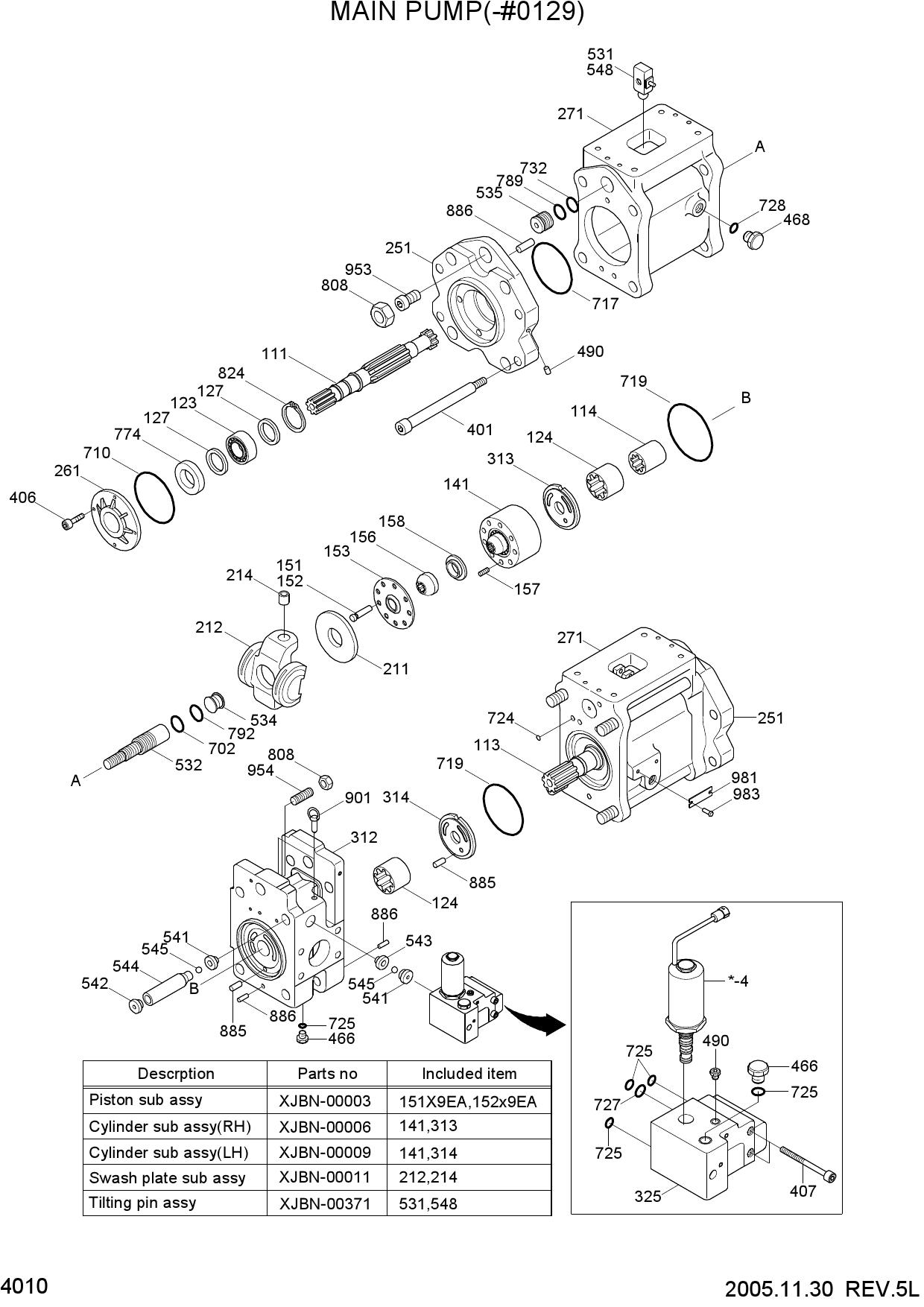

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 MAIN PUMP(-#0129)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N8-10011 | MAIN PUMP | |
| *-1 | XJBN-00996 | MAIN PUMP UNIT | |
| 111 | XJBN-00015 | SHAFT-DRIVE(F) | |
| 113 | XJBN-00153 | SHAFT-DRIVE(R) | |
| 114 | XJBN-00367 | COUPLING-SPLINE | |
| 123 | XJBN-00017 | BEARING-ROLLER | |
| 124 | XJBN-00018 | BEARING-NEEDLE | |
| 127 | XJBN-00019 | SPACER-BEARING | |
| S141 | XJBN-00007 | BLOCK-CYLINDER | |
| NS151 | XJBN-00004 | PISTON | |
| NS152 | XJBN-00748 | SHOE | |
| 153 | XJBN-00020 | PLATE-SET | |
| 156 | XJBN-00021 | BUSHING-SPHERICAL | |
| 157 | XJBN-00022 | SPRING-CYLINDER | |
| 211 | XJBN-00023 | PLATE-SHOE | |
| S212 | XJBN-00012 | PLATE-SWASH | |
| S214 | XJBN-00013 | BUSHING-TILTING | |
| 251 | XJBN-00024 | SUPPORT | |
| 261 | XJBN-00025 | COVER(FR)-SEAL | |
| 271 | XJBN-00026 | CASING-PUMP | |
| 312 | XJBN-00027 | BLOCK-VALVE | |
| S313 | XJBN-00008 | PLATE(R)-VALVE | |
| S314 | XJBN-00010 | PLATE(L)-VALVE | |
| 325 | XJBN-00380 | CASING-VALVE | |
| 401 | XJBN-00028 | SCREW | |
| 406 | XJBN-00355 | SCREW | |
| 407 | XJBN-00381 | SCREW | |
| 466 | XJBN-00356 | PLUG | |
| 468 | XJBN-00357 | PLUG | |
| 490 | XJBN-00032 | PLUG | |
| NS531 | XJBN-00369 | PIN-TILTING | |
| 532 | XJBN-00033 | PISTON-SERVO | |
| 534 | XJBN-00034 | STOPPER(L) | |
| 535 | XJBN-00035 | STOPPER(S) | |
| N541 | XJBN-00036 | SEAT | |
| N543 | XJBN-00037 | STOPPER 1 | |
| N544 | XJBN-00039 | STOPPER 2 | |
| 545 | XJBN-00359 | BALL-STEEL | |
| NS548 | XJBN-00360 | PIN-FEED BACK | |
| 702 | XJBN-00040 | O-RING | |
| 710 | XJBN-00041 | O-RING | |
| 717 | XJBN-00042 | O-RING | |
| 719 | XJBN-00043 | O-RING | |
| 724 | XJBN-00361 | O-RING | |
| 725 | XJBN-00362 | O-RING | |
| 727 | XJBN-00283 | O-RING | |
| 728 | XJBN-00363 | O-RING | |
| 732 | XJBN-00047 | O-RING | |
| 774 | XJBN-00048 | SEAL-OIL | |
| 789 | XJBN-00049 | RING-BACK UP | |
| 792 | XJBN-00050 | RING-BACK UP | |
| 808 | XJBN-00364 | NUT | |
| 824 | XJBN-00052 | RING-SNAP | |
| 885 | XJBN-00053 | PIN-2 | |
| 886 | XJBN-00365 | PIN-SPRING | |
| 901 | XJBN-00055 | BOLT-EYE | |
| 953 | XJBN-00056 | SCREW-SET | |
| 954 | XJBN-00057 | SCREW-SET | |
| 981 | XJBN-00156 | NAME PLATE | |
| 983 | XJBN-00341 | PIN | |
| *-2 | XJBN-00001 | REGULATOR | |
| *-3 | XJBN-00002 | GEAR PUMP | |
| *-4 | XJBN-00014 | EPPR VALVE ASSY | |
| 011 | XJBN-00003 | PISTON SUB ASSY | |
| 013 | XJBN-00006 | CYLINDER ASSY-RH | |
| 014 | XJBN-00009 | CYLINDER ASSY-LH | |
| 030 | XJBN-00011 | SWASH PLATE ASSY | |
| 053 | XJBN-00371 | TILTING PIN ASSY |
