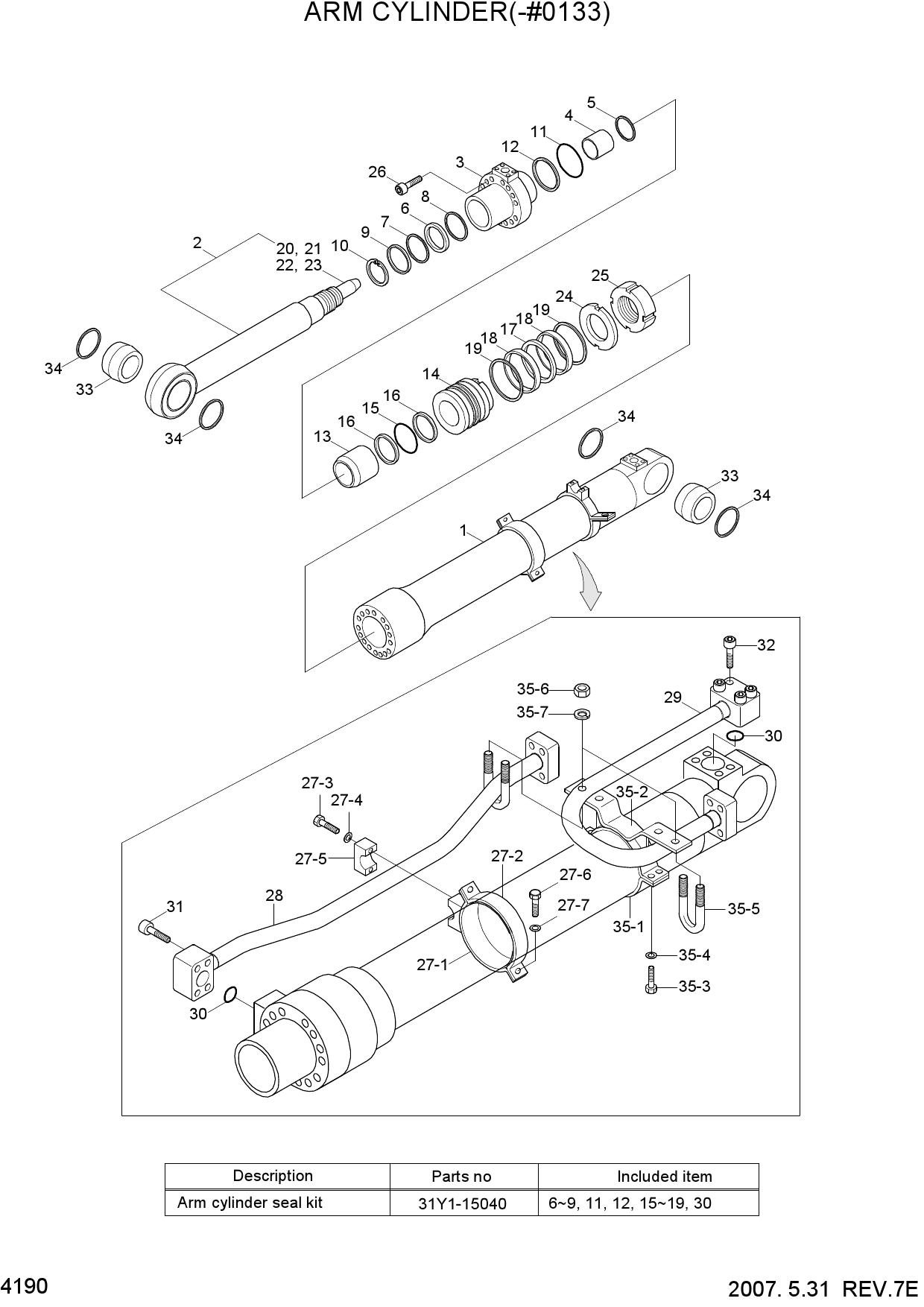

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 ARM CYLINDER(-#0133)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N8-50130 | ARM CYLINDER | |
| * | 31N8-52130 | ARM CYLINDER ASSY | |
| *-1 | 31Y1-14900 | ARM CYLINDER SUB | |
| 1 | 31Y1-14910 | TUBE ASSY | |
| 2 | 31Y1-14960 | ROD ASSY | |
| N3 | 31Y1-14990 | GLAND | |
| 4 | S732-110045 | BUSHING | |
| 5 | Y191-117000 | RING-SNAP | |
| K6 | Y220-110011 | SEAL-ROD | |
| K7 | Y180-110020 | RING-BACK UP | |
| K8 | Y240-110013 | RING-BUFFER | |
| K9 | Y110-110011 | WIPER-DUST | |
| 10 | Y190-126000 | RING-SNAP | |
| K11 | S631-140004 | O-RING | |
| K12 | S641-140003 | RING-BACK UP | |
| 13 | 31YC-23050 | RING-CUSHION | |
| 14 | 31Y1-15000 | PISTON | |
| K15 | S632-095004 | O-RING | |
| K16 | S642-095003 | RING-BACK UP | |
| K17 | Y420-150000 | SEAL-PISTON | |
| K18 | Y310-150003 | RING-WEAR | |
| K19 | Y440-150002 | RING-DUST | |
| 24 | 31YC-66081 | WASHER-LOCK | |
| 25 | 31YC-61143 | NUT-LOCK | |
| 26 | S109-200904 | BOLT-SOCKET | |
| 33 | 31YC-11161 | BUSHING-PIN | |
| 34 | Y000-090000 | SEAL-DUST | |
| 27 | 31Y1-15010 | BAND ASSY | |
| 27-1 | 31Y1-15050 | BAND SUB ASSY | |
| 27-2 | 31YC-31420 | BAND | |
| 27-3 | S015-120452 | BOLT-HEX | |
| 27-4 | S411-120002 | WASHER-SPRING | |
| 27-5 | 31YC-37040 | CLAMP-PIPE | |
| 27-6 | S015-120402 | BOLT-HEX | |
| 27-7 | S411-120002 | WASHER-SPRING | |
| 28 | 31Y1-15020 | PIPE ASSY-R | |
| 29 | 31Y1-15030 | PIPE ASSY-B | |
| K30 | Y171-024004 | O-RING | |
| 31 | S107-120554 | BOLT-SOCKET | |
| 32 | S107-100554 | BOLT-SOCKET | |
| 35 | 31Y1-21920 | BAND ASSY-B | |
| 35-1 | 31Y1-21930 | BAND SUB ASSY | |
| 35-2 | 31YC-32240 | BAND | |
| 35-3 | S015-120452 | BOLT-HEX | |
| 35-4 | S411-120002 | WASHER-SPRING | |
| 35-5 | S071-023430 | U-BOLT | |
| 35-6 | S201-101002 | NUT-HEX | |
| 35-7 | S411-100002 | WASHER-SPRING | |
| K | 31Y1-15040 | SEAL KIT | |
| K | 31Y1-18250 | SEAL KIT |
