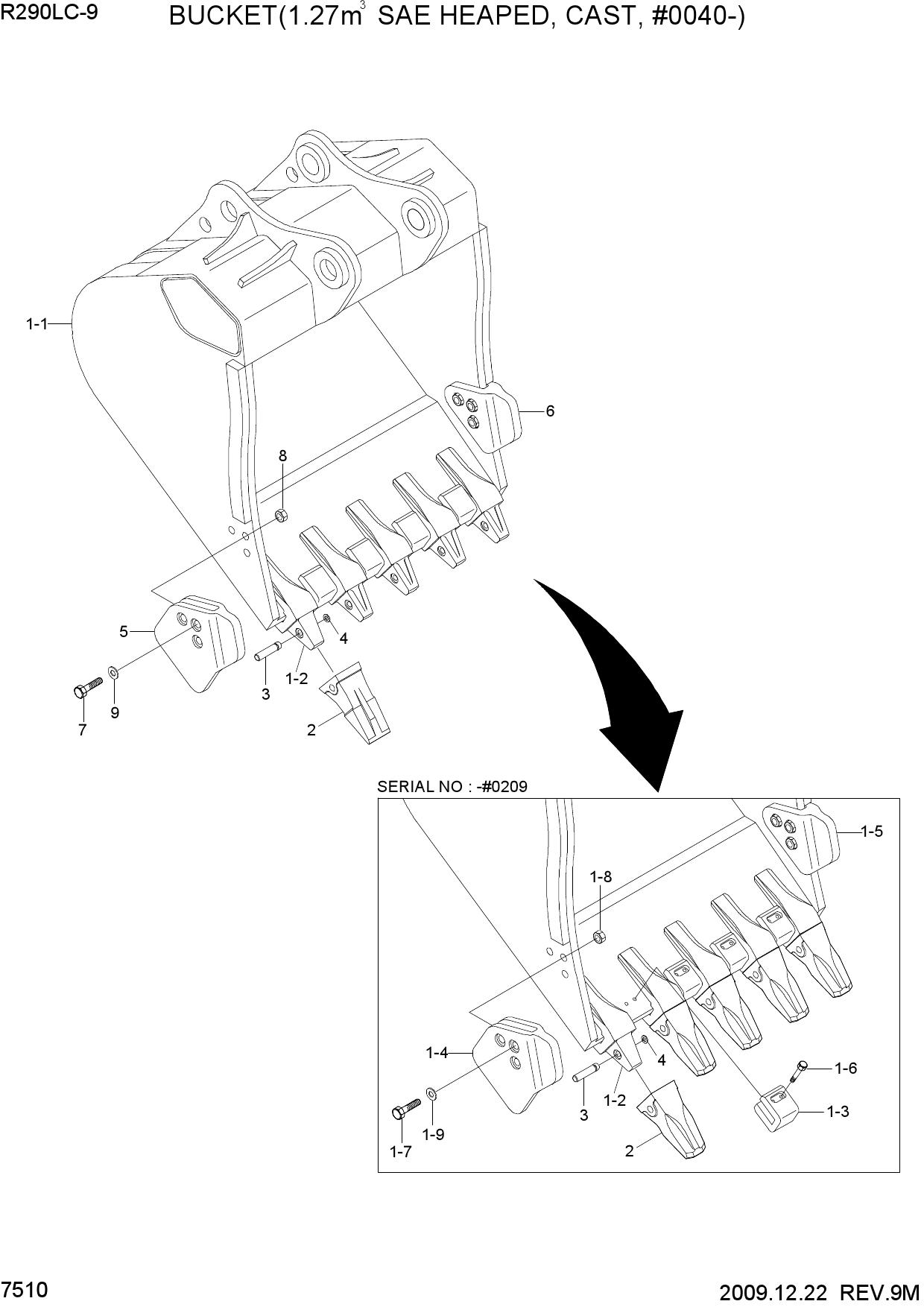

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 BUCKET(1.27M3 SAE HEAPED, CAST, #0040-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 68N8-30000GG | BUCKET ASSY-CASTING | |
| * | 68N8-30001GG | BUCKET ASSY-CASTING | |
| N1 | 68N8-30010GG | BUCKET WA-CASTING | |
| N1 | 68N8-30011GG | BUCKET WA-CASTING | |
| N1-1 | 68N8-30020 | BUCKET-CASTING | |
| 1-2 | 61N8-31320 | ADAPTER-TOOTH | |
| N1-3 | 68N8-30030 | REINF-FRONT | |
| N1-4 | 68N8-30040 | SIDE REINF-LH | |
| N1-5 | 68N8-30050 | SIDE REINF-RH | |
| 1-7 | S019-18085D | BOLT-HEX | |
| 1-8 | S019-18070D | BOLT-HEX | |
| 1-9 | S205-18100B | NUT-HEX | |
| 1-10 | S411-180006 | WASHER-SPRING | |
| 2 | 61N8-31310GG | POINT-TOOTH | |
| K3 | E262-5004 | PIN-TOOTH | |
| K4 | 61E5-11150 | WASHER-LOCK | |
| N5 | 68N8-30040GG | SIDE REINF-LH | |
| N6 | 68N8-30050GG | SIDE REINF-RH | |
| 7 | S019-18065D | BOLT-HEX | |
| 8 | S205-18100B | NUT-HEX | |
| 9 | S411-180006 | WASHER-SPRING | |
| K | E262-5004-S | TOOTH PIN KIT |
