- BOOM MOUNTING(6.25M, STD)
- BOOM MOUNTING(LONG REACH, #0012-)
- BOOM MOUNTING(LONG REACH, 8.5M)
- BOOM(6.25M, STD)
- BOOM(6.25M, HEAVY DUTY, #0023-)
- BOOM(10.2M, LONG REACH, #0012-)
- BOOM(8.5M, LONG REACH)
- ARM(3.05M, STD)
- ARM(7.85M, LONG REACH, #0012-)
- ARM(2.1M, #0023-)
- ARM(2.5M, #0023-)
- ARM(2.85M)
- ARM(3.75M, #0023-)
- ARM(3.05M, HEAVY DUTY, #0023-)
- ARM(4.6M)
- BUCKET CONTROL GROUP
- BUCKET CONTROL GROUP(4.6M ARM)
- BUCKET CONTROL GROUP(LONG REACH)
- BUCKET(1.27M3 SAE HEAPED, STD)
- BUCKET(1.27M3 SAE HEAPED, STD)
- BUCKET(1.27M3 SAE HEAPED)
- BUCKET(1.20M3 SAE HEAPED, -#0083)
- BUCKET(0.79M3 SAE HEAPED)
- BUCKET(1.03M3 SAE HEAPED)
- BUCKET(1.50M3 SAE HEAPED)
- BUCKET(1.73M3 SAE HEAPED)
- BUCKET(1.85M3 SAE HEAPED)
- BUCKET(1.38M3 SAE HEAPED)
- BUCKET(0.92M3 SAE HEAPED, -#2168)
- BUCKET(1.07M3 SAE HEAPED, HEAVY DUTY)
- BUCKET(1.15M3 SAE HEAPED, HEAVY DUTY)
- BUCKET(1.27M3 SAE HEAPED, HEAVY DUTY)
- BUCKET(1.46M3 SAE HEAPED, HEAVY DUTY)
- BUCKET(1.16M3 SAE HEAPED, ROCK)
- BUCKET(1.49M3 SAE HEAPED, ROCK)
- BUCKET(1.16M3 SAE HEAPED, ROCK)
- BUCKET(1.27M3 SAE HEAPED, CAST)
- BUCKET(1.38M3 SAE HEAPED, CAST)
- BUCKET(0.52M3 SAE HEAPED, LONG REACH)
- BUCKET(0.50M3 SAE HEAPED, S/FINISING)
- BUCKET(0.55M3 SAE HEAPED, S/FINISING)
- BUCKET(1.27M3 SAE HEAPED, CAST, #0040-)
- BUCKET(1.09M3 SAE HEAPED, H/DUTY,#0603-)
- BUCKET(1.28M3 SAE HEAPED, H/DUTY,#0767-)
- BUCKET(0.55M3 SAE HEAPED, D/CLEANING)
- BUCKET(1.33M3 SAE HEAPED, ROCK, #1945-)

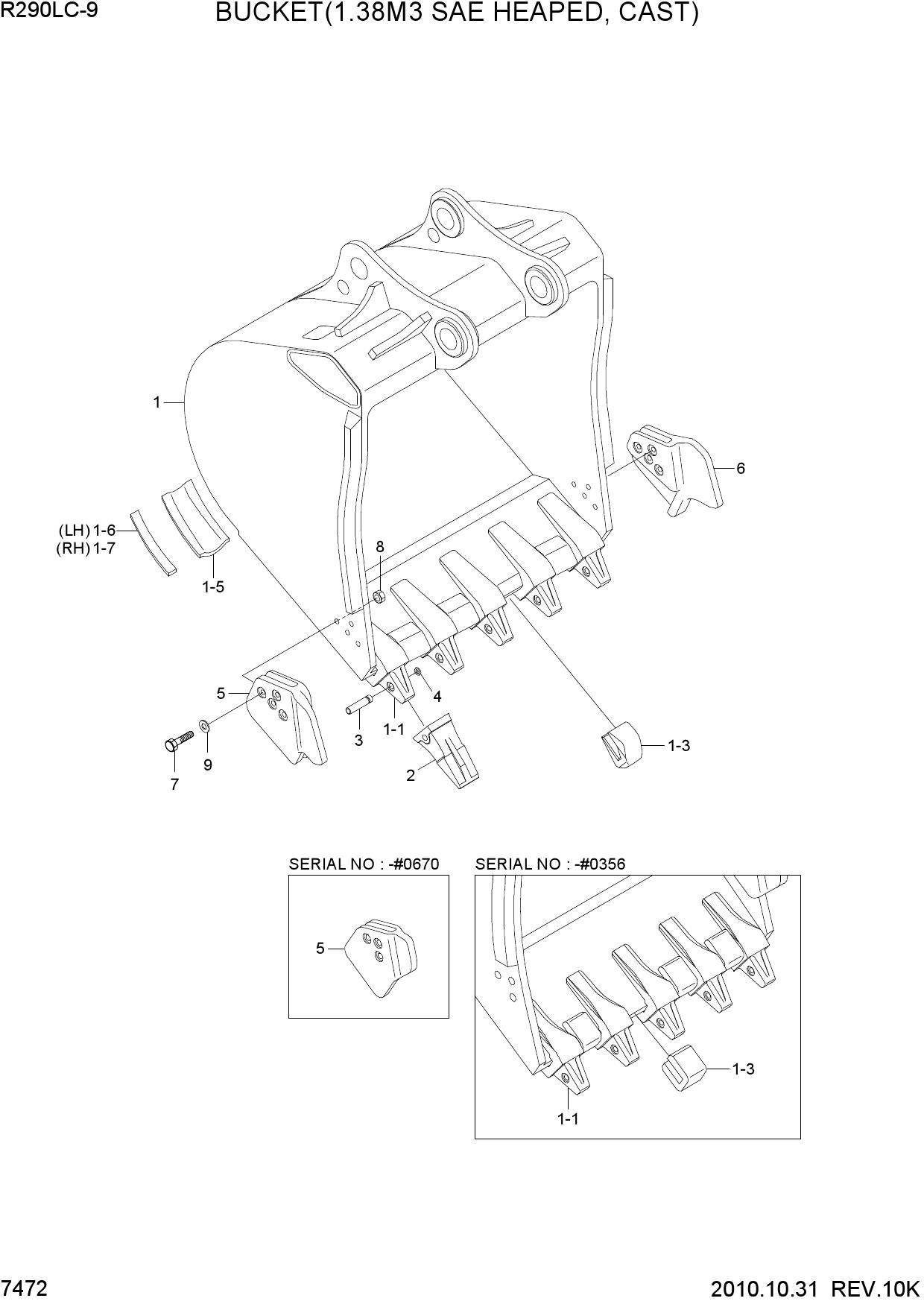

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 BUCKET(1.38M3 SAE HEAPED, CAST)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 68N8-32000GG | BUCKET ASSY-CASTING | |
| * | 68N8-32001GG | BUCKET ASSY-CASTING | |
| N1 | 68N8-32010GG | BUCKET WA-CASTING | |
| N1 | 68N8-32011GG | BUCKET WA-CASTING | |
| 1-1 | 68N8-31320 | ADAPTER-TOOTH | |
| 1-1 | 68N8-31321 | ADAPTER-TOOTH | |
| N1-3 | 68N8-30031 | REINF-FRONT | |
| 1-3 | 68N8-30032 | REINF-FRONT | |
| 1-3 | 68N8-31030 | REINF-FRONT | |
| N1-5 | 68N8-30080 | REINF-BOTTOM | |
| 1-5 | 68N8-32060 | REINF-BOTTOM | |
| 1-6 | 68N8-32070 | REINF-BOTTOM,LH | |
| 1-7 | 68N8-32080 | REINF-BOTTOM,RH | |
| 2 | 61N8-31310GG | POINT-TOOTH | |
| K3 | E262-5004 | PIN-TOOTH | |
| K4 | 61E5-11150 | WASHER-LOCK | |
| N5 | 68N8-30040GG | SIDE REINF-LH | |
| 5 | 68N8-31040 | SIDE REINF-LH | |
| N6 | 68N8-30050GG | SIDE REINF-RH | |
| 6 | 68N8-31050 | SIDE REINF-RH | |
| 7 | S019-18065D | BOLT-HEX | |
| 7 | S019-18065D | BOLT-HEX | |
| 8 | S205-18100B | NUT-HEX | |
| 8 | S205-18100B | NUT-HEX | |
| 9 | S411-180006 | WASHER-SPRING | |
| 9 | S411-180006 | WASHER-SPRING | |
| K | E262-5004-S | TOOTH PIN KIT |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R290LC-9 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
