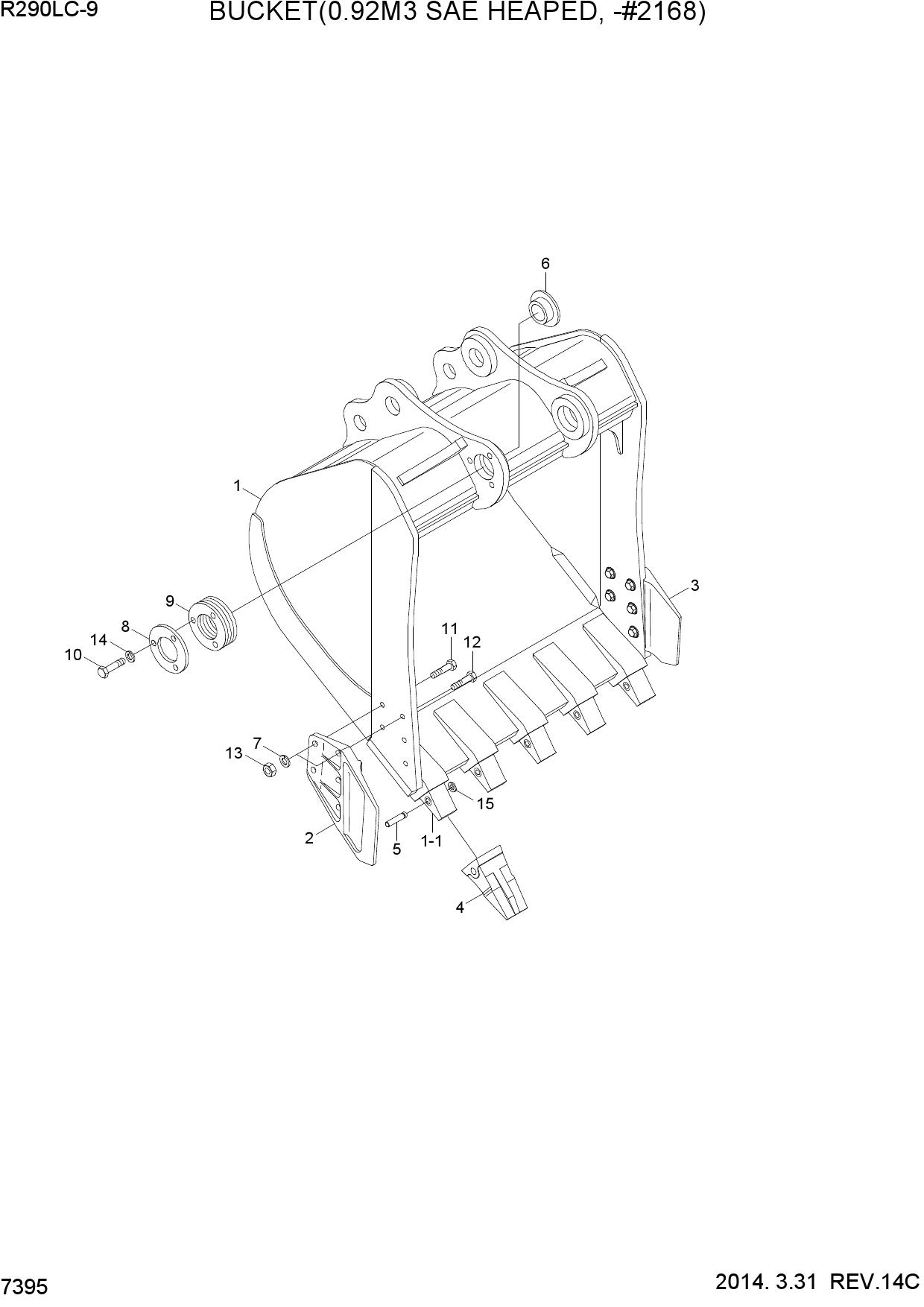

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 BUCKET(0.92M3 SAE HEAPED, -#2168)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 61Q6-31000 | BUCKET ASSY | |
| * | 61Q6-31001 | BUCKET ASSY | |
| * | 61Q6-31002 | BUCKET ASSY | |
| 1 | 68N6-31010 | BUCKET WA | |
| 1 | 68N6-31011 | BUCKET WA | |
| 1 | 68N6-31012 | BUCKET WA | |
| 1-1 | 61Q6-31320 | ADAPTER-TOOTH | |
| 2 | 63E1-3533GG | SIDE CUTTER-LH | |
| 3 | 63E1-3534GG | SIDE CUTTER-RH | |
| 4 | 61Q6-31310GG | POINT-TOOTH | |
| 5 | E161-3035 | PIN-TOOTH | |
| 6 | 61N6-30600 | BUSHING | |
| 7 | S411-220006 | WASHER-SPRING | |
| 7 | S441-220006 | WASHER-HARDENED | |
| 8 | 61N6-31360GG | PLATE-COVER | |
| 9 | 61N6-31410 | SHIM(1.0T) | |
| 10 | S017-160456 | BOLT-HEX | |
| 11 | S017-22060D | BOLT-HEX | |
| 12 | S017-22065D | BOLT-HEX | |
| 13 | S205-22100B | NUT-HEX | |
| 14 | S441-160006 | WASHER-HARDENED | |
| 15 | 61E5-11150 | WASHER-LOCK |
