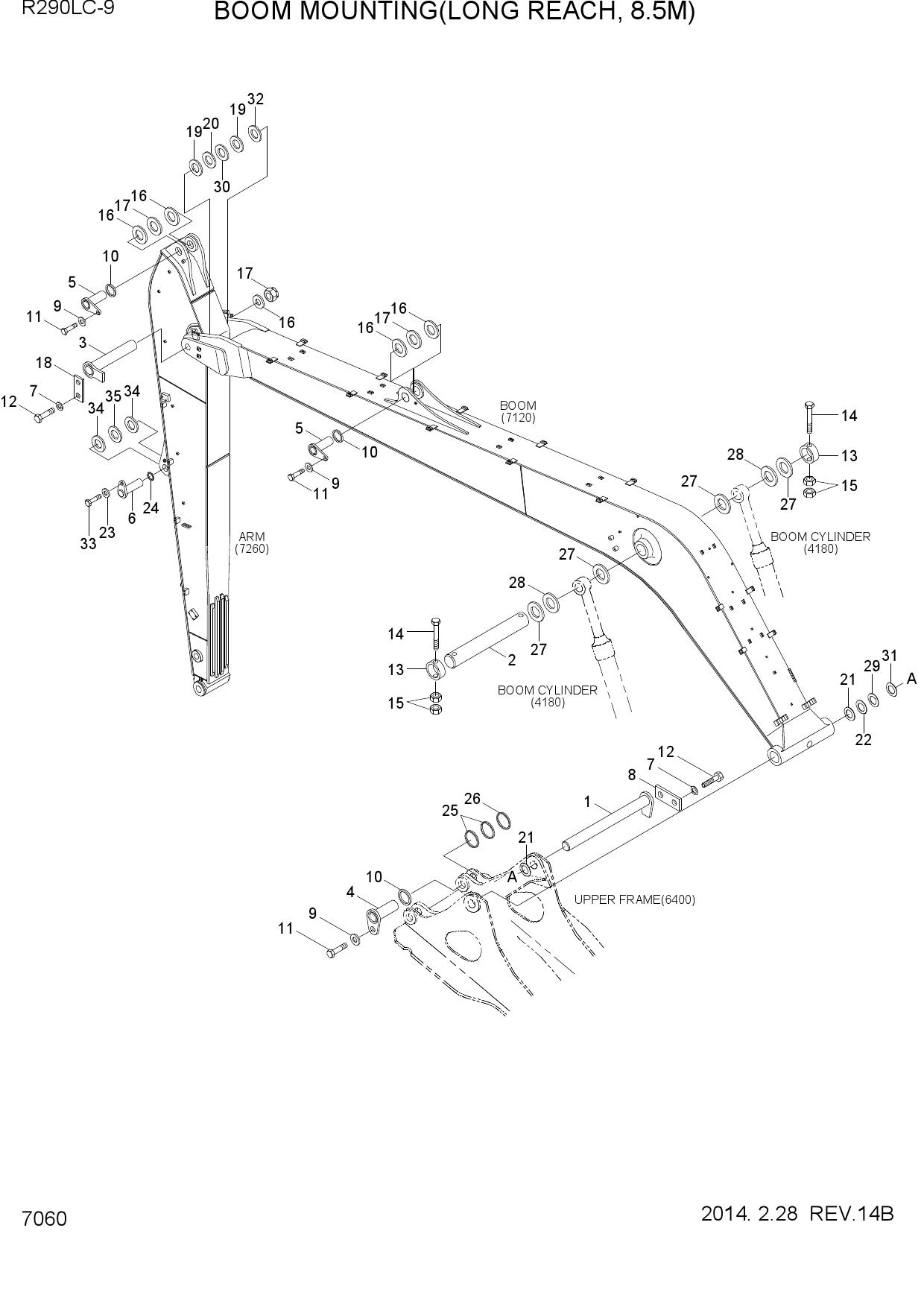

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 BOOM MOUNTING(LONG REACH, 8.5M)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 60Q8-00200 | BOOM MOUNT GROUP | |
| 1 | 61Q8-00010 | PIN ASSY | |
| 1 | 69Q8-00010 | PIN ASSY | |
| 2 | 61E9-11021 | PIN ASSY | |
| 2 | 69Q8-00020 | PIN | |
| 3 | 61N8-12032YL | PIN | |
| 3 | 69Q8-00030 | PIN | |
| 4 | 61Q6-01700GG | PIN ASSY | |
| 4 | 69Q8-00040 | PIN-ASSY | |
| 5 | 61Q6-01710 | PIN ASSY | |
| 5 | 69Q8-00050 | PIN-ASSY | |
| 6 | 61Q6-01610 | PIN ASSY | |
| 7 | S411-160006 | WASHER-SPRING | |
| 8 | 61Q8-00310 | PLATE | |
| 9 | 61N8-00320-DA | WASHER-HARDENED | |
| 10 | 61Q8-00150 | SPACER-PIN | |
| 11 | S017-20030D | BOLT-HEX | |
| 12 | S017-16040D | BOLT-HEX | |
| 13 | 61Q6-00330 | PIN-STOPPER | |
| 14 | S017-161806 | BOLT-HEX | |
| 15 | S205-16100B | NUT-HEX | |
| 16 | S993-090170 | SHIM(2.0T)-POLYMER | |
| 17 | S991-090170 | SHIM(1.0T)-POLYMER | |
| 18 | 61Q8-00320 | PLATE | |
| 19 | S993-100210 | SHIM(2.0T)-POLYMER | |
| 20 | S991-100210 | SHIM(1.0T)-POLYMER | |
| 21 | S993-110210 | SHIM(2.0T)-POLYMER | |
| 22 | S991-110210 | SHIM(1.0T)-POLYMER | |
| 23 | 61N8-00310-DA | WASHER-HARDENED | |
| 24 | 61Q8-00140 | SPACER-PIN | |
| 25 | S993-090150 | SHIM(2.0T)-POLYMER | |
| 26 | S991-090150 | SHIM(1.0T)-POLYMER | |
| 27 | S993-100160 | SHIM(2.0T)-POLYMER | |
| 28 | S991-100160 | SHIM(1.0T)-POLYMER | |
| 29 | S994-110210 | SHIM(2.5T)-POLYMER | |
| 30 | S994-100210 | SHIM(2.5T)-POLYMER | |
| 31 | S992-110210 | SHIM(1.5T)-POLYMER | |
| 32 | S992-100210 | SHIM(1.5T)-POLYMER | |
| 33 | S017-16025D | BOLT-HEX | |
| 34 | S993-080140 | SHIM(2.0T)-POLYMER | |
| 35 | S991-080140 | SHIM(1.0T)-POLYMER |
