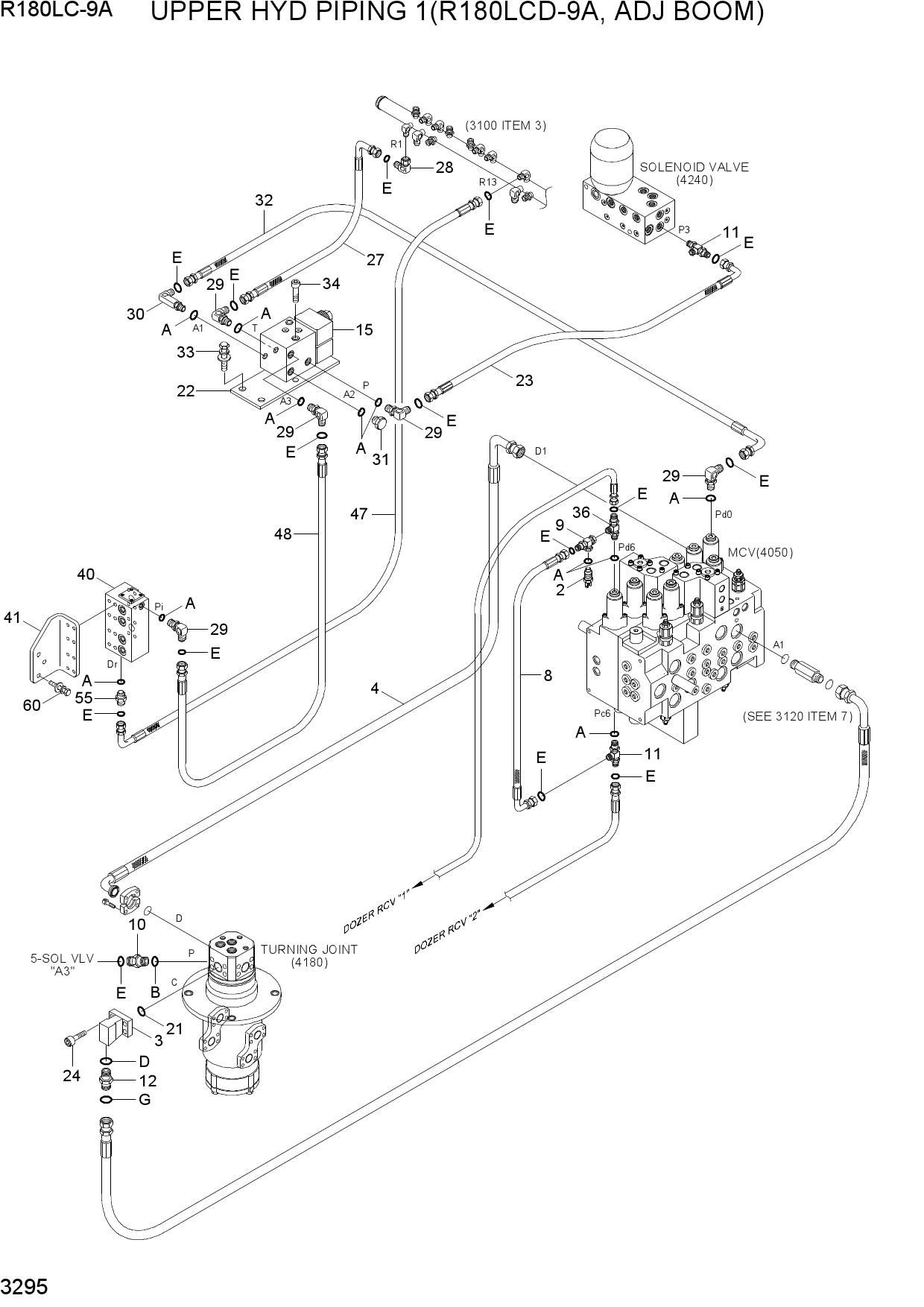

Запчасти для гусеничных экскаваторов Hyundai R180LC-9A UPPER HYD PIPING 1(R180LCD-9A, ADJ BOOM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31E5-40520 | SWITCH-PRESSURE | |
| 3 | 31N4-12240 | BLOCK | |
| 4 | 31Q5-12250 | HOSE ASSY | |
| 8 | X420-042012 | HOSE ASSY-ORFS 0X90 | |
| 9 | 31N5-10410 | TEE-SHUTTLE | |
| 10 | X500-110013 | CONNECTOR-ORFS | |
| 11 | X820-045151 | TEE-R/TYPE,ORFS | |
| 12 | X500-110004 | CONNECTOR-ORFS | |
| 15 | 31Q6-91230 | 2-SOLENOID VALVE | |
| 21 | Y171-019001 | O-RING | |
| 22 | 31Q4-11420 | BRACKET-SOL VALVE | |
| 23 | X420-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 24 | S109-100306 | BOLT-SOCKET | |
| 27 | X420-042032 | HOSE ASSY-ORFS 0X90 | |
| 28 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 29 | X520-110001 | ELBOW-90,ORFS | |
| 30 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 31 | P220-110102 | PLUG-HEX | |
| 32 | X420-042040 | HOSE ASSY-ORFS 0X90 | |
| 33 | S037-102526 | BOLT-W/WASHER | |
| 34 | S109-080806 | BOLT-SOCKET | |
| 36 | X810-045151 | TEE-B/TYPE,ORFS | |
| 40 | 31ER-12012 | VALVE-SELECTOR | |
| 41 | 31Q5-11310 | BRACKET | |
| 47 | X420-042036 | HOSE ASSY-SYNF,ORFS 0X90 | |
| 48 | X400-042040 | HOSE ASSY-SYNFLEX,ORFS | |
| 55 | X500-110001 | CONNECTOR-ORFS | |
| 60 | S037-123026 | BOLT-W/WASHER | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| D | S631-024004 | O-RING | |
| E | S621-011001 | O-RING | |
| G | S621-018001 | O-RING |
