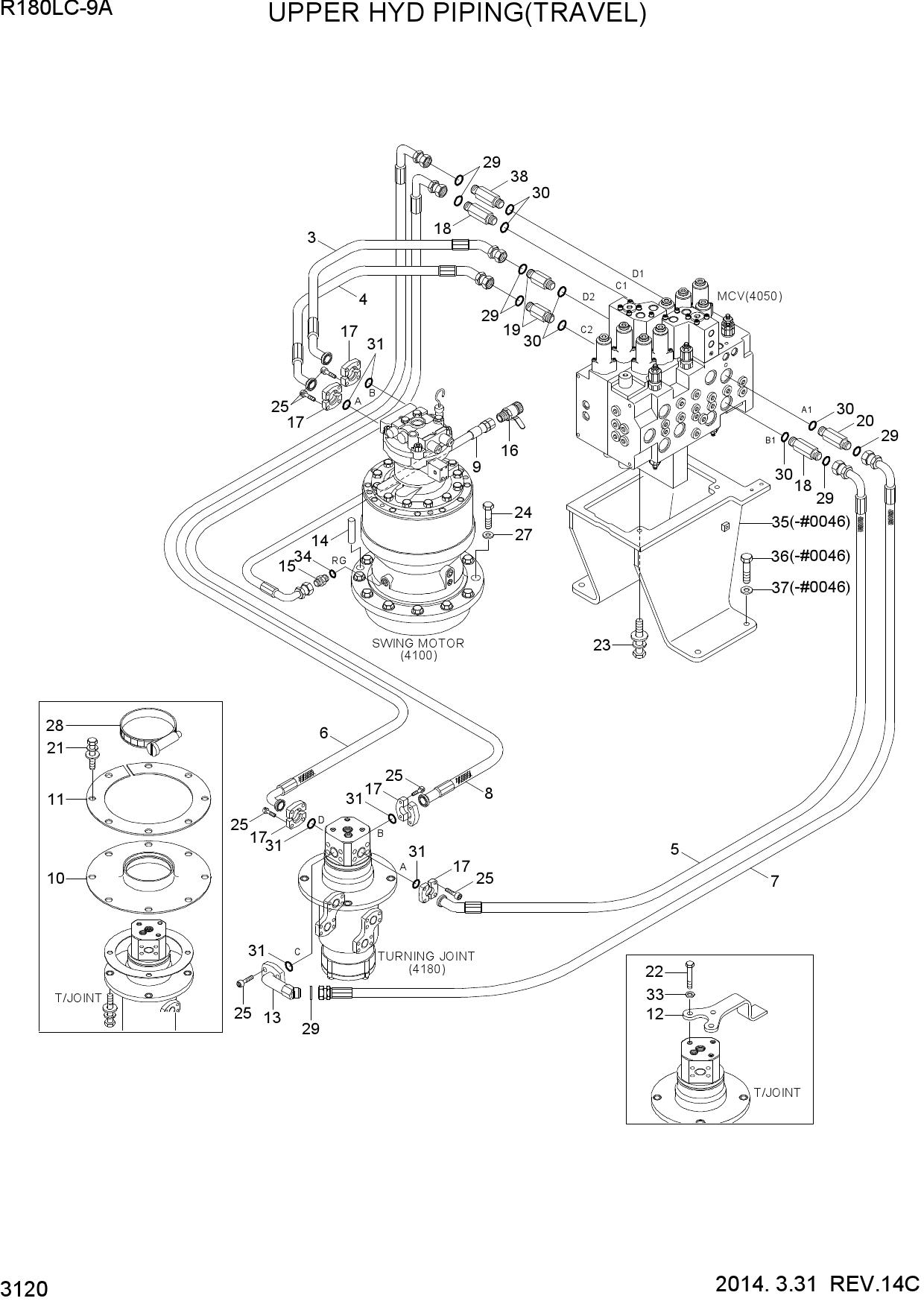

Запчасти для гусеничных экскаваторов Hyundai R180LC-9A UPPER HYD PIPING(TRAVEL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31N5-10430 | HOSE ASSY | |
| 4 | 31N5-10440 | HOSE ASSY | |
| 5 | 31Q5-10210 | HOSE ASSY | |
| 6 | 31Q5-10220 | HOSE ASSY | |
| 7 | P930-128025 | HOSE ASSY-ORFS 0X90 | |
| 8 | P993-128326 | HOSE ASSY-ORFS,FLG 0X90 | |
| 9 | 31Q5-10250 | HOSE ASSY-DRAIN | |
| 10 | 31N1-40941 | RUBBER-T/JOINT | |
| 11 | 31N1-40951 | COVER-T/JOINT | |
| 12 | 31Q4-11160 | BRACKET-T/JOINT | |
| 13 | 31Q5-10240 | PIPE ASSY | |
| 14 | 31E4-3039 | PIN-DOWEL | |
| 15 | X500-430003 | CONNECTOR-ORFS | |
| 16 | 31Q9-11600 | VALVE-DRAIN | |
| 17 | P173-120102 | FLANGE-HYD,SPLIT | |
| 18 | X511-112542 | CONNECTOR-LONG,ORFS | |
| 19 | X511-112544 | CONNECTOR-LONG,ORFS | |
| 20 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 21 | S037-102022 | BOLT-W/WASHER | |
| 22 | S017-140302 | BOLT-HEX | |
| 23 | S037-123522 | BOLT-W/WASHER | |
| 24 | S017-200752 | BOLT-HEX | |
| 25 | S109-100306 | BOLT-SOCKET | |
| 27 | S441-200002 | WASHER-HARDENED | |
| 28 | S520-130000 | CLAMP-HOSE | |
| 29 | S621-018001 | O-RING | |
| 30 | S631-024004 | O-RING | |
| 31 | Y171-019004 | O-RING | |
| 33 | S411-140002 | WASHER-SPRING | |
| 34 | S621-012001 | O-RING | |
| 35 | 31Q4-12250 | SUPPORT WA-MCV | |
| 36 | S017-16040D | BOLT-HEX | |
| 37 | S441-160006 | WASHER-HARDENED | |
| 38 | X511-112547 | CONNECTOR-LONG,ORFS |
