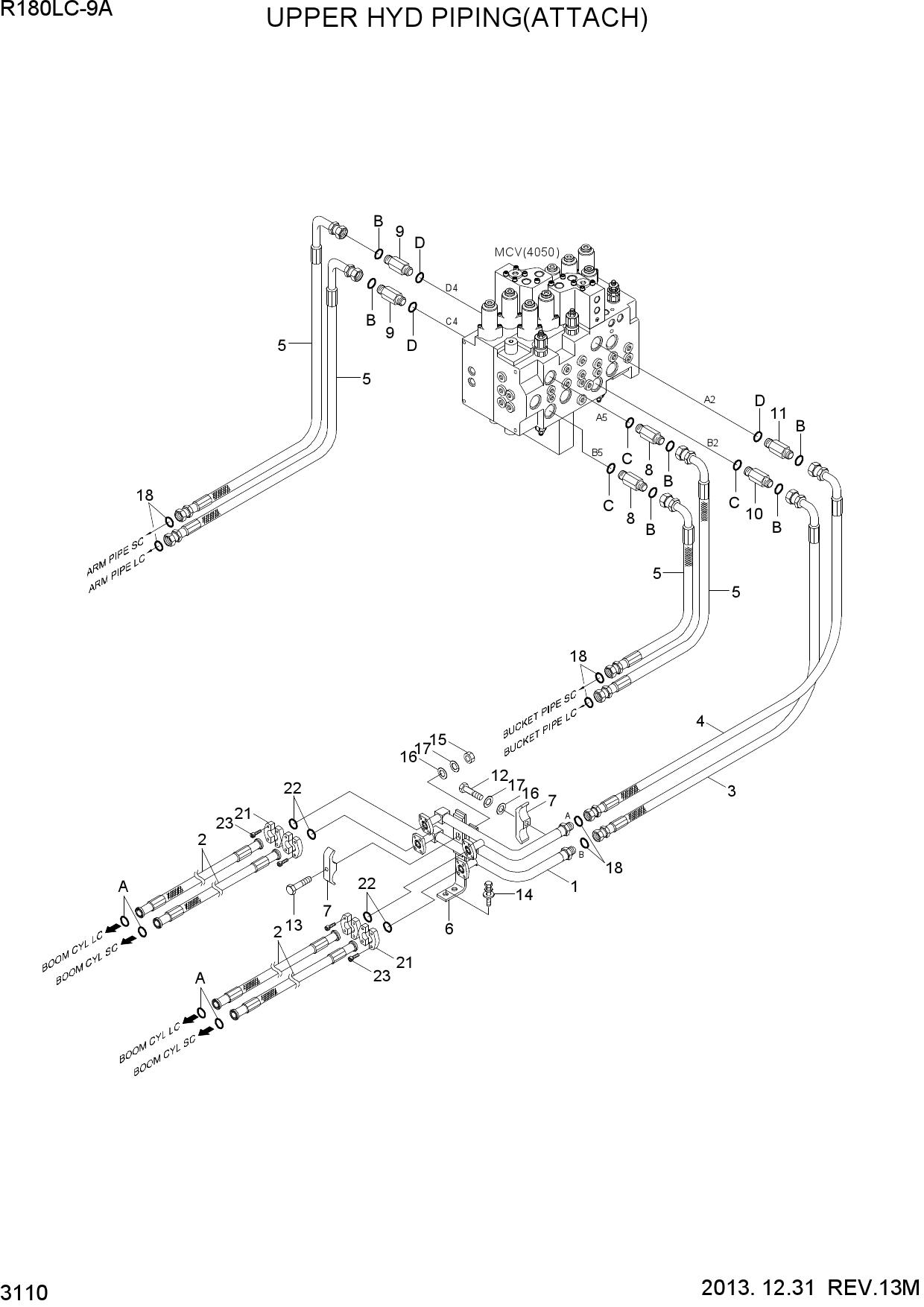

Запчасти для гусеничных экскаваторов Hyundai R180LC-9A UPPER HYD PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q5-11150 | PIPE ASSY | |
| 2 | 31Q5-10310 | HOSE ASSY | |
| 2 | 31Q5-10510 | HOSE ASSY(HI-GRADE) | |
| 3 | P930-128018 | HOSE ASSY-ORFS 0X90 | |
| 4 | P930-128020 | HOSE ASSY-ORFS 0X90 | |
| 5 | 31Q5-10320 | HOSE ASSY | |
| 6 | 31Q4-11170 | BRACKET | |
| 7 | 31N4-12270 | CLAMP-PIPE | |
| 8 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 9 | X511-116546 | CONNECTOR-LONG,ORFS | |
| 10 | X511-112544 | CONNECTOR-LONG,ORFS | |
| 11 | X511-116544 | CONNECTOR-LONG,ORFS | |
| 12 | S017-100506 | BOLT-HEX | |
| 13 | S017-100802 | BOLT-HEX | |
| 14 | S037-103026 | BOLT-W/WASHER | |
| 15 | S207-101002 | NUT-HEX | |
| 16 | S403-102002 | WASHER-PLAIN | |
| 17 | S411-100002 | WASHER-SPRING | |
| 18 | S621-018001 | O-RING | |
| 21 | P173-120102 | FLANGE-HYD,SPLIT | |
| 22 | Y171-019004 | O-RING | |
| 23 | S109-100306 | BOLT-SOCKET | |
| A | S621-014001 | O-RING | |
| B | S621-018001 | O-RING | |
| C | S631-024004 | O-RING | |
| D | S631-029004 | O-RING |
