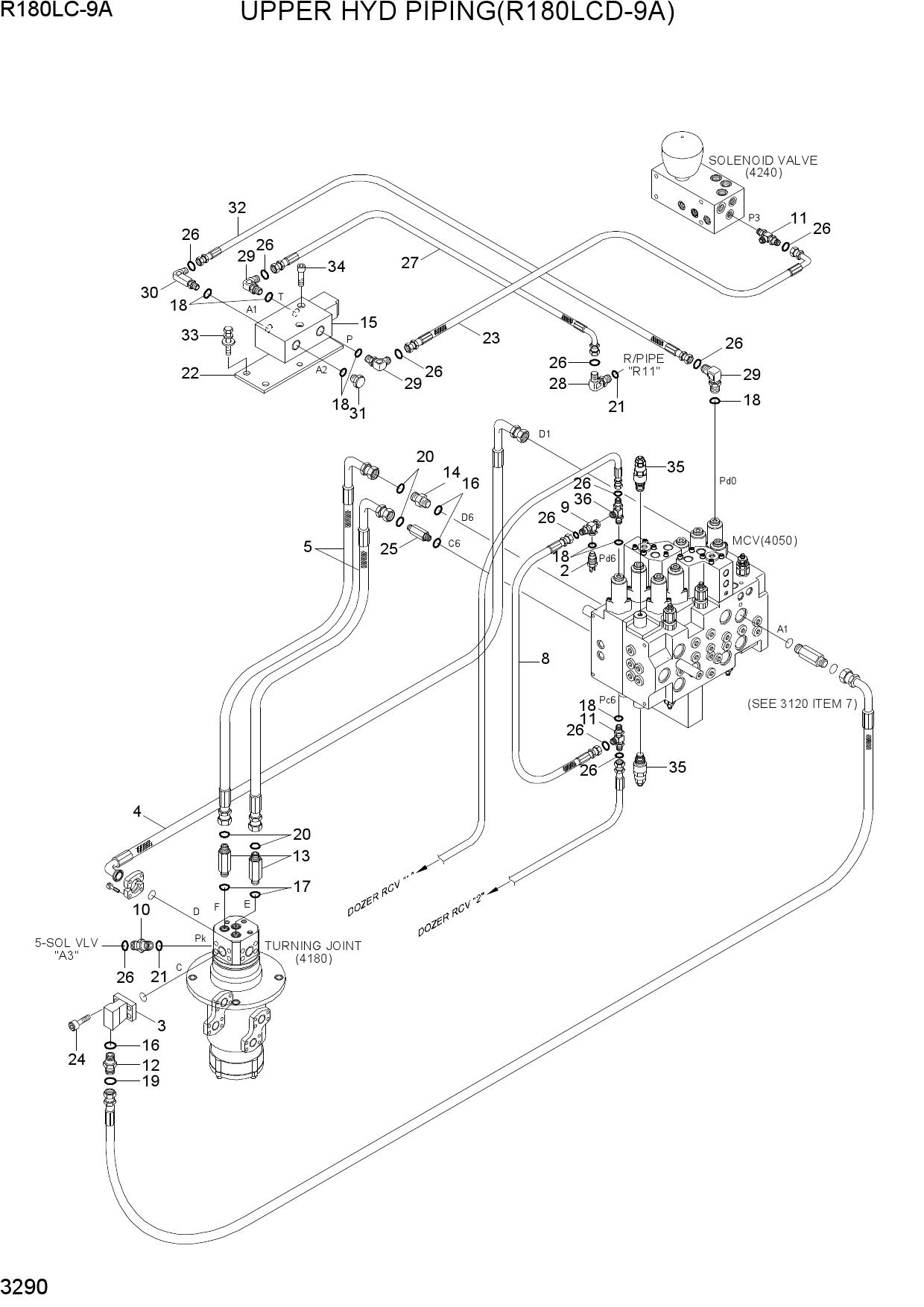

Запчасти для гусеничных экскаваторов Hyundai R180LC-9A UPPER HYD PIPING(R180LCD-9A)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31E5-40520 | SWITCH-PRESSURE | |
| 3 | 31N4-12240 | BLOCK | |
| 4 | 31Q5-12250 | HOSE ASSY | |
| 5 | P930-089020 | HOSE ASSY-ORFS 0X90 | |
| 8 | X420-042012 | HOSE ASSY-ORFS 0X90 | |
| 9 | 31N5-10410 | TEE-SHUTTLE | |
| 10 | X500-110013 | CONNECTOR-ORFS | |
| 11 | X820-045151 | TEE-R/TYPE,ORFS | |
| 12 | X500-110004 | CONNECTOR-ORFS | |
| 13 | X511-108534 | CONNECTOR-LONG,ORFS | |
| 14 | X500-110017 | CONNECTOR-ORFS | |
| 15 | 31N6-91230 | SOLENOID VALVE | |
| 16 | S631-024004 | O-RING | |
| 17 | S631-018004 | O-RING | |
| 18 | S631-011004 | O-RING | |
| 19 | S621-018001 | O-RING | |
| 20 | S621-014001 | O-RING | |
| 21 | S631-014004 | O-RING | |
| 22 | 31Q4-11420 | BRACKET-SOL VALVE | |
| 23 | X420-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 24 | S109-100306 | BOLT-SOCKET | |
| 25 | X511-112534 | CONNECTOR-LONG,ORFS | |
| 26 | S621-011001 | O-RING | |
| 27 | X420-042032 | HOSE ASSY-ORFS 0X90 | |
| 28 | X520-110012 | ELBOW-90,ORFS | |
| 29 | X520-110001 | ELBOW-90,ORFS | |
| 30 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 31 | P220-110102 | PLUG-HEX | |
| 32 | X420-042033 | HOSE ASSY-ORFS 0X90 | |
| 33 | S037-102526 | BOLT-W/WASHER | |
| 34 | S017-080406 | BOLT-HEX | |
| 35 | 31Q4-99560 | VALVE-PORT RELIEF | |
| 36 | X810-045151 | TEE-B/TYPE,ORFS |
