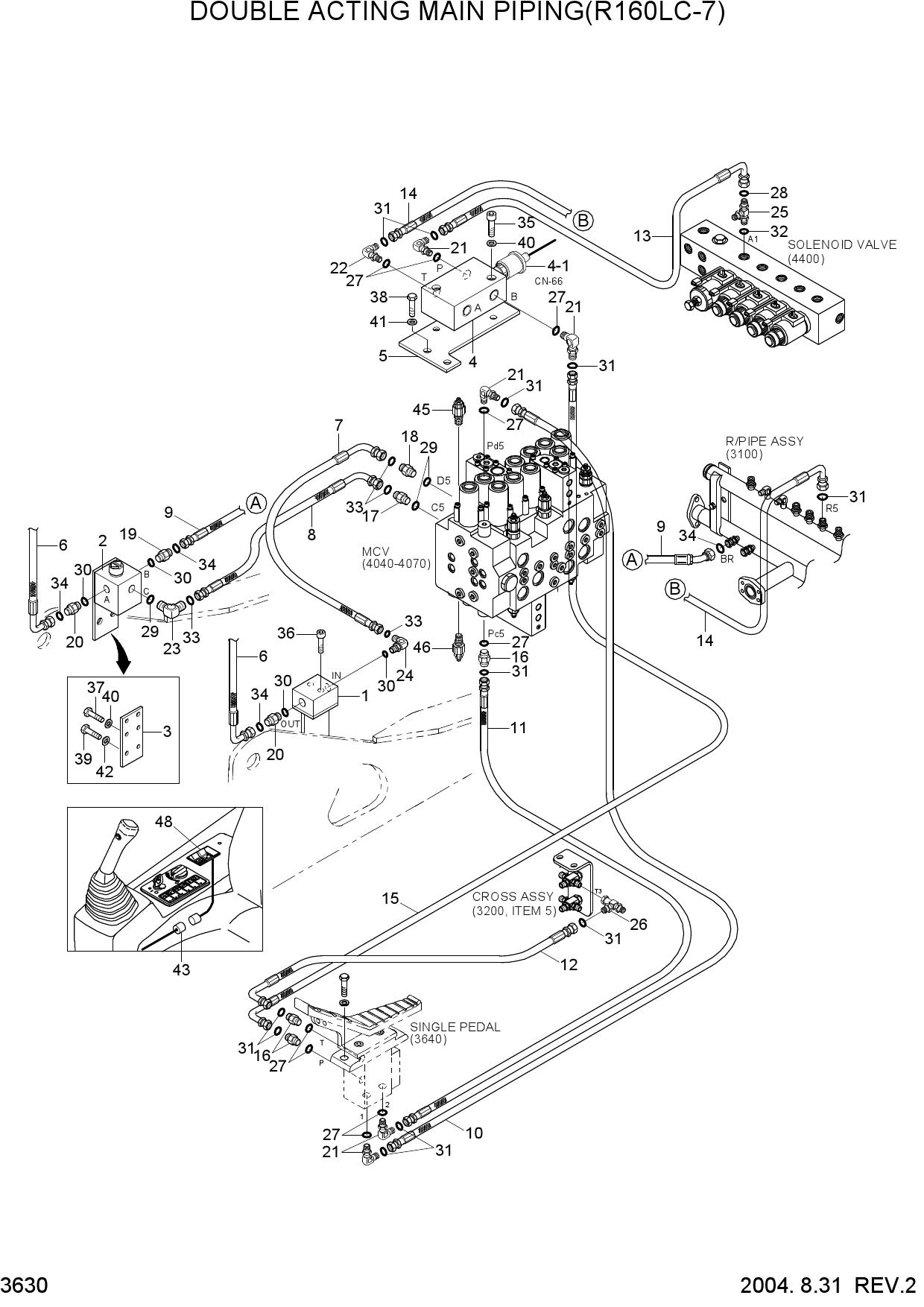

Запчасти для гусеничных экскаваторов Hyundai R160LC-7 DOUBLE ACTING MAIN PIPING(R160LC-7)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N5-94710 | BLOCK-HOSE JOINT | |
| 2 | 31N4-95260 | JOINT-3 WAY | |
| 3 | 31E9-95010 | BRACKET-3 WAY JOINT | |
| 4 | 31N6-91230D | SOLENOID VLV-BREAKER | |
| 4-1 | XKBN-00192 | COIL-BREAKER SOL | |
| 5 | 31N6-93230 | BRACKET-SOL VLV | |
| 6 | P973-166325 | HOSE ASSY-ORFSXFLG | |
| 7 | P933-126019 | HOSE ASSY-ORFS 0X90 | |
| 8 | P923-126014 | HOSE ASSY-ORFS 0X45 | |
| 9 | P923-163020 | HOSE ASSY-ORFS 0X45 | |
| 10 | P910-042068 | HOSE ASSY-ORFS 0X0 | |
| 11 | P910-042060 | HOSE ASSY-ORFS 0X0 | |
| 12 | P930-042022 | HOSE ASSY-ORFS 0X90 | |
| 13 | P930-042020 | HOSE ASSY-ORFS 0X90 | |
| 14 | P930-042046 | HOSE ASSY-ORFS 0X90 | |
| 15 | P930-042074 | HOSE ASSY-ORFS 0X90 | |
| 16 | X500-110001 | CONNECTOR-ORFS | |
| 17 | X500-110004 | CONNECTOR-ORFS | |
| 18 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 19 | X500-110005 | CONNECTOR-ORFS | |
| 20 | X511-116556 | CONNECTOR-ORFS | |
| 21 | X520-110001 | ELBOW-90,ORFS | |
| 22 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 23 | X520-110004 | ELBOW-90,ORFS | |
| 24 | X520-110018 | ELBOW-90,ORFS | |
| 25 | X820-065251 | TEE-R/TYPE,ORFS | |
| 26 | X840-515151 | TEE-R/TYPE,ORFS | |
| 27 | S631-011004 | O-RING | |
| 28 | S631-018004 | O-RING | |
| 29 | S631-024004 | O-RING | |
| 30 | S631-029004 | O-RING | |
| 31 | S621-011001 | O-RING | |
| 32 | S621-012001 | O-RING | |
| 33 | S621-018001 | O-RING | |
| 34 | S621-021001 | O-RING | |
| 35 | S109-080456 | BOLT-SOCKET | |
| 36 | S109-120556 | BOLT-SOCKET | |
| 37 | S017-080256 | BOLT-HEX | |
| 38 | S017-100256 | BOLT-HEX | |
| 39 | S017-120306 | BOLT-HEX | |
| 40 | S411-080006 | WASHER-SPRING | |
| 41 | S411-100006 | WASHER-SPRING | |
| 42 | S411-120006 | WASHER-SPRING | |
| 43 | 21NB-00200 | HARNESS-EXT | |
| 45 | 31N4-90560 | PORT RELIEF VALVE | |
| 46 | 31N4-90570 | PORT RELIEF VALVE | |
| 48 | 21E6-30540 | SWITCH-BREAKER |
