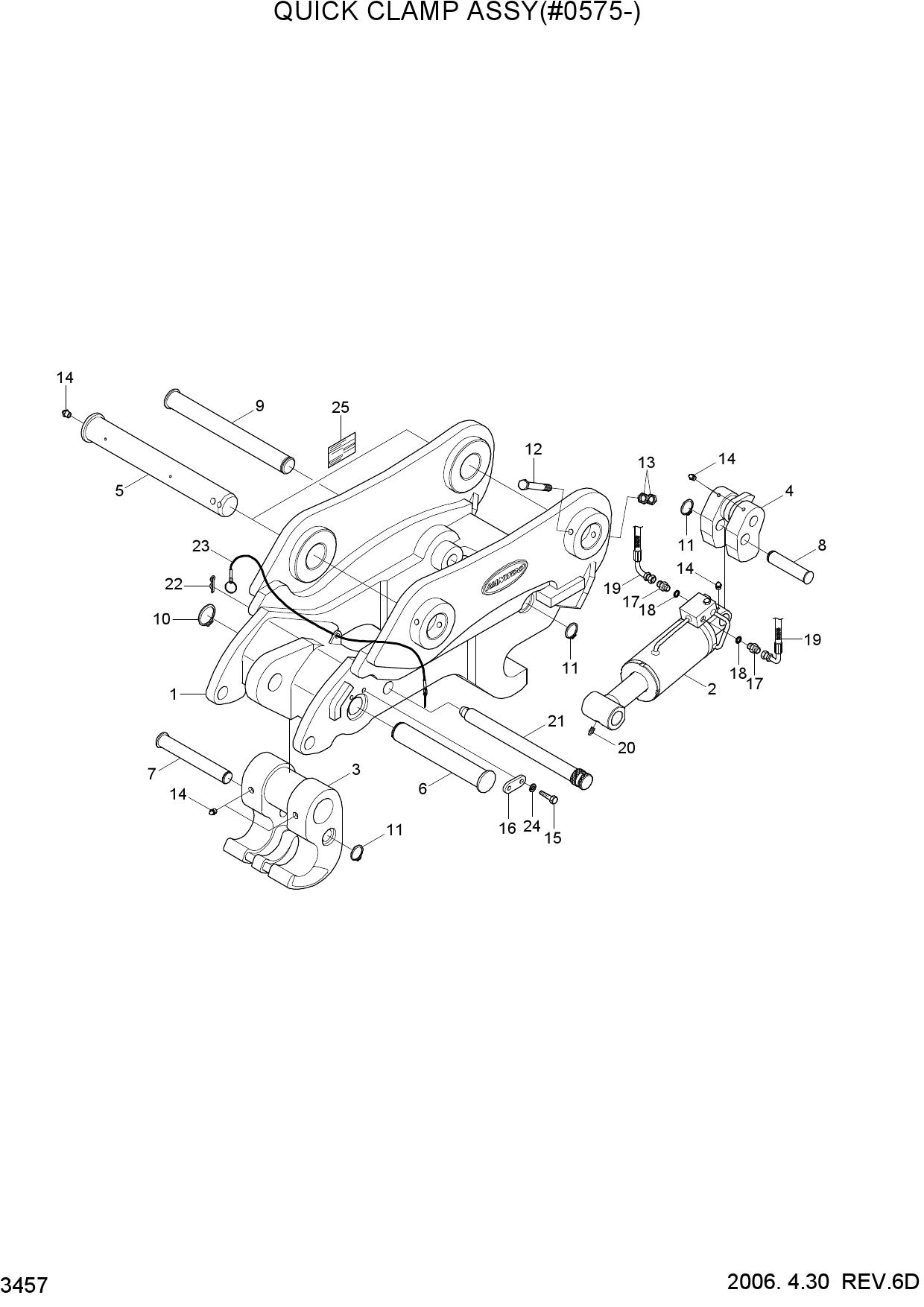

Запчасти для гусеничных экскаваторов Hyundai R160LC-7 QUICK CLAMP ASSY(#0575-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N5-90700 | QUICK CLAMP ASSY | |
| 1 | XKBP-00108 | BODY ASSY | |
| 2 | XKBP-00088 | CYLINDER ASSY | |
| 3 | XKBP-00079 | HOOK ASSY | |
| 4 | XKBP-00109 | LOCK ASSY | |
| 5 | XKBP-00081 | PIN-BRACKET | |
| 6 | XKBP-00110 | PIN-HOOK | |
| 7 | XKBP-00051 | PIN-JOINT | |
| 8 | XKBP-00052 | PIN-JOINT | |
| 9 | XKBP-00111 | PIN-LOCK | |
| 10 | XKBP-00054 | RING-SNAP | |
| 11 | XKBP-00010 | RING-SNAP | |
| 12 | XKBP-00055 | BOLT-HEX | |
| 13 | XKBP-00014 | NUT-HEX | |
| 14 | XKBP-00015 | NIPPLE-GREASE | |
| 15 | XKBP-00112 | BOLT-HEX | |
| 16 | XKBP-00113 | PLATE-COVER | |
| 17 | XKBP-00057 | ADAPTER | |
| 18 | XKBP-00019 | O-RING | |
| 19 | XKBP-00058 | HOSE | |
| 20 | XKBP-00024 | NIPPLE-GREASE | |
| 21 | XKBP-00114 | PIN-STOPPER | |
| 22 | XKBP-00026 | PIN-SNAP | |
| 23 | XKBP-00115 | WIRE ASSY | |
| 24 | XKBP-00116 | WASHER-SPRING | |
| 25 | XKBP-00107 | NAME PLATE |
