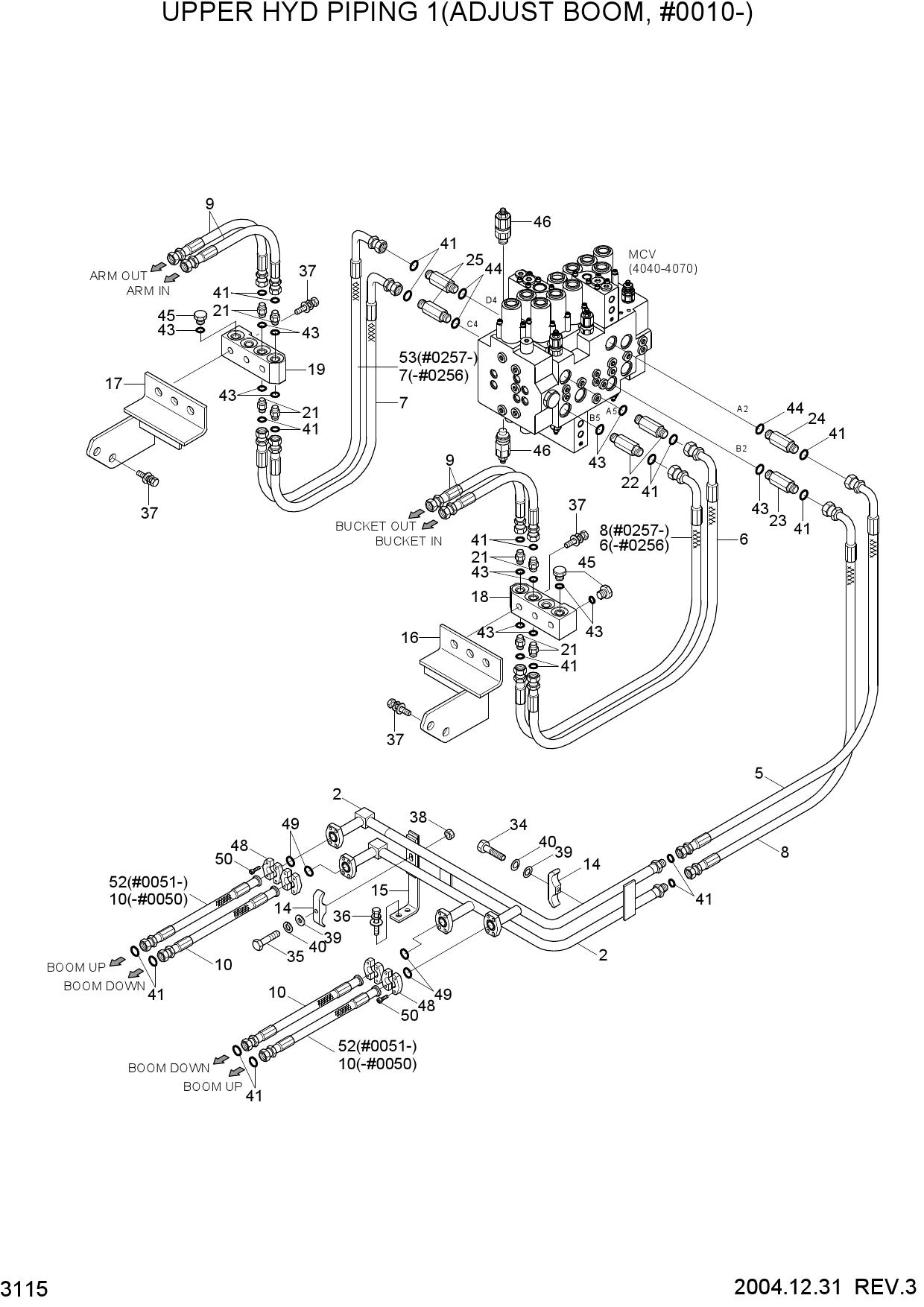

Запчасти для гусеничных экскаваторов Hyundai R160LC-7 UPPER HYD PIPING 1(ADJUST BOOM, #0010-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N5-10312 | PIPE ASSY | |
| 5 | P930-127019 | HOSE ASSY-ORFS 0X90 | |
| 6 | P930-127016 | HOSE ASSY-ORFS 0X90 | |
| 6 | P930-127016 | HOSE ASSY-ORFS 0X90 | |
| 7 | P930-127018 | HOSE ASSY-ORFS 0X90 | |
| 7 | P930-127021 | HOSE ASSY-ORFS 0X90 | |
| 8 | P930-127017 | HOSE ASSY-ORFS 0X90 | |
| 8 | P930-127017 | HOSE ASSY-ORFS 0X90 | |
| 9 | P913-127035 | HOSE ASSY-ORFS 0X0 | |
| 10 | 31N5-10260 | HOSE ASSY | |
| 10 | 31N5-10260 | HOSE ASSY | |
| 14 | 31N4-12200 | CLAMP-PIPE | |
| 15 | 31N5-10340 | BRACKET | |
| 16 | 31N5-10380 | BRACKET-LH,MANIFOLD | |
| 17 | 31N5-10390 | BRACKET-RH,MANIFOLD | |
| 18 | 35EA-12500 | MANIFOLD-LH | |
| 19 | 35EA-12510 | MANIFOLD-RH | |
| 21 | X500-110004 | CONNECTOR-ORFS | |
| 22 | X511-112548 | CONNECTOR-LONG,ORFS | |
| 23 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 24 | X511-116546 | CONNECTOR-LONG,ORFS | |
| 25 | X511-116548 | CONNECTOR-LONG,ORFS | |
| 34 | S017-100602 | BOLT-HEX | |
| 35 | S017-100852 | BOLT-HEX | |
| 36 | S037-103022 | BOLT-W/WASHER | |
| 37 | S037-123052 | BOLT-W/WASHER | |
| 38 | S207-101002 | NUT-HEX | |
| 39 | S403-101002 | WASHER-PLAIN | |
| 40 | S411-100002 | WASHER-SPRING | |
| 41 | S621-018001 | O-RING | |
| 43 | S631-024004 | O-RING | |
| 44 | S631-029004 | O-RING | |
| 45 | P220-110105 | PLUG-HEX | |
| 46 | XKBF-00095 | RELIEF VALVE-OVERLOAD | |
| 48 | P173-120102 | FLANGE-HYD,SPLIT | |
| 49 | Y171-019004 | O-RING | |
| 50 | S109-100356 | BOLT-SOCKET | |
| 50 | S109-100306 | BOLT-SOCKET | |
| 52 | 31N5-53060 | HOSE ASSY | |
| 53 | P930-127020 | HOSE ASSY-ORFS 0X90 |
