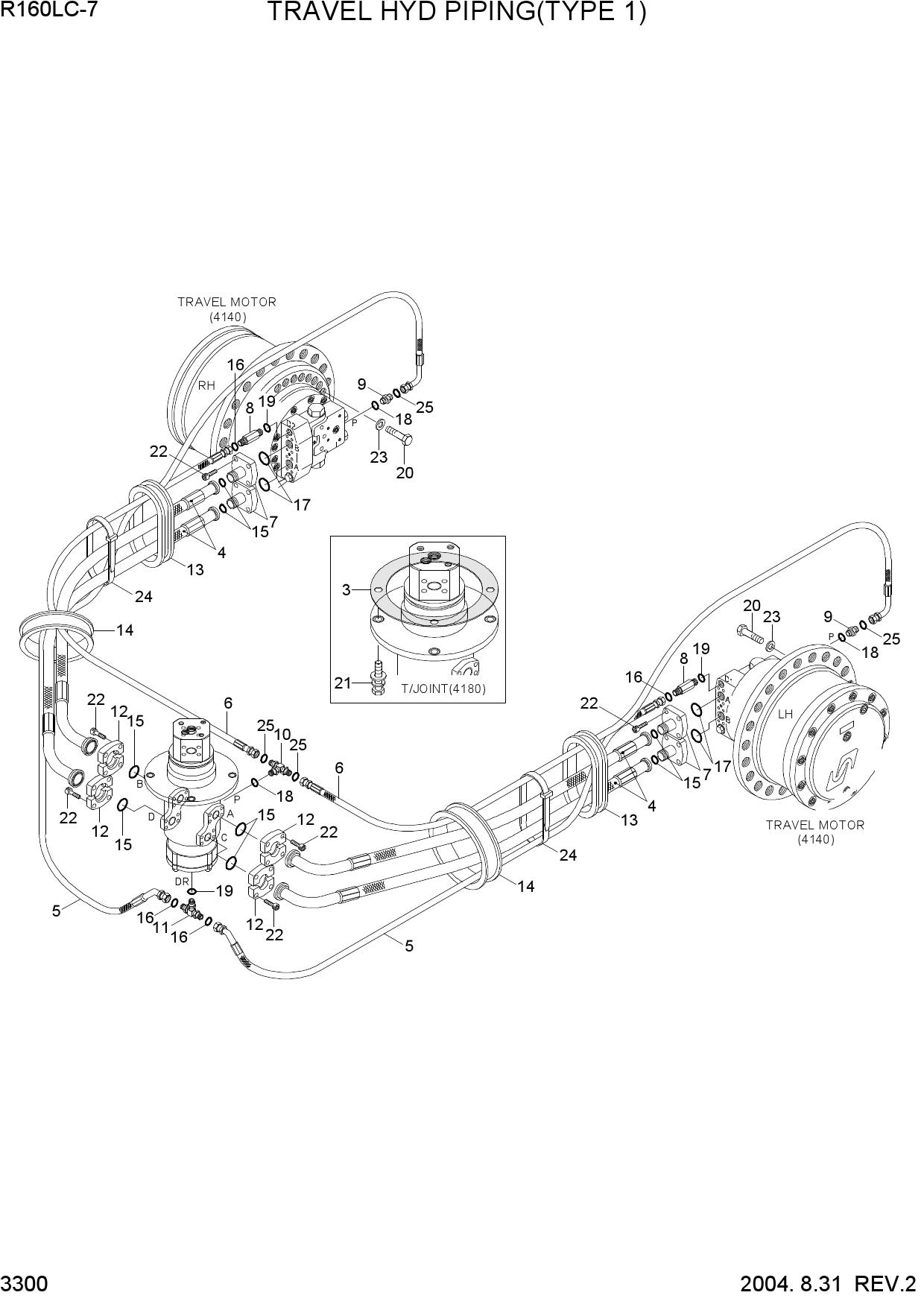

Запчасти для гусеничных экскаваторов Hyundai R160LC-7 TRAVEL HYD PIPING(TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31N1-40970 | GASKET | |
| 4 | P950-127336 | HOSE ASSY-ORFS,FLG 0X45 | |
| 5 | P920-082037 | HOSE ASSY-ORFS 0X45 | |
| 6 | P420-042046 | HOSE ASSY-COMP 0X90 | |
| 6 | P930-042046 | HOSE ASSY-ORFS 0X90 | |
| 7 | 31N5-40021 | FITTING | |
| 8 | X500-110003 | CONNECTOR-ORFS | |
| 9 | P010-110002 | CONNECTOR | |
| 9 | X500-110001 | CONNECTOR-ORFS | |
| 10 | P310-060404 | TEE-BRANCH TYPE | |
| 10 | X810-065151 | TEE-B/TYPE,ORFS | |
| 11 | X810-085353 | TEE-B/TYPE,ORFS | |
| 12 | P173-120102 | FLANGE-HYD,SPLIT | |
| 13 | S760-141216 | GROMMET | |
| 14 | 31E3-31230 | GROMMET | |
| 15 | Y171-019004 | O-RING | |
| 16 | S621-014001 | O-RING | |
| 17 | S621-018001 | O-RING | |
| 18 | S631-011004 | O-RING | |
| 19 | S631-018004 | O-RING | |
| 20 | S017-160552 | BOLT-HEX | |
| 21 | S037-123022 | BOLT-W/WASHER | |
| 22 | S109-100306 | BOLT-SOCKET | |
| 23 | S441-160002 | WASHER-HARDENED | |
| 24 | S552-102370 | CLAMP-BAND | |
| 25 | S621-011001 | O-RING |
