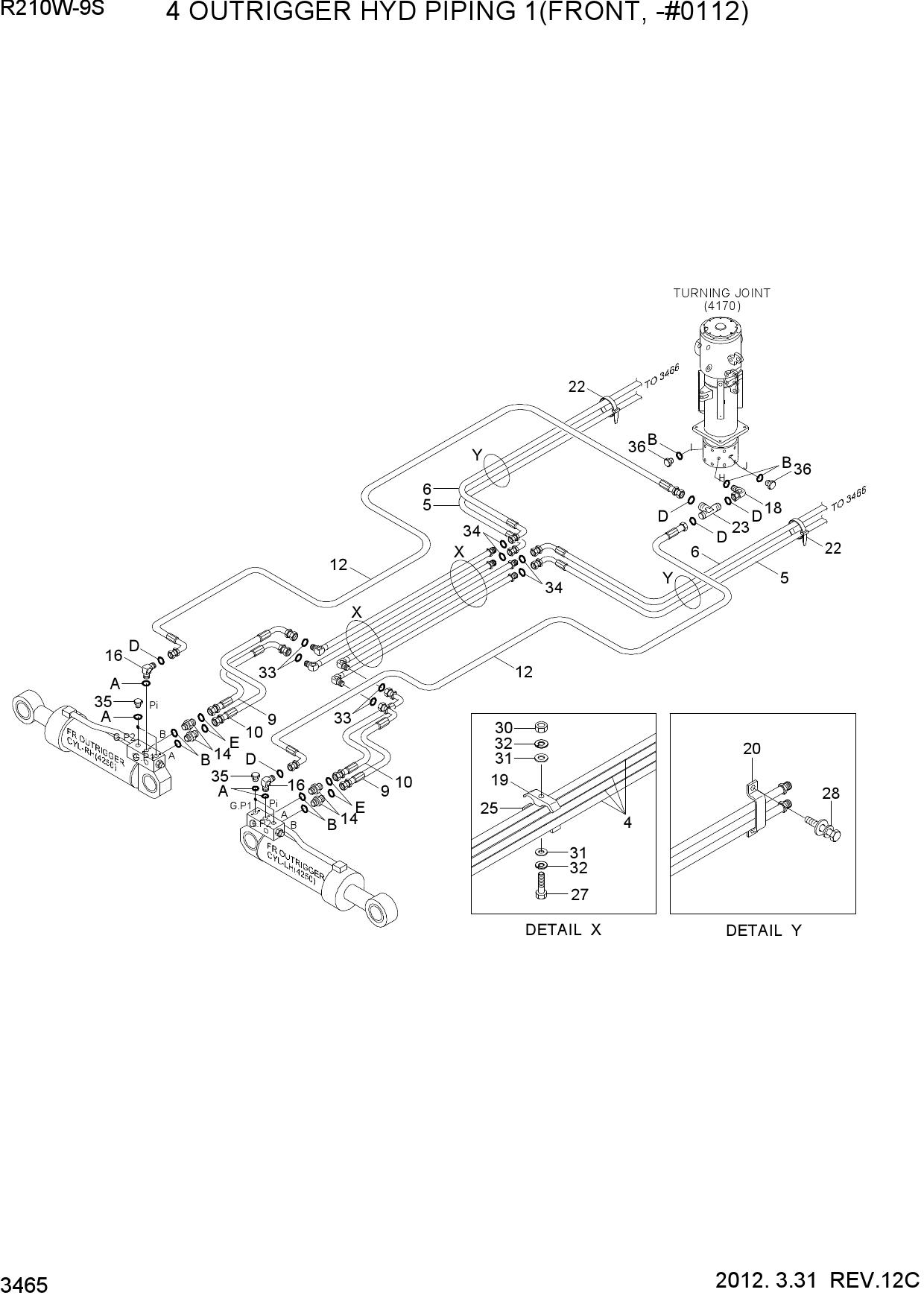

Запчасти для колесных экскаваторов Hyundai R210W-9S 4 OUTRIGGER HYD PIPING 1(FRONT, -#0112)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q6-70060 | PIPE ASSY | |
| 5 | P923-087033 | HOSE ASSY-ORFS 0X45 | |
| 6 | P920-087032 | HOSE ASSY-ORFS 0X45 | |
| 9 | P933-067011 | HOSE ASSY-ORFS 0X90 | |
| 10 | P933-067013 | HOSE ASSY-ORFS 0X90 | |
| 12 | P923-043050 | HOSE ASSY-ORFS 0X45 | |
| 14 | X500-110002 | CONNECTOR-ORFS | |
| 16 | X520-110001 | ELBOW-90,ORFS | |
| 18 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 19 | 31E4-3030 | CLAMP-PIPE | |
| 20 | 31EM-45320 | CLAMP-HOSE | |
| 22 | S552-102370 | CLAMP-BAND | |
| 23 | X820-065151 | TEE-R/TYPE,ORFS | |
| 25 | 31E4-31430 | SPACER-CLAMP | |
| 27 | S017-101056 | BOLT-HEX | |
| 28 | S037-102026 | BOLT-W/WASHER | |
| 30 | S205-10100B | NUT-HEX | |
| 31 | S403-10100B | WASHER-PLAIN | |
| 32 | S411-100006 | WASHER-SPRING | |
| 33 | S621-012001 | O-RING | |
| 34 | S621-014001 | O-RING | |
| 35 | P220-110102 | PLUG-HEX | |
| 36 | P220-110103 | PLUG-HEX | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| D | S621-011001 | O-RING | |
| E | S621-012001 | O-RING |
