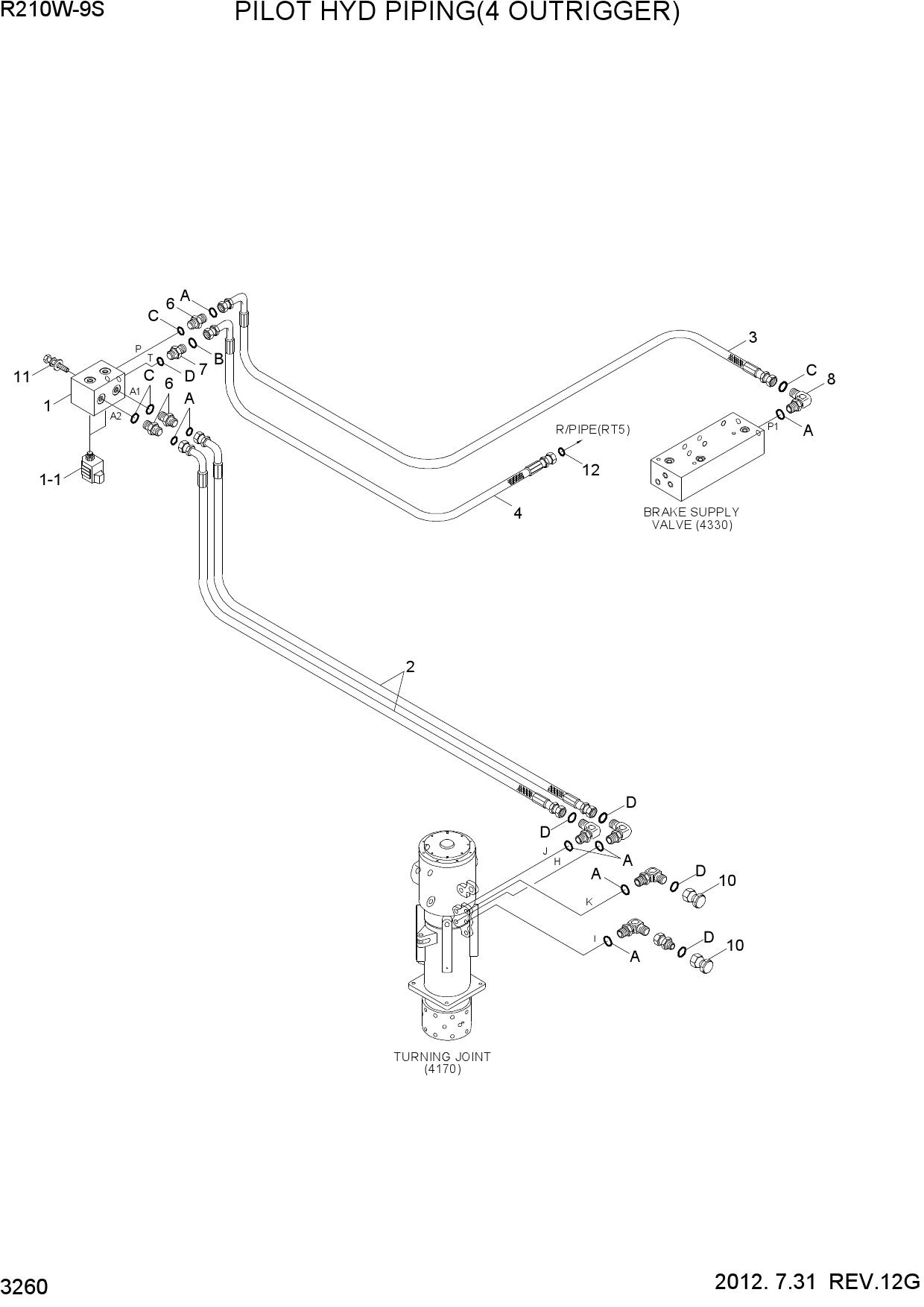

Запчасти для колесных экскаваторов Hyundai R210W-9S PILOT HYD PIPING(4 OUTRIGGER)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q4-20070 | 2 CARTRIDGE VALVE | |
| 1-1 | XKBL-00107 | VALVE-SOLENOID | |
| 1-2 | XKBL-00004 | COIL | |
| 2 | P930-043012 | HOSE ASSY-ORFS 0X90 | |
| 3 | P930-043064 | HOSE ASSY-ORFS 0X90 | |
| 4 | P930-062042 | HOSE ASSY-ORFS 0X90 | |
| 5 | 31EK-30130 | CONNECTOR-LONG | |
| 6 | X500-110001 | CONNECTOR-ORFS | |
| 7 | X500-110002 | CONNECTOR-ORFS | |
| 8 | X520-110001 | ELBOW-90,ORFS | |
| 9 | X520-110012 | ELBOW-90,ORFS | |
| 10 | X710-100102 | CAP-ORFS | |
| 11 | S037-102526 | BOLT-W/WASHER | |
| 12 | S621-012001 | O-RING | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S631-011004 | O-RING | |
| D | S631-014004 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R210W-9S в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
