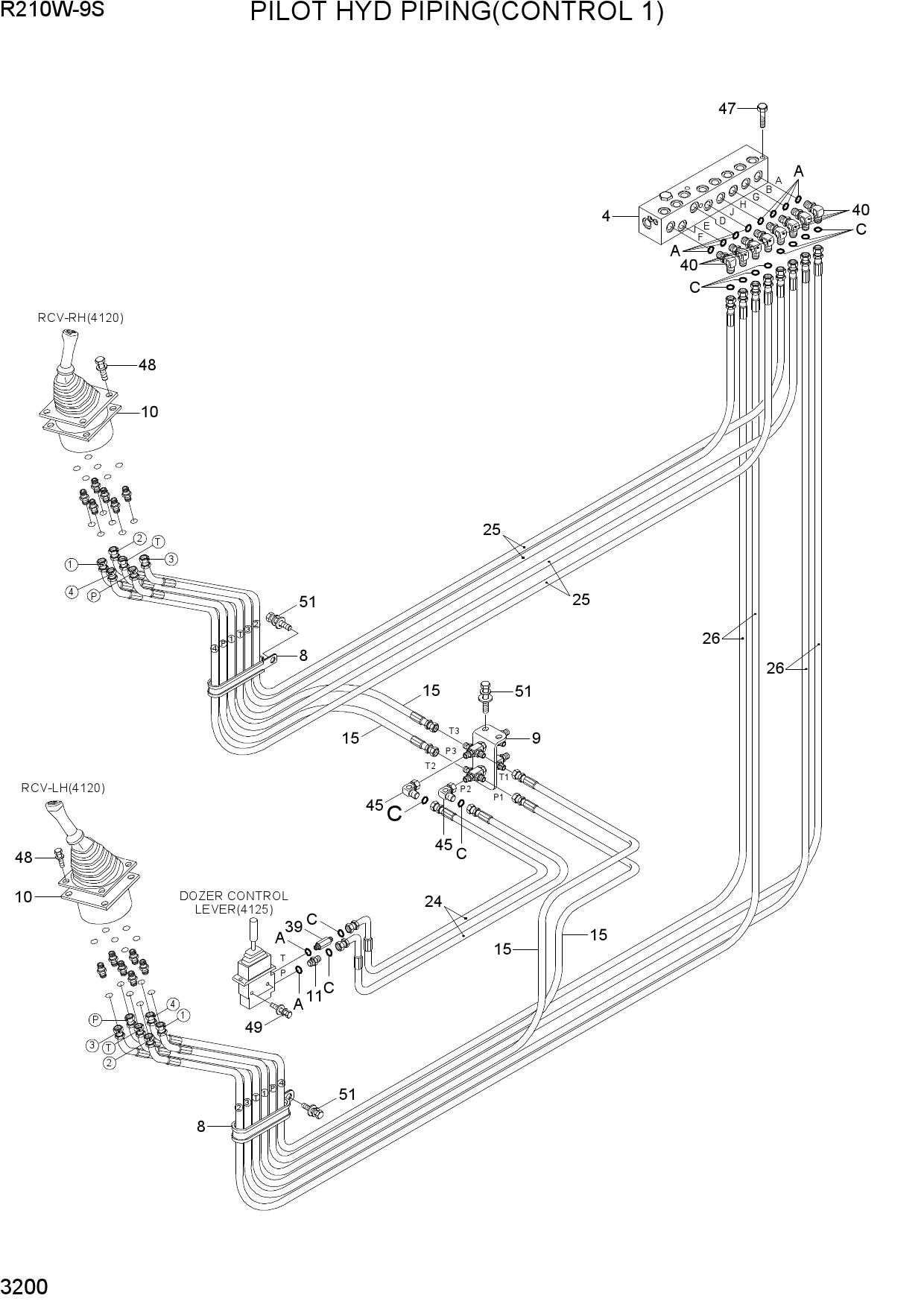

Запчасти для колесных экскаваторов Hyundai R210W-9S PILOT HYD PIPING(CONTROL 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q6-26170 | BLOCK-SHUTTLE | |
| 8 | 31L7-10240 | CLAMP-TUBE INS | |
| 9 | 31N6-25100 | CROSS ASSY | |
| 10 | 31M6-51061 | SHIM(3.2T) | |
| 11 | 31N6-25060 | FILTER-LAST GUARD | |
| 15 | P920-042023 | HOSE ASSY-ORFS 0X45 | |
| 24 | X410-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 25 | X410-042046 | HOSE ASSY-ORFS 0X45 | |
| 26 | X410-042050 | HOSE ASSY-SYNFLEX,ORFS | |
| 39 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 40 | X520-110001 | ELBOW-90,ORFS | |
| 45 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 47 | S015-080756 | BOLT-HEX | |
| 48 | S035-063046 | BOLT-W/WASHER | |
| 49 | S035-083526 | BOLT-W/WASHER | |
| 51 | S037-102526 | BOLT-W/WASHER | |
| A | S631-011004 | O-RING | |
| C | S621-011001 | O-RING |
