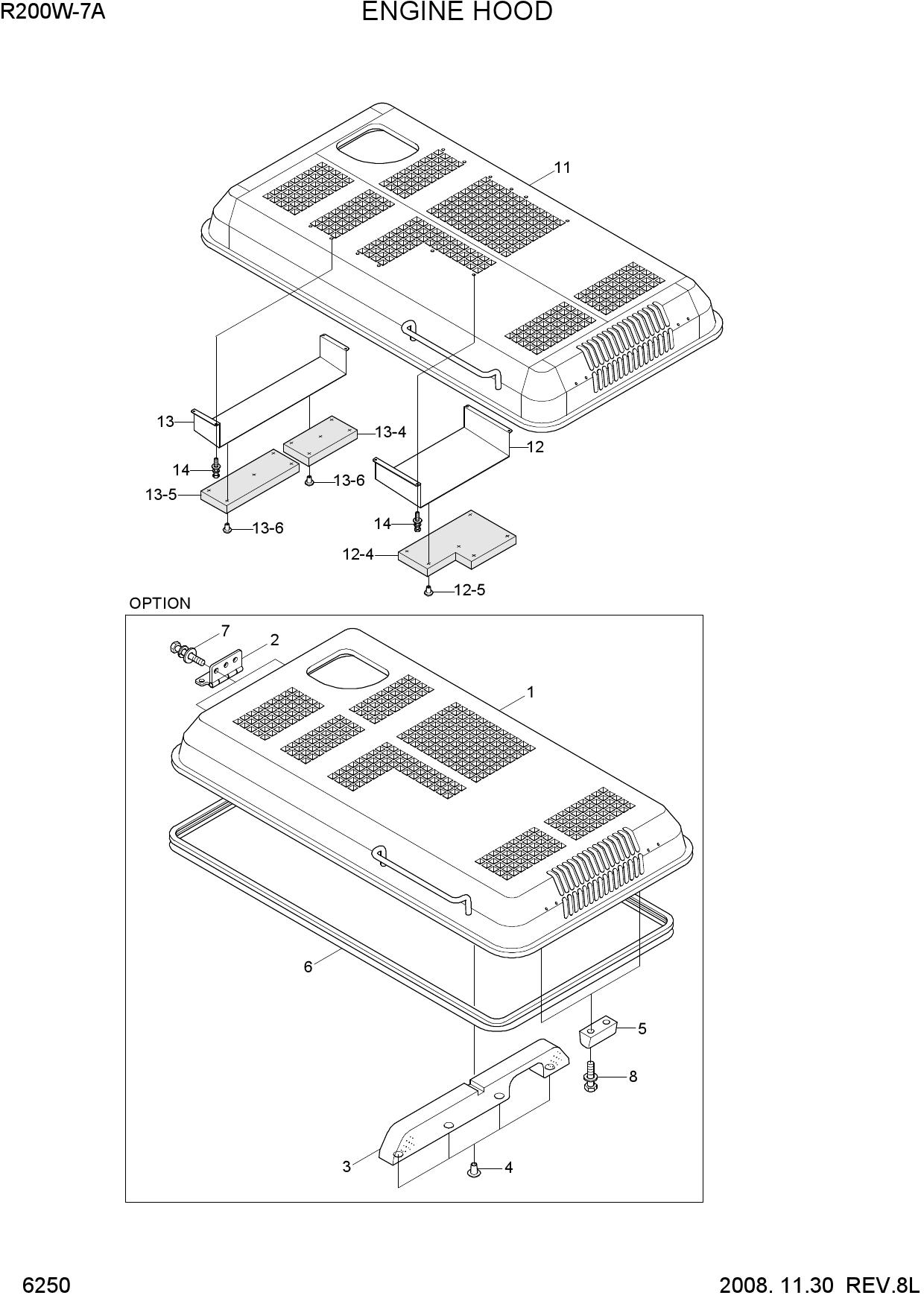

Запчасти для колесных экскаваторов Hyundai R200W-7A ENGINE HOOD
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 74N6-51500 | ENGINE HOOD ASSY | |
| 11 | 74N6-51000 | ENGINE HOOD ASSY | |
| 12 | 74N6-51511 | BAFFLE ASSY(A)-E/HOOD | |
| 12-4 | 74N6-51550 | SPONGE | |
| 12-5 | 71EM-51580 | CAP-STUD BOLT | |
| 13 | 74N6-51520 | BAFFLE ASSY(B) | |
| 13 | 74N6-51520 | BAFFLE ASSY(B) | |
| 13-4 | 74N6-51550 | SPONGE | |
| 13-5 | 74N6-51560 | SPONGE | |
| 13-6 | 71EM-51580 | CAP-STUD BOLT | |
| 14 | S035-08252V | BOLT-W/WASHER | |
| 14 | S035-08252V | BOLT-W/WASHER | |
| * | 74N6-51000 | ENGINE HOOD ASSY | |
| 1 | 74N6-51011 | ENGINE HOOD WA | |
| 2 | 71N6-51101 | HINGE-ENG HOOD | |
| 2 | 71N6-51101BG | HINGE-ENG HOOD | |
| 3 | 74N6-51200 | SPONGE | |
| 4 | 71EM-51580 | CAP-STUD BOLT | |
| 5 | 71N6-51140 | STOPPER-A | |
| 6 | S771-061500 | WEATHER STRIP | |
| 7 | S037-123526 | BOLT-W/WASHER | |
| 8 | S132-063056 | SCREW-W/WASHER |
