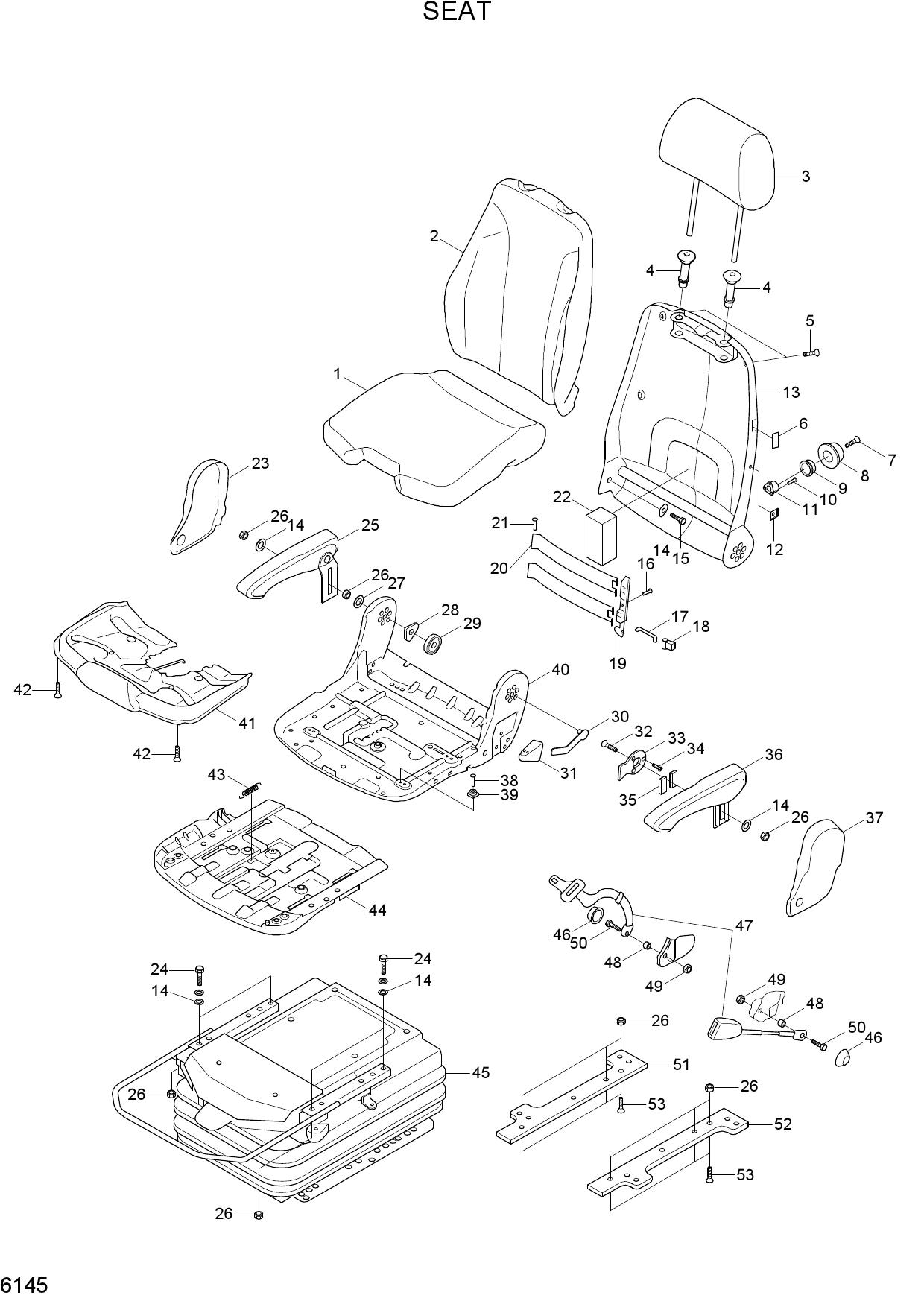

Запчасти для колесных экскаваторов Hyundai R200W-7A SEAT(AIR SUSPENSION, OPT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71N6-30600 | SEAT ASSY | |
| 1 | 140907 | CUSHION-SEAT | |
| 2 | 140908 | BACKREST-CUSHION | |
| 3 | 140912 | HEADREST | |
| 4 | 138691 | BUSHING | |
| 5 | 200936 | SCREW-SELF TAPPING | |
| 6 | 140226 | COVER-PLASTIC | |
| 7 | 138758 | SCREW | |
| 8 | 141064 | HANDLE-LUMBAR SUPPORT | |
| N9 | 138747 | TOOLHEAD WHEEL | |
| 10 | 135786 | RIVET-BLIND | |
| 11 | 138634 | SLING SPRING BRAKE | |
| 12 | 138785 | STICKER | |
| 13 | 2048229 | BACKREST-GS.SCR | |
| 14 | 113290 | WASHER | |
| 15 | 118558 | SCREW-HEXAGON | |
| 16 | 104551 | RIVET-POP | |
| 17 | 138559 | RODS | |
| 18 | 138655 | CARRIER | |
| 19 | 138614 | WINKEL | |
| 20 | 141004 | PLATE | |
| 21 | 2048616 | RIVET | |
| 22 | 1027240 | SPONGE | |
| 23 | 140458 | COVER-RH | |
| 24 | 2048504 | SCREW-HEXAGON HEAD | |
| 25 | 1026762 | ARM REST ASSY-RH | |
| 26 | 110291 | NUT-HEXAGON | |
| 27 | 110489 | WASHER-BLACK | |
| 28 | 140684 | HODER-SPRING | |
| 29 | 131517 | SPRING-LEG | |
| 30 | 140695 | LEVER | |
| 31 | 140694 | HANDLE | |
| 32 | 140697 | SCREW-M8*18 | |
| 33 | 140696 | PLATE | |
| 34 | 136122 | SCREW-M6*10 | |
| 35 | 107719 | PLATE-RUBBER | |
| 36 | 1026763 | ARMREST-LH | |
| 37 | 140457 | COVER-LH | |
| 38 | 2048610 | RIVET | |
| 39 | 138835 | PROFILE-GLIDING | |
| 40 | 86601108 | SEAT PLATE-GS.LA | |
| 41 | 1077064 | ADJUSTMENT-TILTING | |
| 42 | 1054392 | SCREW-SELF TAPPING | |
| 43 | 116226 | SPRING | |
| 44 | 1101294 | ADJUSTMENT-SEAT DEPTH | |
| 45 | 1053742 | SUSPENSION SYSTEM | |
| 46 | 132909 | COVER | |
| 47 | 902172 | SEAT BELT | |
| 48 | 115419 | BUSHING | |
| 49 | 113354 | NUT | |
| 50 | 113771 | SCREW-7/16 INCH | |
| N51 | S0051 | BOTTOM PLATE-GS.LA. | |
| N52 | S0070 | BOTTOM PLATE-GS.LA. | |
| 53 | 2048654 | SCREW-COUNTERSUNK |
