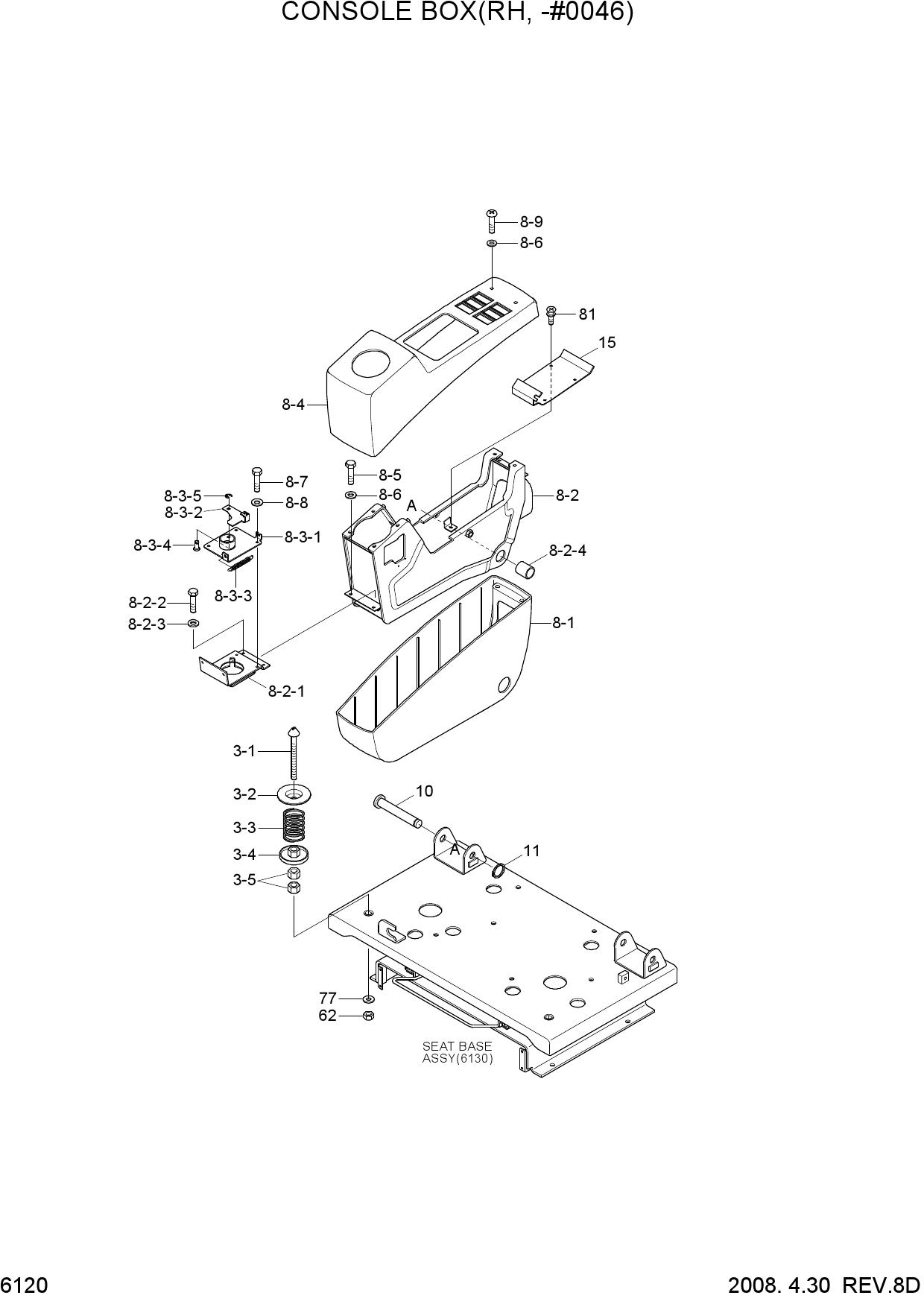

Запчасти для колесных экскаваторов Hyundai R200W-7A CONSOLE BOX(RH, -#0046)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 71N6-20031 | TILT LOCKER ASSY | |
| 3-1 | 71N6-21151 | SHAFT | |
| 3-2 | 71N6-21160 | PLATE | |
| 3-3 | 71N6-21170 | SPRING | |
| 3-4 | 71N6-21180 | PLATE WA | |
| 3-5 | S207-161006 | NUT-HEX | |
| 8 | 71N6-20440 | CONSOLE BOX ASSY-RH | |
| 8-1 | 71N6-20071 | CONSOLE BOX-LOW | |
| 8-2 | 71N6-20061 | C/BOX FRAME WA-RH | |
| 8-2-1 | 71N6-21320 | BRACKET-TILT | |
| 8-2-2 | S015-060146 | BOLT-HEX | |
| 8-2-3 | S403-06200B | WASHER-PLAIN | |
| 8-2-4 | S731-020025 | BUSHING-DU | |
| 8-3 | 71N6-20091 | TILT CATCH ASSY | |
| 8-3-1 | 71N6-21420 | TILT CATCH-LOW | |
| 8-3-2 | 71N6-21451 | TILT CATCH-UP | |
| 8-3-3 | 71N6-21460 | SPRING | |
| 8-3-4 | 71N6-21470 | PIN | |
| 8-3-5 | P560-090002 | RETAINING RING-E TYPE | |
| 8-4 | 71N6-20172 | CONSOLE BOX-UP(RH) | |
| 8-5 | S015-050206 | BOLT-HEX | |
| 8-6 | S403-05200B | WASHER-PLAIN | |
| 8-7 | S161-060126 | SCREW-CROSS R/ROUND | |
| 8-8 | S403-06200B | WASHER-PLAIN | |
| 8-9 | S161-050166 | SCREW-CROSS R/ROUND | |
| 10 | 71N6-20082 | SHAFT | |
| 11 | S601-020004 | RING-RETAINING | |
| 15 | 71N6-20111 | PLATE-CABLE | |
| 62 | S205-161006 | NUT-HEX | |
| 77 | S403-162006 | WASHER-PLAIN | |
| 81 | S131-061646 | SCREW-W/WASHER |
