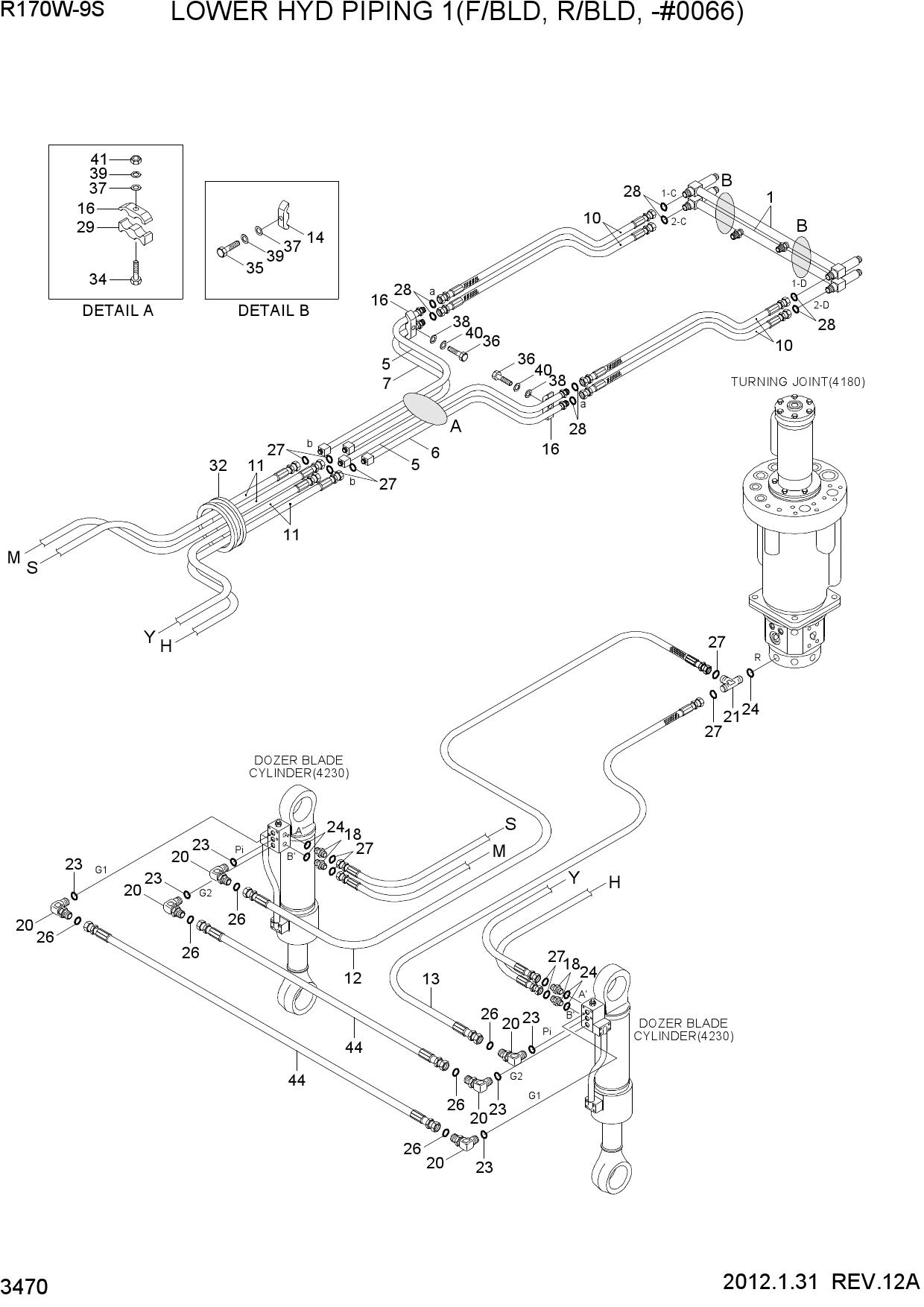

Запчасти для колесных экскаваторов Hyundai R170W-9S LOWER HYD PIPING 1(F/BLD, R/BLD, -#0066)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q4-70311 | PIPE ASSY | |
| 5 | 31Q5-70330 | PIPE ASSY | |
| 6 | 31Q5-70340 | PIPE ASSY | |
| 7 | 31Q5-70350 | PIPE ASSY | |
| 10 | P913-089029 | HOSE ASSY-ORFS 0X0 | |
| 11 | P913-069018 | HOSE ASSY-ORFS 0X0 | |
| 12 | P913-044053 | HOSE ASSY-ORFS 0X0 | |
| 13 | P933-044054 | HOSE ASSY-ORFS 0X90 | |
| 14 | 34EA-10250 | CLAMP-PIPE | |
| 16 | 31EE-50180 | CLAMP ASSY | |
| 18 | X500-110002 | CONNECTOR-ORFS | |
| 20 | X520-110001 | ELBOW-90,ORFS | |
| 21 | X820-065151 | TEE-R/TYPE,ORFS | |
| 23 | S631-011004 | O-RING | |
| 24 | S631-014004 | O-RING | |
| 26 | S621-011001 | O-RING | |
| 27 | S621-012001 | O-RING | |
| 28 | S621-014001 | O-RING | |
| 29 | 31E4-31430 | SPACER-CLAMP | |
| 32 | S760-091414 | GROMMET | |
| 34 | S017-101006 | BOLT-HEX | |
| 35 | S017-100606 | BOLT-HEX | |
| 36 | S017-120606 | BOLT-HEX | |
| 37 | S403-101006 | WASHER-PLAIN | |
| 38 | S403-121006 | WASHER-PLAIN | |
| 39 | S411-100006 | WASHER-SPRING | |
| 40 | S411-120006 | WASHER-SPRING | |
| 41 | S205-101006 | NUT-HEX | |
| 44 | P913-049014 | HOSE ASSY-ORFS 0X0 |
