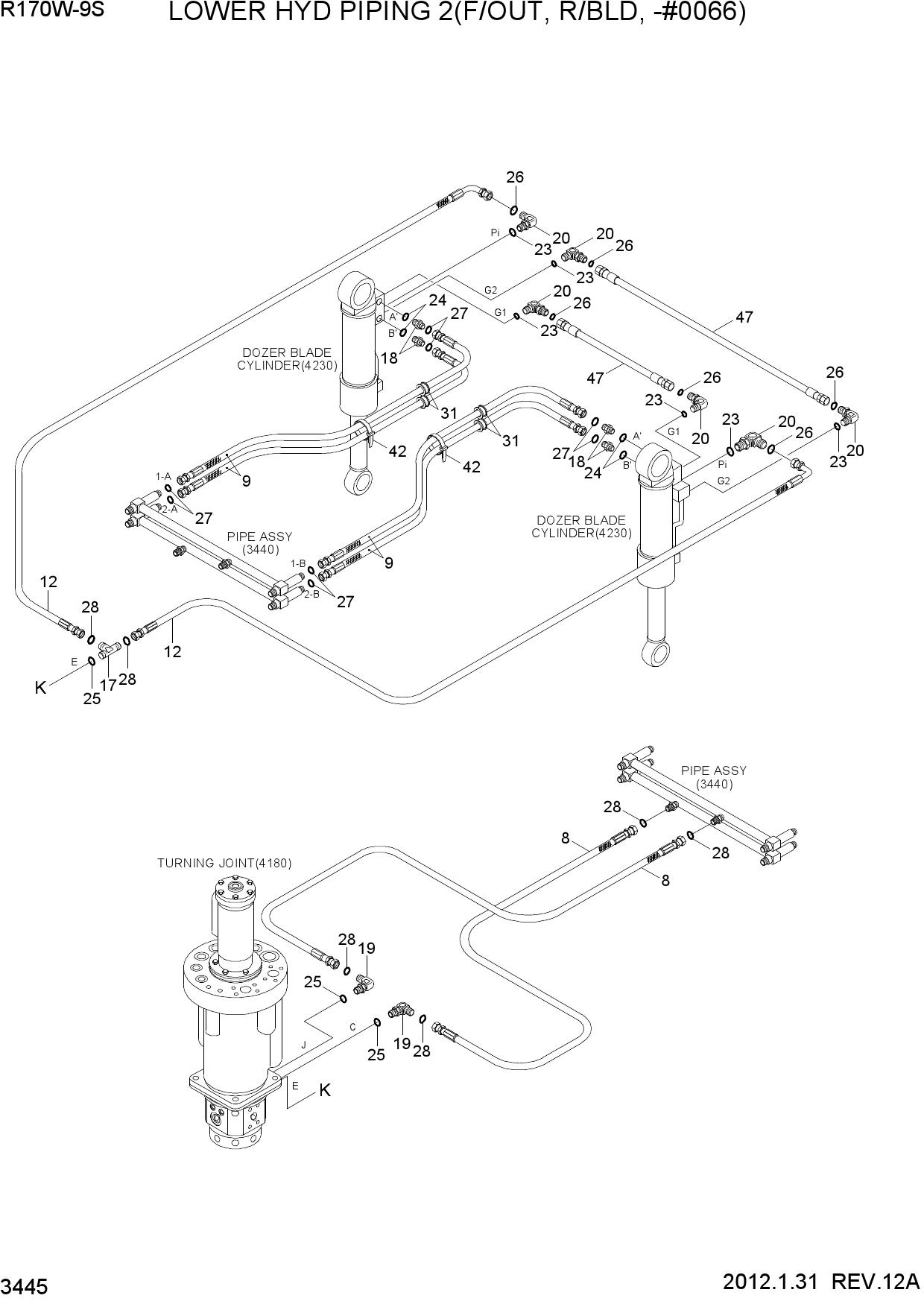

Запчасти для колесных экскаваторов Hyundai R170W-9S LOWER HYD PIPING 2(F/OUT, R/BLD, -#0066)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 8 | P933-089012 | HOSE ASSY-ORFS 0X90 | |
| 9 | P913-069025 | HOSE ASSY-ORFS 0X0 | |
| 12 | P913-044040 | HOSE ASSY-ORFS 0X0 | |
| 17 | X820-085151 | TEE-R/TYPE,ORFS | |
| 18 | X500-110002 | CONNECTOR-ORFS | |
| 19 | X500-110003 | CONNECTOR-ORFS | |
| 20 | X520-110001 | ELBOW-90,ORFS | |
| 23 | S631-011004 | O-RING | |
| 24 | S631-014004 | O-RING | |
| 25 | S631-018004 | O-RING | |
| 26 | S621-011001 | O-RING | |
| 27 | S621-012001 | O-RING | |
| 28 | S621-014001 | O-RING | |
| 31 | S760-132200 | GROMMET | |
| 42 | S552-102370 | CLAMP-BAND | |
| 47 | P913-049018 | HOSE ASSY-ORFS 0X0 |
