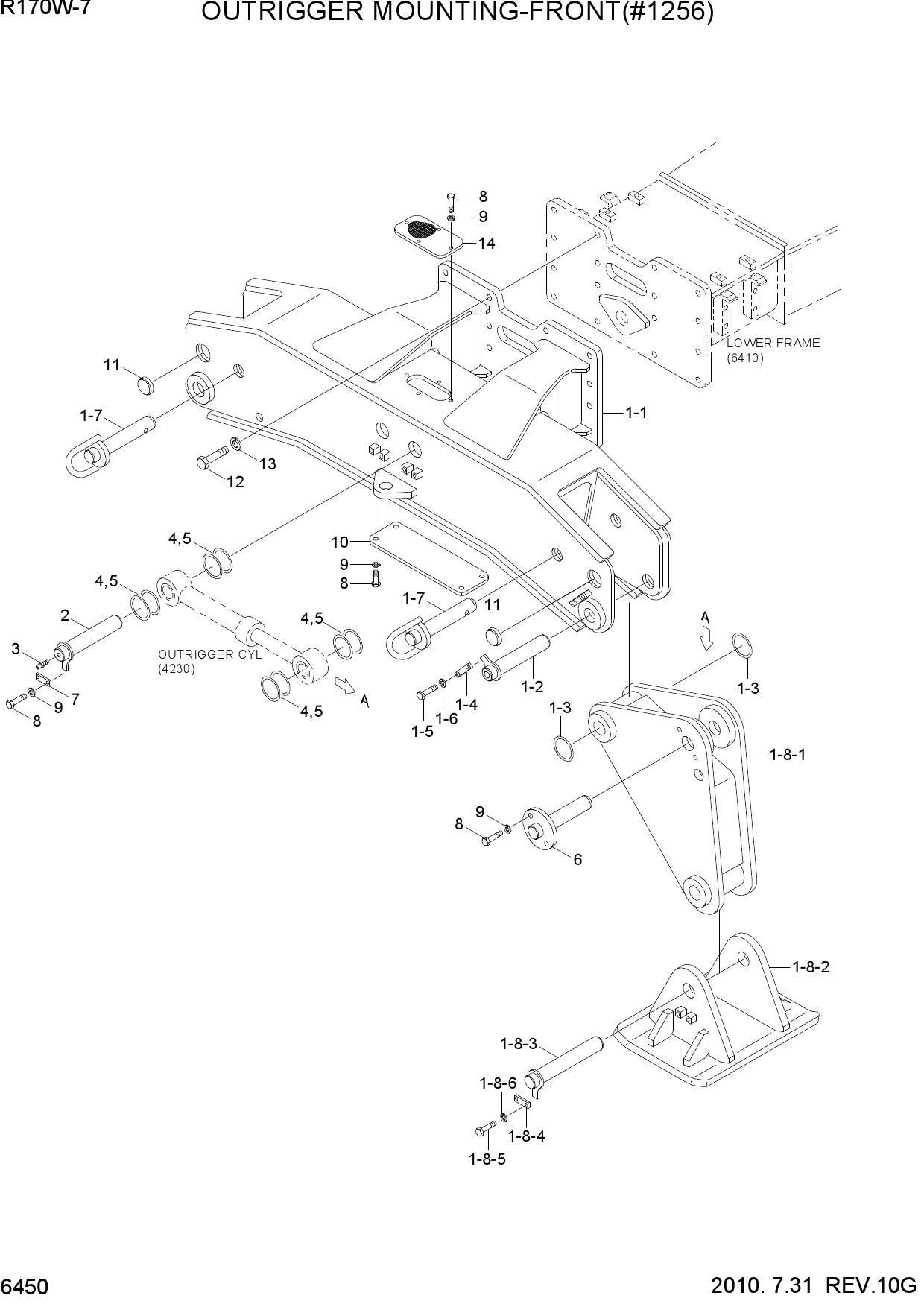

Запчасти для колесных экскаваторов Hyundai R170W-7 OUTRIGGER MOUNTING-FRONT(NEW)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 53N5-53000 | OUTRIGGER ASSY-FRONT | |
| 1-1 | 53N5-53010 | FRAME-FR OUTRIGGER | |
| 1-2 | 53N5-52500 | PIN-LEG | |
| 1-3 | S391-070120 | SHIM-ROUND(1.0T) | |
| N1-4 | 51EK-52560BG | PLATE-LOCK | |
| 1-5 | S017-120256 | BOLT-HEX | |
| 1-6 | S411-120006 | WASHER-SPRING | |
| 1-7 | 51EK-52542BG | PIN-SAFETY | |
| 1-8 | 53N5-53200 | LEG & FOOT ASSY | |
| 1-8-1 | 53N5-52200 | LEG ASSY | |
| 1-8-2 | 53N5-52300 | FOOT WA | |
| 1-8-3 | 53N5-52510 | PIN-FOOT | |
| 1-8-4 | 51EK-52560BG | PLATE-LOCK | |
| 1-8-5 | S017-120256 | BOLT-HEX | |
| 1-8-6 | S411-120006 | WASHER-SPRING | |
| 2 | 53N5-52520 | PIN-CYL HEAD | |
| 3 | S651-810002 | NIPPLE-GREASE | |
| 4 | S390-075130 | SHIM-ROUND(0.5T) | |
| 5 | S391-075130 | SHIM-ROUND(1.0T) | |
| 6 | 53N5-52530 | PIN-CYL ROD | |
| 7 | 51EK-52560BG | PLATE-LOCK | |
| 8 | S017-120256 | BOLT-HEX | |
| 9 | S411-120006 | WASHER-SPRING | |
| 10 | 53N5-52570 | PLATE-COVER | |
| 11 | 51EK-52990 | REFLECTOR-REAR | |
| 12 | S018-30065D | BOLT-HEX | |
| 13 | S441-300006 | WASHER-HARDENED | |
| 14 | 53N5-27120 | COVER |
