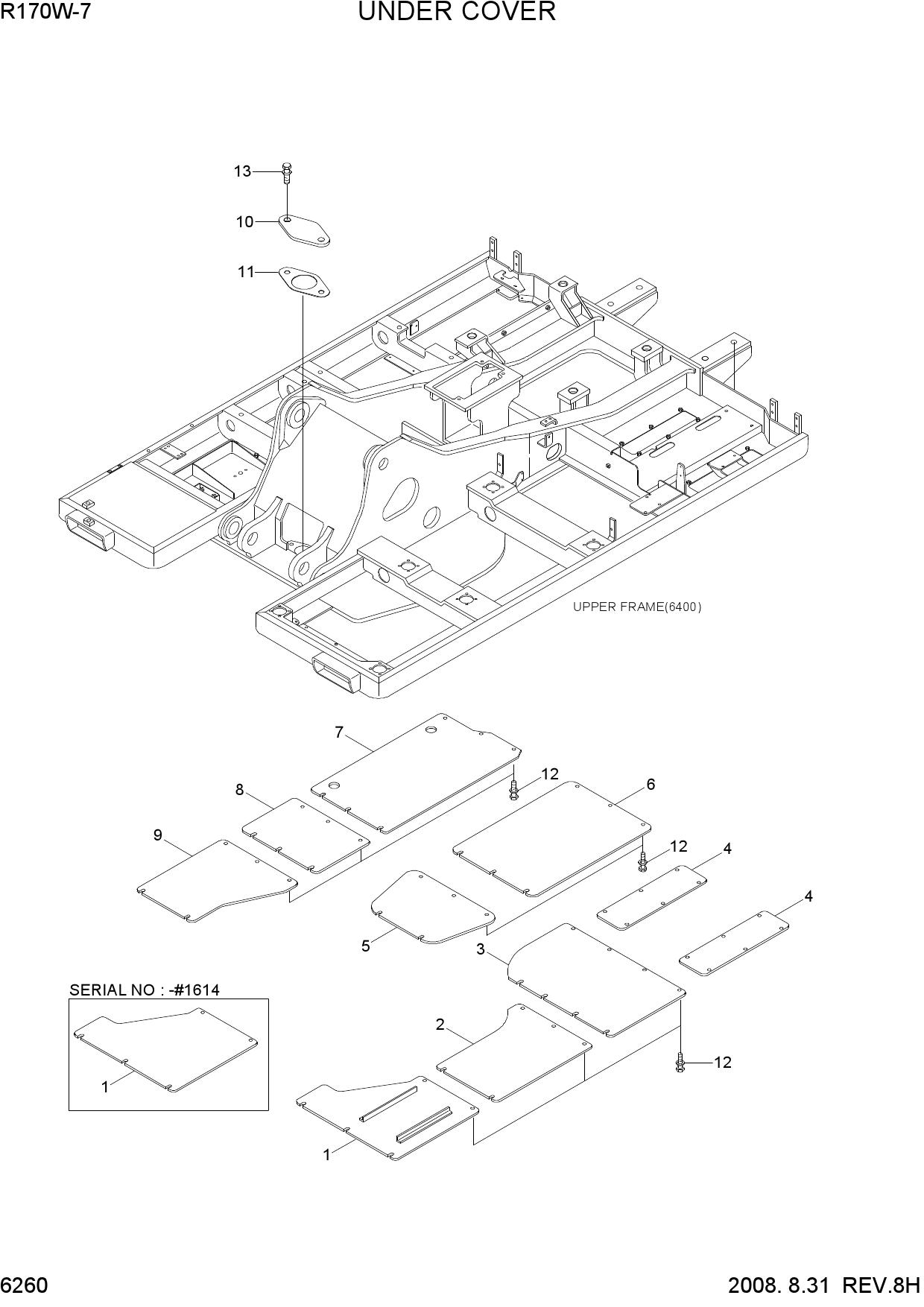

Запчасти для колесных экскаваторов Hyundai R170W-7 UNDER COVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 41N5-10010 | UNDER COVER-CAB(A) | |
| 1 | 41N5-10010BG | UNDER COVER-CAB(A) | |
| 1 | 43N5-36140 | UNDER COVER-CAB(A) | |
| 2 | 41N5-10020 | UNDER COVER-CAB(B) | |
| 2 | 41N5-10020BG | UNDER COVER-CAB(B) | |
| 3 | 41N5-10030 | UNDER COVER-CAB(C) | |
| 3 | 41N5-10030BG | UNDER COVER-CAB(C) | |
| 4 | 41N8-15280 | UNDER COVER-RAD | |
| 4 | 41N8-15280BG | UNDER COVER-RADIATOR | |
| 5 | 41N5-10050 | UNDER COVER-MCV | |
| 6 | 41N5-10061 | UNDER COVER-ENG. | |
| 6 | 41N5-10061BG | UNDER COVER-ENGINE | |
| 7 | 41N5-10071 | UNDER COVER-PUMP | |
| 7 | 41N5-10071BG | UNDER COVER-PUMP | |
| 7 | 43N5-36070 | UNDER COVER-PUMP | |
| 8 | 41N5-10080 | UNDER COVER-H/TANK | |
| 9 | 41N5-10090 | UNDER COVER-F/TANK | |
| 9 | 41N5-10090BG | UNDER COVER-F/TANK | |
| 10 | 41N6-10100 | COVER | |
| 11 | 41E9-1306 | SEAL | |
| 12 | S037-102566 | BOLT-W/WASHER | |
| 13 | S037-102056 | BOLT-W/WASHER |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R170W-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
