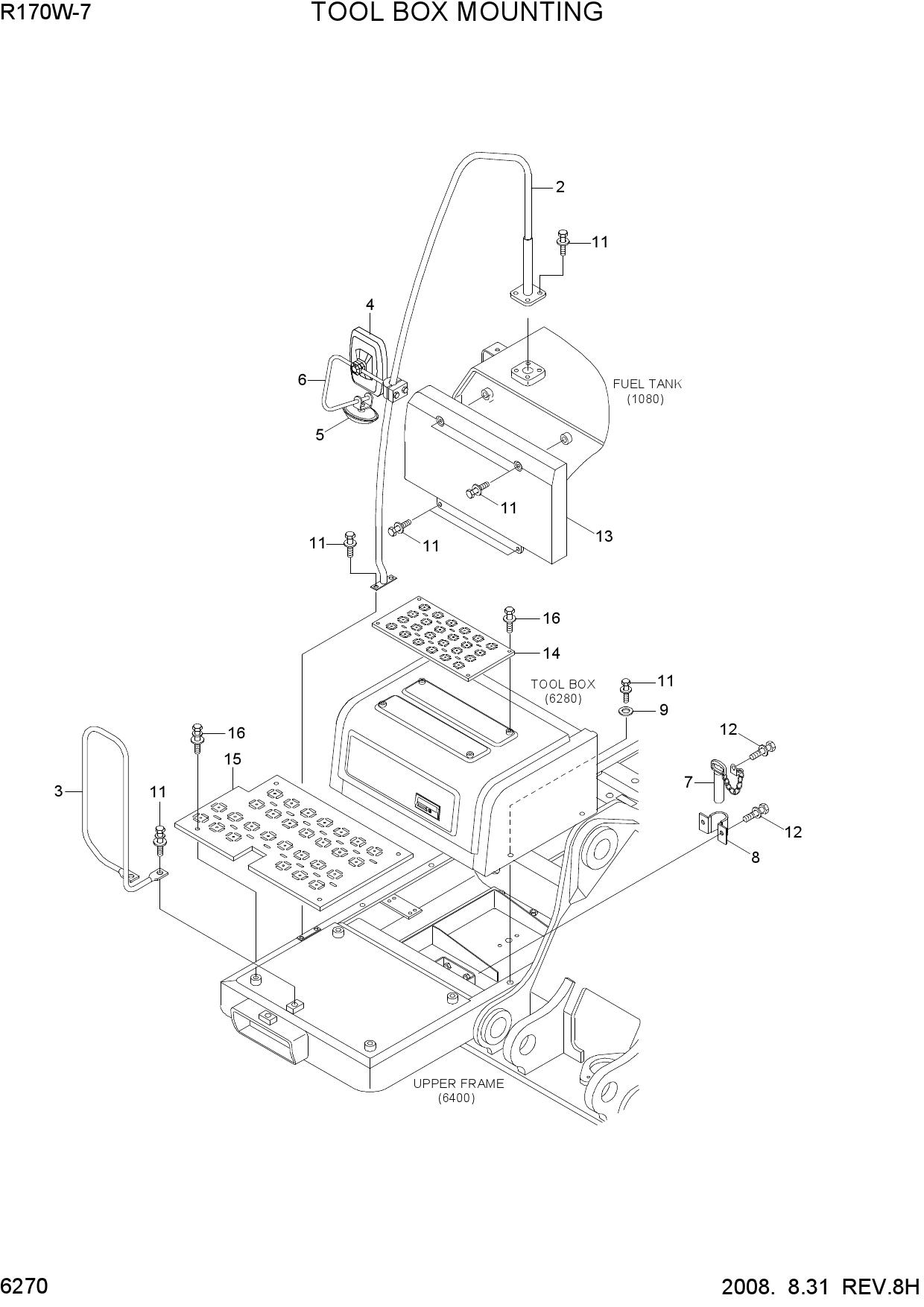

Запчасти для колесных экскаваторов Hyundai R170W-7 TOOL BOX MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 71N4-42400 | PIPE WA | |
| 2 | 71N4-42400BG | PIPE WA | |
| 3 | 71N4-42500 | PIPE WA | |
| 3 | 71N4-42500BG | PIPE WA | |
| 4 | 71N8-47100 | MIRROR | |
| 4 | 71N8-47101 | MIRROR | |
| 5 | 71E4-3004 | MIRROR | |
| 5 | 71N4-46100 | MIRROR | |
| 6 | 71N4-42900 | STAY WA-MIRROR | |
| 6 | 71N4-42900BG | STAY WA-MIRROR | |
| 7 | 71N4-42710 | PIN-SWING LOCK | |
| 8 | 71N4-42800 | CLAMP ASSY-SW LOCK PIN | |
| 9 | S390-015040 | SHIM(0.5T)-ROUND | |
| 11 | S037-122052 | BOLT-W/WASHER | |
| 12 | S037-102552 | BOLT-W/WASHER | |
| 13 | 71N5-44100 | COVER-FUEL TANK | |
| 14 | 74N4-47100 | FOOT BOARD WA(A) | |
| 14 | 74N5-47100 | FOOT BOARD WA(A) | |
| 15 | 71N5-47200 | FOOT BOARD WA(C) | |
| 15 | 71N5-47200BG | FOOT BOARD WA(C) | |
| 16 | S037-121552 | BOLT-W/WASHER |
