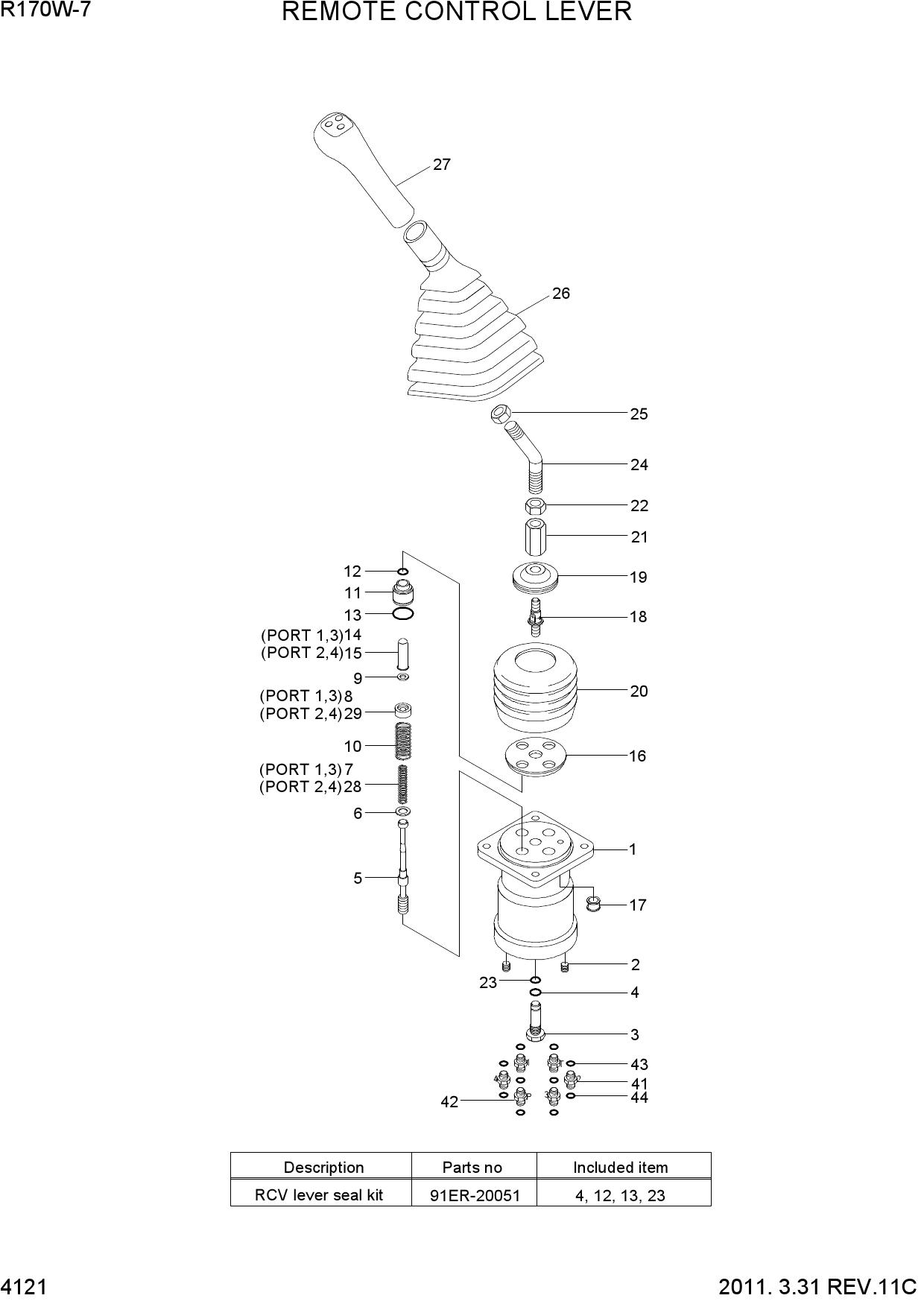

Запчасти для колесных экскаваторов Hyundai R170W-7 REMOTE CONTROL LEVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N6-26200 | RCV LEVER SUB ASSY-LH | |
| * | 31N6-26210 | RCV LEVER SUB ASSY-RH | |
| *-1 | 31N6-26300 | RCV LEVER ASSY-LH | |
| *-1 | 31N6-26310 | RCV LEVER ASSY-RH | |
| 1 | XKAY-00077 | CASE | |
| 2 | XKAY-00065 | PLUG | |
| 3 | XKAY-00064 | PLUG | |
| K4 | XKAY-00063 | O-RING | |
| *-2 | XKAY-00802 | SPOOL KIT(1,3) | |
| *-2 | XKAY-00803 | SPOOL KIT(2,4) | |
| 5 | XKAY-00062 | SPOOL | |
| 6 | XKAY-00061 | SHIM | |
| 7 | XKAY-00804 | SPRING(1,3) | |
| 8 | XKAY-00436 | SEAT-SPRING(1,3) | |
| 28 | XKAY-00814 | SPRING(2,4) | |
| 29 | XKAY-00059 | SEAT-SPRING | |
| 9 | XKAY-00058 | STOPPER | |
| 10 | XKAY-00078 | SPRING | |
| *-3 | XKAY-00805 | PLUG KIT(1,3) | |
| *-3 | XKAY-00806 | PLUG KIT(2,4) | |
| 11 | XKAY-00784 | PLUG | |
| K12 | XKAY-00611 | SEAL-ROD | |
| K13 | XKAY-00054 | O-RING | |
| 14 | XKAY-00052 | ROD-PUSH(1,3) | |
| 15 | XKAY-00439 | ROD-PUSH | |
| 16 | XKAY-00075 | PLATE | |
| 17 | XKAY-00074 | BUSHING | |
| 18 | XKAY-00049 | JOINT ASSY | |
| 19 | XKAY-00612 | SWASH PLATE | |
| 20 | XKAY-00072 | BOOT | |
| 21 | XKAY-00047 | NUT-HEX | |
| *-4 | XKAY-00807 | HANDLE KIT(RH) | |
| *-4 | XKAY-00808 | HANDLE KIT(LH) | |
| 22 | XKAY-00046 | NUT | |
| K23 | XKAY-00045 | O-RING | |
| N24 | XKAY-00810 | BAR-HANDLE | |
| 25 | XKAY-00811 | NUT | |
| 26 | XKAY-00041 | BOOT | |
| 27 | XKAY-00812 | HANDLE ASSY(RH) | |
| 27 | XKAY-00813 | HANDLE ASSY(LH) | |
| 41 | X500-110001 | CONNECTOR-ORFS | |
| 42 | 31N6-25060 | FILTER-LAST GUARD | |
| 43 | S631-011004 | O-RING | |
| 44 | S621-011001 | O-RING | |
| K | 91ER-20051 | SEAL KIT |
