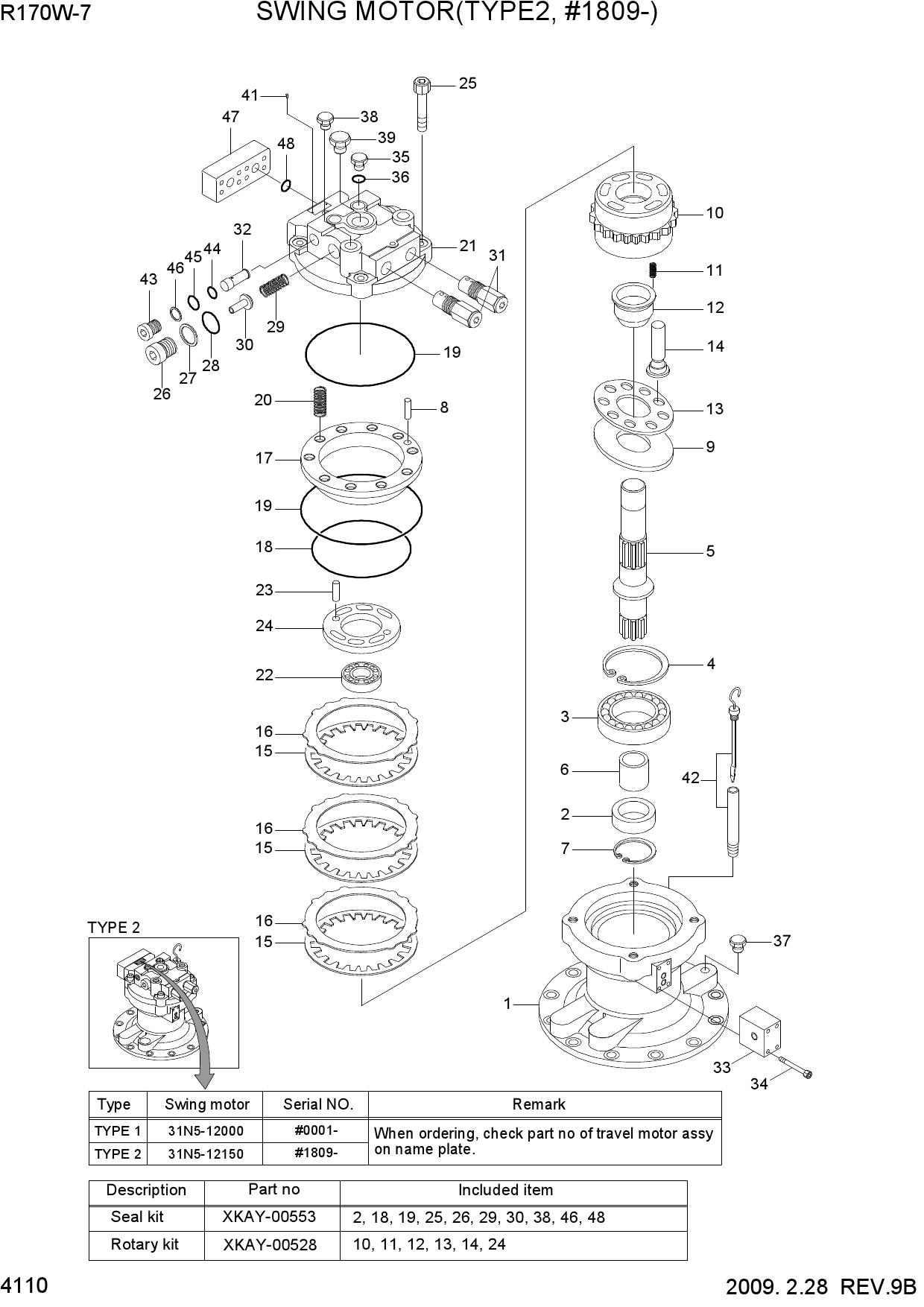

Запчасти для колесных экскаваторов Hyundai R170W-7 SWING MOTOR(TYPE 2, #1809-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-1 | 31N5-12130 | SWING MOTOR UNIT | |
| 1 | XKAY-01394 | BODY | |
| K2 | XKAY-00521 | SEAL-OIL | |
| 3 | XKAY-00522 | BEARING-ROLLER | |
| 4 | XKAY-00523 | RING-SNAP | |
| 5 | XKAY-00524 | SHAFT | |
| 6 | XKAY-00525 | BUSHING | |
| 7 | XKAY-00526 | RING-STOP | |
| 8 | XKAY-00625 | PIN | |
| 9 | XKAY-00527 | PLATE-SHOE | |
| *-R | XKAY-00528 | ROTARY KIT | |
| 1-A | XKAY-00529 | CYLINDER BLOCK KIT | |
| 10 | XKAY-00633 | BLOCK-CYLINDER | |
| 11 | XKAY-00531 | SPRING | |
| 24 | XKAY-00544 | PLATE-VALVE | |
| 1-B | XKAY-00532 | RETAINER KIT | |
| 12 | XKAY-00533 | GUIDE-BALL | |
| 13 | XKAY-00534 | PLATE-SET | |
| 1-C | XKAY-00534 | PLATE-SET | |
| NK14 | XKAY-00536 | PISTON ASSY | |
| 15 | XKAY-00537 | PLATE-FRICTION | |
| 16 | XKAY-00538 | PLATE | |
| 17 | XKAY-00632 | PISTON-BRAKE | |
| K18 | XKAY-00468 | O-RING | |
| K19 | XKAY-00540 | O-RING | |
| 20 | XKAY-00541 | SPRING | |
| 21 | XKAY-00630 | COVER-REAR | |
| 22 | XKAY-00543 | BEARING-NEEDLE | |
| 23 | XKAY-00382 | PIN | |
| K25 | XKAY-00546 | BOLT-WRENCH | |
| K26 | XKAY-00309 | PLUG | |
| 27 | XKAY-00141 | RING-BACK UP | |
| 28 | XKAY-00310 | O-RING | |
| K29 | XKAY-00311 | SPRING | |
| K30 | XKAY-00312 | CHECK | |
| 31 | XKAY-00313 | RELIEF VALVE ASSY | |
| 32 | XKAY-00314 | VLV ASSY-REACTIONLESS | |
| 33 | XKAY-00315 | TIME DELAY VALVE ASSY | |
| 34 | XKAY-00149 | BOLT-WRENCH | |
| 35 | XKAY-00150 | PLUG | |
| 36 | XKAY-00151 | O-RING | |
| 37 | XKAY-00140 | PLUG | |
| K38 | XKAY-00975 | PLUG | |
| 39 | XKAY-00548 | PLUG | |
| 41 | XKAY-00277 | RIVET | |
| 42 | XKAY-01986 | GAUGE-LEVEL | |
| 42-1 | XKAY-01988 | PLUG | |
| 43 | XKAY-00322 | PLUG | |
| 44 | XKAY-00247 | O-RING | |
| 45 | XKAY-00324 | O-RING | |
| K46 | XKAY-00322 | PLUG | |
| 47 | XKAY-00551 | FLANGE | |
| K48 | XKAY-00552 | O-RING | |
| K | XKAY-00553 | SEAL KIT |
